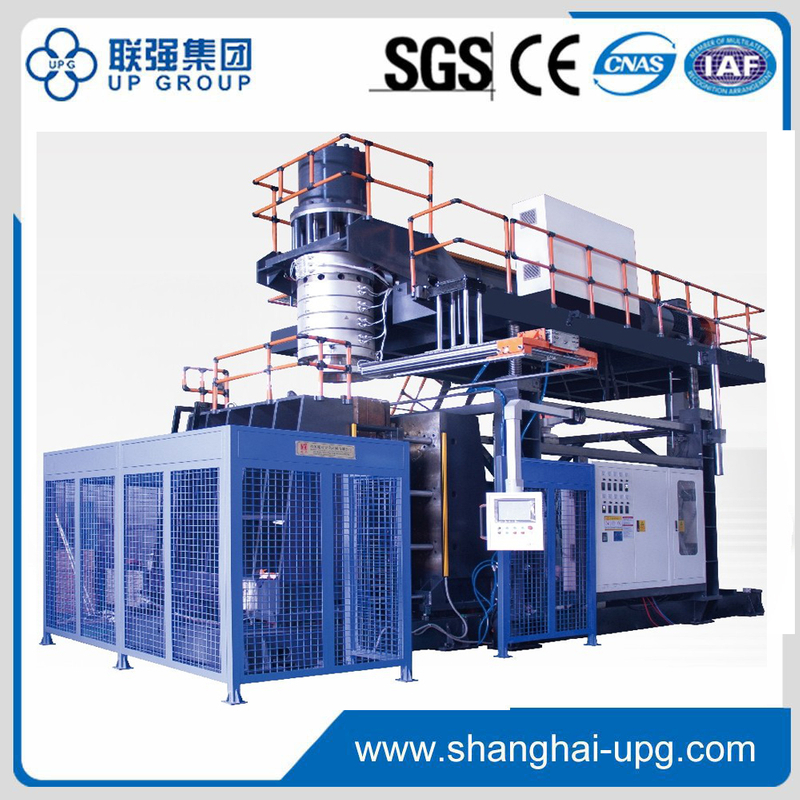

LQ-500L Fully Automatic 500L Blow Molding Machine

Share to:

LQ-500L Fully Automatic 500L Blow Molding Machine

Fully automatic energy saving blow molding machine, with accumulator die head capacity 35L; Suitable to produce volume up to 500L,specially water bottle,oil tank,auto parts... Unique 4cylinderclampingsystem,stable structure, strong clamping force, stronger final products. Adobe good quality linear guide rail,faster moving speed and lower energy cost,longer working period.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-500L
Brand:
LQ

Technical Characteristics:

Fully automatic energy saving blow molding machine, with accumulator die head capacity 35L;

Suitable to produce volume up to 500L,specially water bottle,oil tank,auto parts...

Unique 4cylinderclampingsystem,stable structure, strong clamping force,

stronger final products.

Adobe good quality linear guide rail,faster moving speed and lower energy cost,longer working period.

LQ-Injection Blow Molding Machine

Main Parameters	UNIT	LQBA-500L
Max.Product Volume	L	500
Suitable Raw Material		PE
Dry Cycle	PCS/H	220
Screw Diameter	mm	120
Screw L/D Ratio	L/D	28
Screw Drive power	KW	110/132
Screw Heating Power	KW	36
Screw Heating Zone	Zone	6
HDPE Output	Kg/h	350
Oil Pump Power	KW	37
Clamping Force	Kn	1200
Mold Open &Close Stroke	mm	700-1700
Mold Template Size	WxH(mm)	1300x1800
Max.Mold Size	WXH(mm)	1100x1800
Die Head Type	Accumulator die head
Accumulator Capacity	L	35
Max.die diameter	mm	650
Die head heating power	KW	46
Die head heating zone	ZONE	4
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	2.5
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	3000
Machine dimension	M	(LXWXH) 8.8X3.6X5.6
Machine	Ton	45

Main Parameters	UNIT	LQBA-500L
Max.Product Volume	L	500
Suitable Raw Material		PE
Dry Cycle	PCS/H	220
Screw Diameter	mm	120
Screw L/D Ratio	L/D	28
Screw Drive power	KW	110/132
Screw Heating Power	KW	36
Screw Heating Zone	Zone	6
HDPE Output	Kg/h	350
Oil Pump Power	KW	37
Clamping Force	Kn	1200
Mold Open &Close Stroke	mm	700-1700
Mold Template Size	WxH(mm)	1300x1800
Max.Mold Size	WXH(mm)	1100x1800
Die Head Type	Accumulator die head
Accumulator Capacity	L	35
Max.die diameter	mm	650
Die head heating power	KW	46
Die head heating zone	ZONE	4
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	2.5
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	3000
Machine dimension	M	(LXWXH) 8.8X3.6X5.6
Machine	Ton	45
