LQ-MD 3200 Roll to Roll heat transfer

Availability:
Quantity:

PDF Export

  • LQ-MD 3200RTR

  • UPG

  • LQ-MD 3200RTR

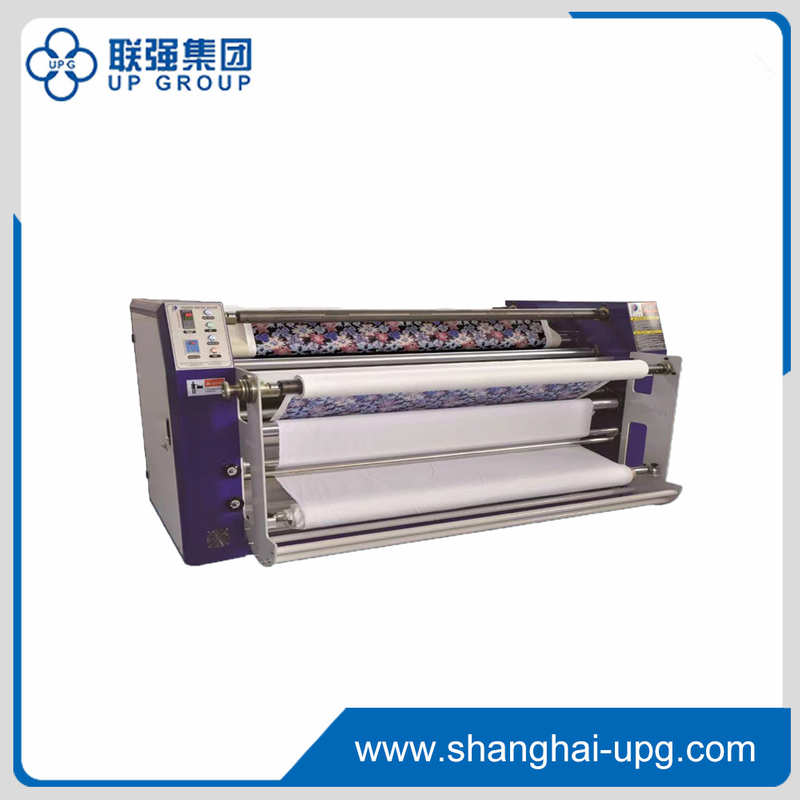

    This LQ-MD 3200RTR is designed for continuous roll to roll heat transfer. The combination of an adjustable belt tension with an electrical, thermo-oil heated system guarantees a very uniform and accurate temperature. Accurate control of temperature results in the best quality transfer. This model is easy to operate and saves labour, these advantages make this model perfect for the advertising and textile market.


Mod.

LQ-MD 3200RTR

Drum Diameter

420mm

Working Width

3200mm

Temperature

240℃

Initial Power

36kw, 3-Phase, 4-wire system, 380V/ 50Hz

Net weight

2300kg

Printing Width

1200-3600mm
