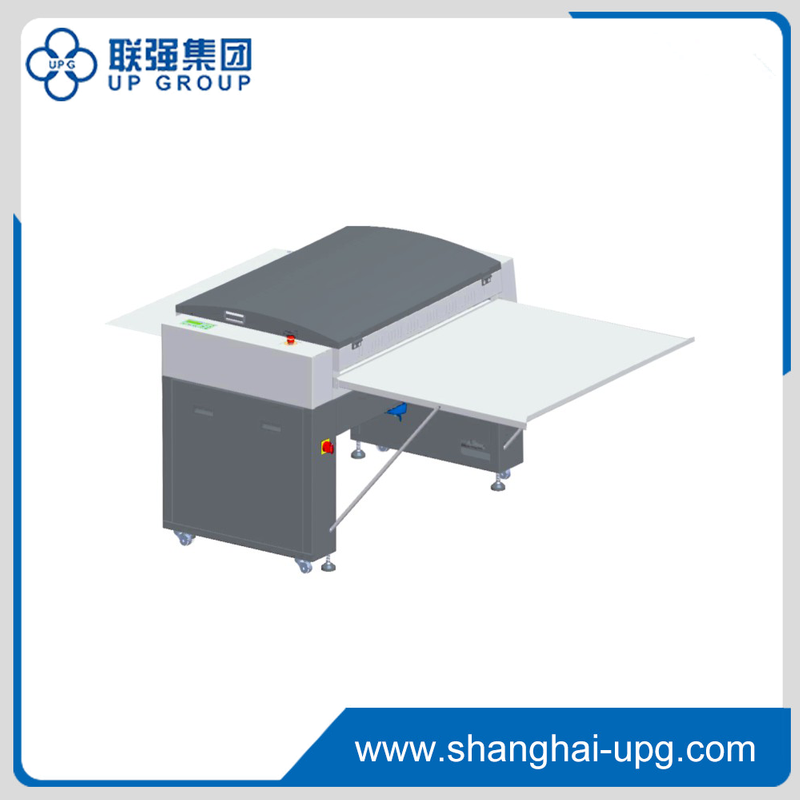

LQ Series Chemical-Free (Low) Processor

Availability:
Quantity:

PDF Export

  • UPG

Full automate process control, suitable for all types of 0.15-0.40mm plates.

Use digital processing method, the stroke speed and brush speed can both achieve continuously variable transmission.
The structure is simple and easy to disassemble, dual brush design and cleaning better.
Use automatic rubber roller wetting function to avoid dry while long time standby.
Use automatic cleaning glue roller to avoid dry while long time standby.
Use automatic cleaning glue roller to avoid glue solidification while long time standby.
The transmission parts are with super wear-resistant materials, ensuring continuous use for three years without replacing any parts.
Cleaning water cycle processing system, reduce 90% of the waste water discharge.


ModelLQ880ALQ1100ALQ1250ALQ1450A
Max. Plate Width880mm1150mm1300mm1500mm
Min. Plate Width300mm
Plate Thickness0.15-0.40mm
Dry temperature30-60
Dev-speed20-60S
Brush speed20-150rpm
Power supplyAC 220V, 6A, 1PH, 4KW
Weight160kg200kg220kg250kg
