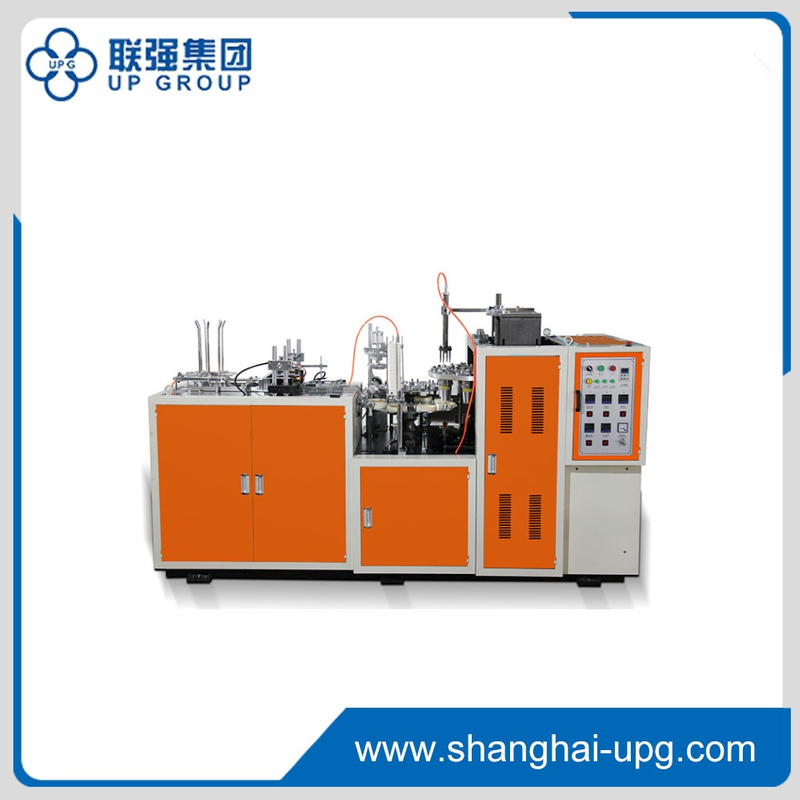

LQ-ZB-D Automatic Paper Cup Forming Machine

ZB-D paper cup machine is improved based on the normal chain driving type.
Availability:
Quantity:

PDF Export

  • LQ-ZB-D

  • UPG

This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.
If you need double pe coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.

Type:

LQZB-D

Cup size:

2.5-12oz(if the cup is more than 12oz the   machine designed more lager )

Suitable paper material:

150-380g/m2(single PE-coated paper)

Capacity:

50-70pcs/min

Power source::

380V 50HZ

Total power:

4KW

Weight:

2000kgs

Package size:

2600 x 1350 x 1700 mm

Working Air Source:

Air pressure 0.4Mpa;Air out-put:0.6m3/min
