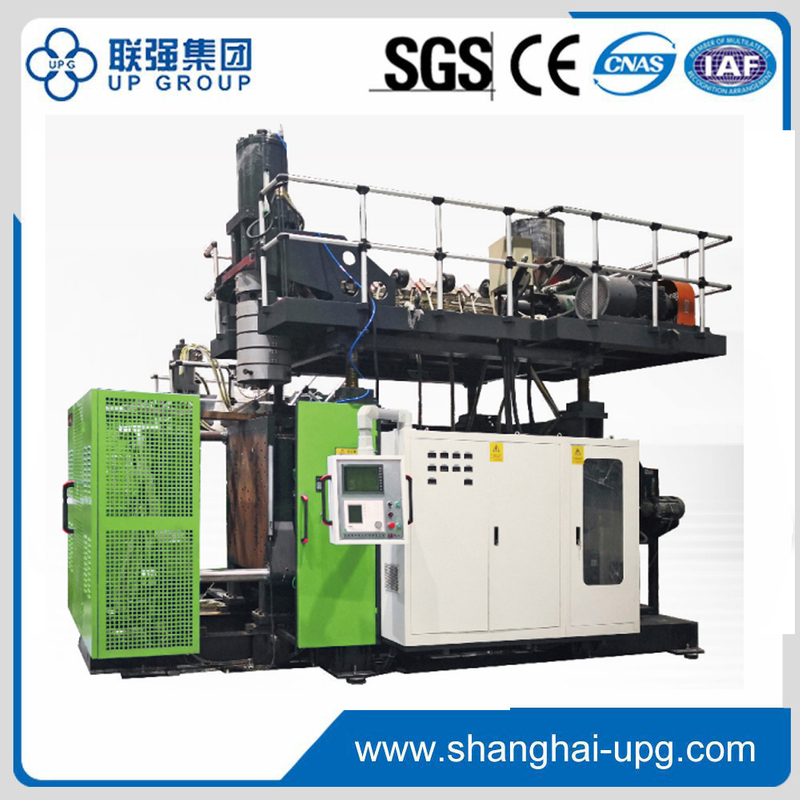

LQ120-220L Fully Automatic 220L Blow Moulding Machine

Share to:

LQ120-220L Fully Automatic 220L Blow Moulding Machine

Fully automatic energy saving blow molding machine,with accumulator die head capacity 25L; Suitable to produce volume up to 220L,specially water bottle,oil tank,auto parts... Unique3 cylinder+2 bar clamping system, stable structure, balanced force distribution,longer working period; Adobe good quality linear guide rail,faster moving speed and lower energy cost, higher output.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ120-220L
Brand:
LQ

Technical Characteristics:

Fully automatic energy saving blow molding machine,with accumulator die head capacity 25L;

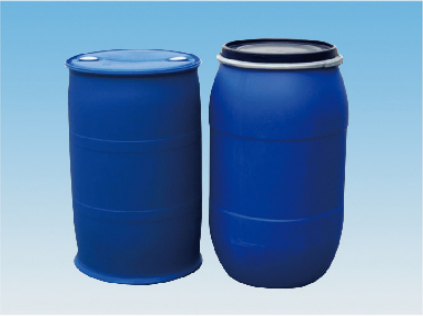

Suitable to produce volume up to 220L,specially water bottle,oil tank,auto parts...

Unique3 cylinder+2 bar clamping system, stable structure, balanced force distribution,longer working period;

Adobe good quality linear guide rail,faster moving speed and lower energy cost, higher output.

LQ-Injection Blow Molding Machine

Main Parameters	UNIT	LQBA120-220L
Max.Product Volume	L	220
Suitable Raw Material		PE PP
Dry Cycle	PCS/H	250
Screw Diameter	mm	120
Screw L/D Ratio	L/D	28
Screw Drive power	KW	110/132
Screw Heating Power	KW	36
Screw Heating Zone	Zone	6
HDPE Output	Kg/h	350
Oil Pump Power	KW	30
Clamping Force	Kn	750
Mold Open &Close Stroke	mm	700-1700
Mold Template Size	WxH(mm)	1300x1400
Max.Mold Size	WXH(mm)	1300x1400
Die Head Type	Accumulator die head
Accumulator Capacity	L	25
Max.die diameter	mm	580
Die head heating power	KW	30
Die head heating zone	ZONE	6
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	1.8
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	220
Machine dimension	M	(LXWXH) 6.0X3.0X4.9
Machine	Ton	30

Main Parameters	UNIT	LQBA120-220L
Max.Product Volume	L	220
Suitable Raw Material		PE PP
Dry Cycle	PCS/H	250
Screw Diameter	mm	120
Screw L/D Ratio	L/D	28
Screw Drive power	KW	110/132
Screw Heating Power	KW	36
Screw Heating Zone	Zone	6
HDPE Output	Kg/h	350
Oil Pump Power	KW	30
Clamping Force	Kn	750
Mold Open &Close Stroke	mm	700-1700
Mold Template Size	WxH(mm)	1300x1400
Max.Mold Size	WXH(mm)	1300x1400
Die Head Type	Accumulator die head
Accumulator Capacity	L	25
Max.die diameter	mm	580
Die head heating power	KW	30
Die head heating zone	ZONE	6
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	1.8
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	220
Machine dimension	M	(LXWXH) 6.0X3.0X4.9
Machine	Ton	30
