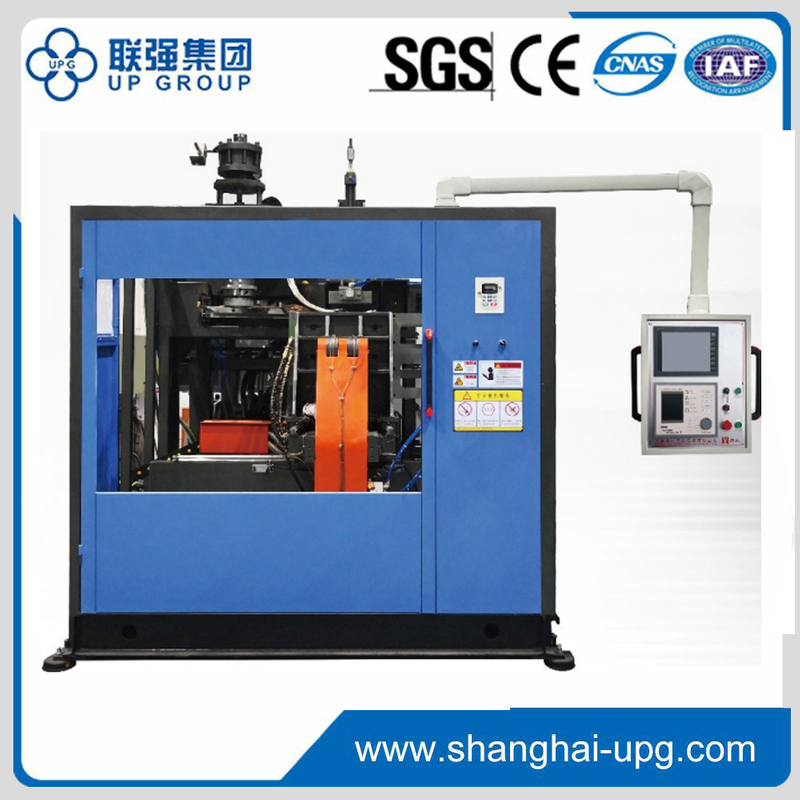

LQH82PC-25L Fully Automatic 25L Blow Molding Machine

Share to:

LQH82PC-25L Fully Automatic 25L Blow Molding Machine

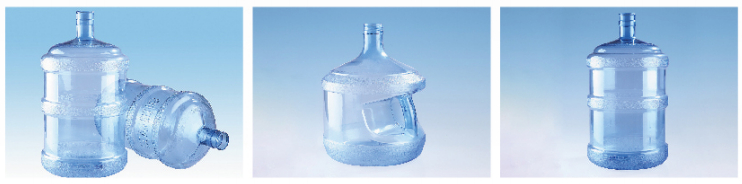

This machine model is only for PC material bottle,suitable to produce PC bottle under 25L; High production, output for 5 GALLON is 70-80pcs/h. Fully automatic design, auto de-flashing unit, online modify mouth, Robot pick ready bottle to conveyor belt. Single station, single die head with crank-arm clamping system, to provide enough clamping force.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQH82PC-25L
Brand:
LQ

Technical Characteristics:

This machine model is only for PC material bottle,suitable to produce PC bottle under 25L;

High production, output for 5 GALLON is 70-80pcs/h.

Fully automatic design, auto de-flashing unit, online modify mouth, Robot pick ready bottle to conveyor belt.

Single station, single die head with crank-arm clamping system, to provide

enough clamping force.

LQ-Injection Blow Molding Machine

Main Parameters	UNIT	LQYJH90-25L
Max.Product Volume	L	30
Station		Single
Suitable Raw Material		PC
Dry Cycle	PCS/H	650
Screw Diameter	mm	82
Screw L/D Ratio	L/D	25
Screw Heating Power	KW	21
Screw Heating Zone	Zone	7
HDPE Output	Kg/h	100
Oil Pump Power	KW	45
Clamping Force	Kn	180
Mold Open & Close Stroke	mm	420-920
Mold Moving Stroke	mm	750
Mold Template Size	WXH(mm)	620x680
Max.Mold Size	WXH(mm)	600x680
Die Head Type	Injection die head
Accumulator Capacity	L	1.5
Max. Die Diameter	mm	150
Die Head Heating Power	kw	4.5
Die Head Heating Zone	Zone	4
Blowing Pressure	Mpa	1
Air Consumption	M3/min	1
Cooling Water Pressure	mpa	0.3
Water Consumption	L/Min	130
Machine Dimension	LXWXH(m)	5.0x2.4x3.8
Machine	TON	11.6

Main Parameters	UNIT	LQYJH90-25L
Max.Product Volume	L	30
Station		Single
Suitable Raw Material		PC
Dry Cycle	PCS/H	650
Screw Diameter	mm	82
Screw L/D Ratio	L/D	25
Screw Heating Power	KW	21
Screw Heating Zone	Zone	7
HDPE Output	Kg/h	100
Oil Pump Power	KW	45
Clamping Force	Kn	180
Mold Open & Close Stroke	mm	420-920
Mold Moving Stroke	mm	750
Mold Template Size	WXH(mm)	620x680
Max.Mold Size	WXH(mm)	600x680
Die Head Type	Injection die head
Accumulator Capacity	L	1.5
Max. Die Diameter	mm	150
Die Head Heating Power	kw	4.5
Die Head Heating Zone	Zone	4
Blowing Pressure	Mpa	1
Air Consumption	M3/min	1
Cooling Water Pressure	mpa	0.3
Water Consumption	L/Min	130
Machine Dimension	LXWXH(m)	5.0x2.4x3.8
Machine	TON	11.6
