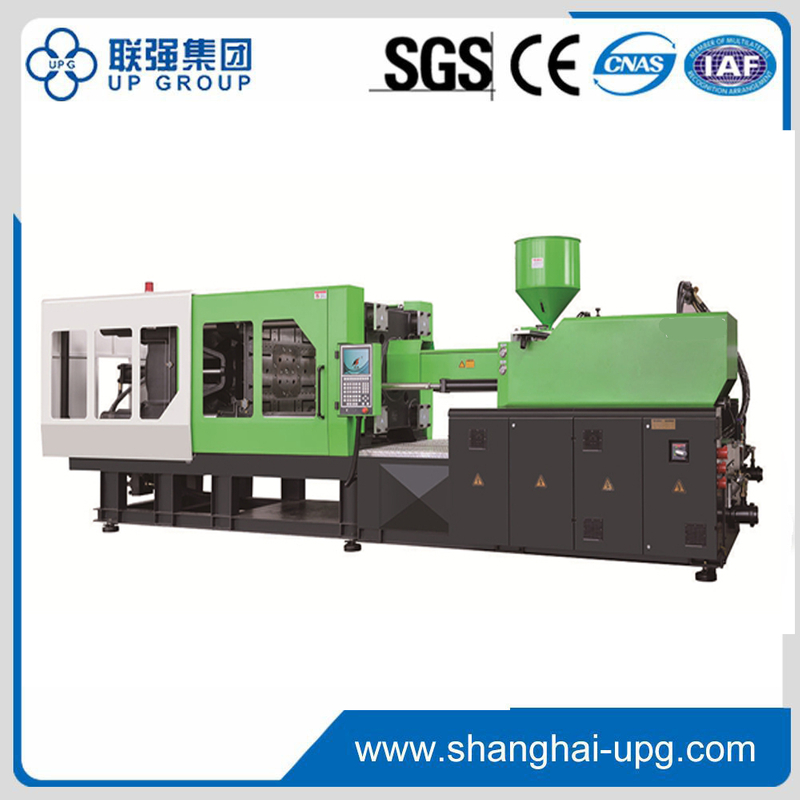

LQS
UPG
Application
For all kind of PET preform and PET plastic parts
Features
Apply PET specialized injection unit, screw L/D ratio 24:1, have excellent plasticizing capacity, suitable for various kinds of PET products;
Increase hydraulic ejection force, much suitable for deep cavity molding;
Two injection unit for selection.
Application
For all kind of PET preform and PET plastic parts
Features
Apply PET specialized injection unit, screw L/D ratio 24:1, have excellent plasticizing capacity, suitable for various kinds of PET products;
Increase hydraulic ejection force, much suitable for deep cavity molding;
Two injection unit for selection.
Machine model | LQS1500PET | LQS1700PET | LQS2200PET | ||||
Injection Unit | A | B | A | B | A | B | |
Screw diameter | mm | 45 | 50 | 50 | 55 | 55 | 64 |
Screw L/D ratio | L/D | 24 | 24 | 24 | 24 | 24 | 24 |
Shot volume | cm3 | 318 | 441 | 441 | 593 | 593 | 865 |
Injection weight(PS) | g | 365 | 507 | 507 | 681 | 681 | 993 |
Oz | 13 | 18 | 18 | 24 | 24 | 30.8 | |
Plasticizing | g/s | 34 | 41 | 41 | 48 | 48 | 77 |
Injection rate | g/s | 190 | 250 | 250 | 350 | 350 | 400 |
Injection pressure | Mpa | 159 | 152 | 152 | 139 | 139 | 143 |
Screw speed | rpm | 200 | 180 | 180 | 190 | 190 | 180 |
Clamping Unit | |||||||
Clamping force | KN | 1500 | 1700 | 2200 | |||
Open stroke | mm | 400 | 435 | 485 | |||
Space between tie-bars（WxH） | mm | 430X430 | 480X480 | 530X530 | |||
Max. Mold height | mm | 480 | 535 | 550 | |||
Min. Mold height | mm | 160 | 180 | 200 | |||
Ejector stroke | mm | 130 | 145 | 142 | |||
Ejector force | KN | 53 | 70 | 90 | |||
Ejection number | PC | 5 | 5 | 9 | |||
Mould Align diameter | mm | 125 | 125 | 160 | |||
Others | |||||||
Max.Pump pressure | Mpa | 16 | 16 | 16 | |||
Servo motor power | KW | 18.5 | 23 | 23 | 23 | 23 | 31 |
Heater power | KW | 13 | 15 | 15 | 17 | 17 | 19.5 |
Machine dimension(LXWXH) | m | 4.5X1.35X1.9 | 5.13X1.45X2.12 | 5.5X1.5X2.2 | |||
Oiltank capacity | L | 250 | 300 | 320 | |||
Machine Weight | ton | 4 | 4.5 | 6 | 6.5 | 7 | 7.5 |
Machine model | LQS2700PET | LQS3500PET | LQS4100PET | LQS4800PET | |||||
Injection Unit | A | B | A | B | A | B | A | B | |
Screw diameter | mm | 64 | 75 | 75 | 80 | 80 | 85 | 85 | 90 |
Screw L/D ratio | L/D | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Shot volume | cm3 | 865 | 1524 | 1524 | 1809 | 1809 | 2212 | 2212 | 2800 |
Injection weight(PS) | g | 993 | 1752 | 1752 | 2080 | 2080 | 2543 | 2543 | 3220 |
Oz | 30.8 | 62 | 62 | 73.5 | 73.5 | 89.5 | 89.5 | 113 | |
Plasticizing | g/s | 77 | 95 | 95 | 100 | 100 | 105 | 105 | 110 |
Injection rate | g/s | 400 | 527 | 527 | 600 | 600 | 650 | 650 | 700 |
Injection pressure | Mpa | 143 | 146 | 146 | 152 | 152 | 148 | 148 | 145 |
Screw speed | rpm | 180 | 160 | 160 | 150 | 150 | 150 | 150 | 150 |
Clamping Unit | |||||||||
Clamping force | KN | 2700 | 3500 | 4100 | 4800 | ||||
Open stroke | mm | 553 | 650 | 715 | 780 | ||||
Space between tie-bars（WxH） | mm | 580X580 | 720X670 | 770X720 | 780X780 | ||||
Max. Mold height | mm | 580 | 740 | 740 | 800 | ||||
Min. Mold height | mm | 220 | 250 | 250 | 300 | ||||
Ejector stroke | mm | 150 | 160 | 160 | 200 | ||||
Ejector force | KN | 90 | 125 | 125 | 125 | ||||
Ejection number | PC | 9 | 13 | 13 | 13 | ||||
Mould Align diameter | mm | 160 | 160 | 160 | 160 | ||||
Others | |||||||||
Max.Pump pressure | Mpa | 16 | 16 | 16 | 16 | ||||
Servo motor power | KW | 31 | 45 | 45 | 55 | 55 | 30+37 | 30+37 | 30+37 |
Heater power | KW | 19.5 | 25 | 25 | 28 | 28 | 35 | 35 | 39 |
Machine dimension(LXWXH) | m | 5.9X1.6X2.2 | 7.0X1.75X2.2 | 7.3X2.0X2.4 | 8.1X2.2X2.5 | ||||
Oiltank capacity | L | 360 | 600 | 700 | 900 | ||||
Machine Weight | ton | 7.7 | 8.5 | 11 | 12 | 15 | 16 | 18 | 19 |
