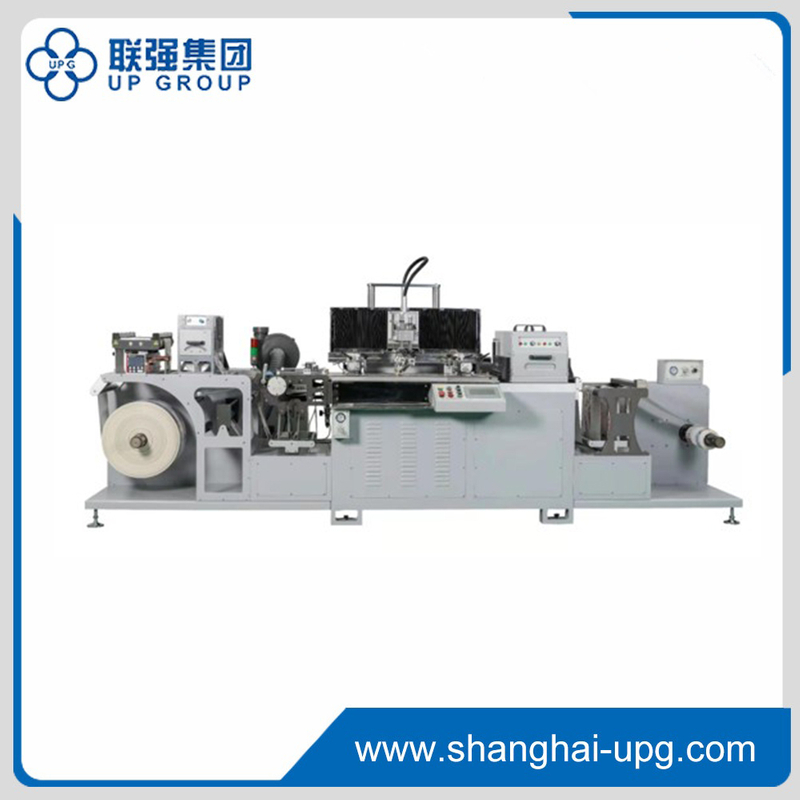

LQY Roll To Roll Screen Printing Machine

Availability:
Quantity:

PDF Export

  • LQY

  • UPG

It can be used for multi-colot overprint.The precision is ±0.05mm.The paper feeder can put the diameterΦ650mm,load-bearing 200kg with paper receiving table.The feeding tension is controlled,and the tension is adjusted according to the size of the material.It is equipped with a 400 Watt variable-frequency speed regulating motor to automatically adjust the feeding speed according to the printing needs.

Max.Mesh Frame Size

600×700mm

Package Size

2.25×1.25×2.30m

2.10×1.45×1.76m

Max.Printing Area

400×400mm

Weight

3000kg

Max.Paper Width

410mm

Power

Supply

Host

AC220V two phase

Max.Paper Length

420mm

Oven

AC380V three phase

Printing Speed

0-9000 sheet/h

Power

Host

主机

4KW(KVA)

Installation Dimensions

6.15×1.45×2.35

Oven

烤箱

18KW(KVA)
