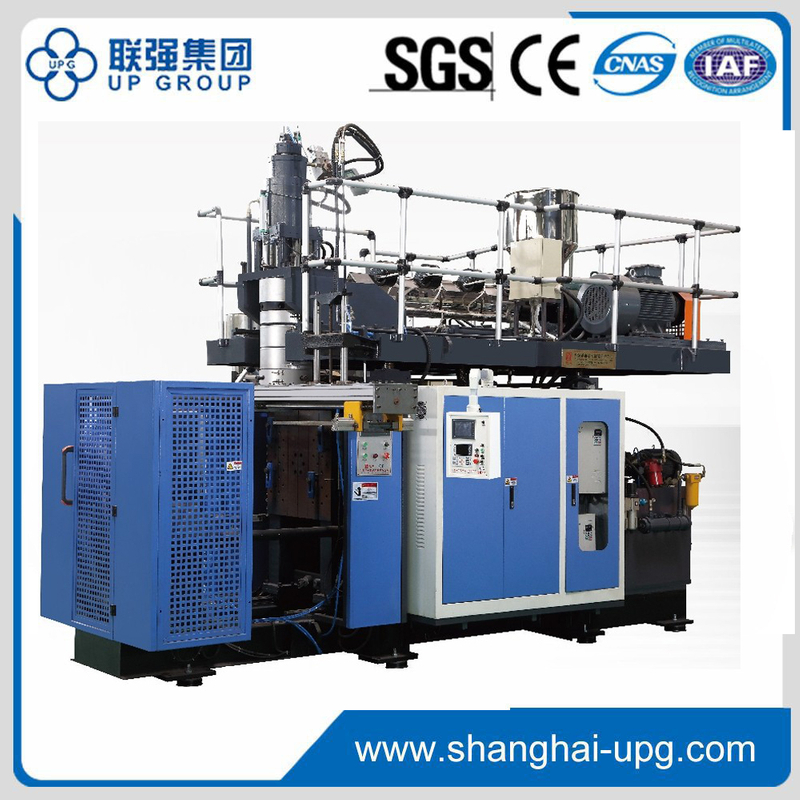

LQYJBA80 Fully Automatic 30L Blow Moulding Machine

Share to:

LQYJBA80 Fully Automatic 30L Blow Moulding Machine

Fully automatic energy saving blow molding machine, with accumulator die head capacity 5L; Suitable to produce volume up to 30L, specially water tank , jerrycan, auto parts...

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQYJBA80
Brand:
LQ

Product Description
parameter

Technical Characteristics:

Fully automatic energy saving blow molding machine, with accumulator die head capacity 5L;

Suitable to produce volume up to 30L, specially water tank , jerrycan, auto parts...

Unique3 cylinder+2 bar clamping system, stable structure, balanced force distribution,longer working period;

Adobe good quality linear guide rail,faster moving speed and lower energy cost, higher output.

LQ-Injection Blow Molding Machine

Main Parameters	UNIT	LQBA80-30L
Max.Product Volume	L	30
Suitable Raw Material		PE PP
Dry Cycle	PCS/H	650
Screw Diameter	mm	80
Screw L/D Ratio	L/D	24
Screw Drive power	KW	30
Screw Heating Power	KW	16
Screw Heating Zone	Zone	4
HDPE Output	Kg/h	100
Oil Pump Power	KW	15
Clamping Force	Kn	210
Mold Open &Close Stroke	mm	400-1050
Mold Template Size	WxH(mm)	760x660
Max.Mold Size	WXH(mm)	600x700
Die Head Type	Accumulator die head
Accumulator Capacity	L	5
Max.die diameter	mm	260
Die head heating power	KW	11.9
Die head heating zone	ZONE	4
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	0.8
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	60
Machine dimension	M	(LXWXH) 4.5X2.4X3.5
Machine	Ton	11.5

Main Parameters	UNIT	LQBA80-30L
Max.Product Volume	L	30
Suitable Raw Material		PE PP
Dry Cycle	PCS/H	650
Screw Diameter	mm	80
Screw L/D Ratio	L/D	24
Screw Drive power	KW	30
Screw Heating Power	KW	16
Screw Heating Zone	Zone	4
HDPE Output	Kg/h	100
Oil Pump Power	KW	15
Clamping Force	Kn	210
Mold Open &Close Stroke	mm	400-1050
Mold Template Size	WxH(mm)	760x660
Max.Mold Size	WXH(mm)	600x700
Die Head Type	Accumulator die head
Accumulator Capacity	L	5
Max.die diameter	mm	260
Die head heating power	KW	11.9
Die head heating zone	ZONE	4
Blowing pressure	MPA	0.6
Air consumption	M3/MIN	0.8
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	60
Machine dimension	M	(LXWXH) 4.5X2.4X3.5
Machine	Ton	11.5
