Synchro-Fly High-Speed Sheeting Machine

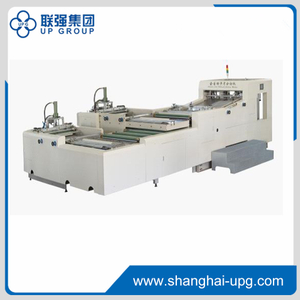

We are specialized in manufacture of paper sheeter machine for more than 40 years, with more advanced paper sheet cutter technology experiences, At the same time we have accumulated a lot of experiences in handling different papers, Including scratch-resistant gold and silver cardboard, As well as liquid packaging paper containing Al in the surface, Therefore we have developed different series of paper sheet cutters, Such as: LQ-SD series, LQ-SE series, LQ-SH series, LQ-ST series, LQ-F series, LQ-G series. It's used in the cutting of different papers
Availability:
Quantity:
  • LQ-SD Series

  • LQ

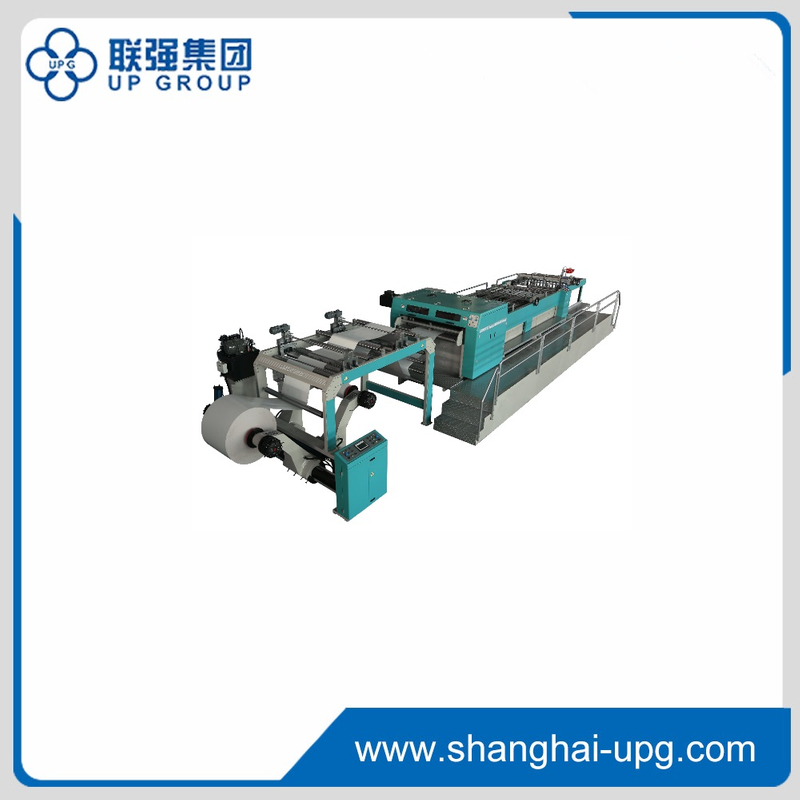

Synchro-Fly High-Speed Sheeting Machine



Model: LQ-SD

1450SD

1700SD

1900SD

Web width range

400-1450mm

400-1700 mm

400-1900 mm

Sheet length range

450-1450 mm

450-1450 mm

450-1600 mm

Pile Height including pallet

1500mm

1500mm

1500mm

Gross pile weight

2000kg

2500kg

3000kg

Mechanical linear speed

300m/min.

300m/min.

300m/min.

Knife load-cross cutter

1000gsm

1000gsm

1000gsm

Sheet squareness

±0.2mm

Sheet length accuracy

±0.2mm

Machine footprint(L*W*H)

16200*5200*2300mm

16500*5500*2300mm

17000*7000*3200mm

A.The Unwind Stands section

According to user requirements, 1 groups of shaft-less hydraulic unwind stand. Each time 2 rolls of paper can be loaded. The automatic tension controller is equipped to stabilize the feeding tension during the cutting process and ensure  cutting accuracy.

3页小图2


PLC Fully automatic tension control system

Tension control plays an important role in ensuring the cutting accuracy and speed. After leveling, paper feeds into diameter based auto tension control system which can adjust tension automatically by PLC .


B.De-curler device

Due to the winding of the paper coil under gravity, the paper close to the paper core is seriously bent and deformed, which affects the precision of the splitting and cutting of the paper sheet and makes a large number of finished paper close to the paper core scrapped. This machine is equipped with an De-curler device



C.The Cutting Section

Slitter device (optional)

The pneumatic tool holder is mounted on the holder with dovetail guide rail, which ensures the strong rigidity of the holder. The user can move the pneumatic tool holder to the desired position according to the size of the tool holder,

6页上2


Cross cutter

The cutter has two sets of tool shaft synchronous rotation up and down to cut. Driven by servomotor, the upper and lower axes are cut at the same speed. Compared with the single-cutter machine, the finished paper processed in this way has smooth edges, which are not easy to produce rough edges and grooves, has good incision, less dust, higher precision and no need for straight angle adjustment device. The maximum quantity of cutting paper can reach 1000 g/m2,

6页上1


D. Convey section

Advanced, stable, reliable paper convey section is an important part of a high-speed paper cutting machine which ensures efficient cutting, paper surface protection, paper edge, smooth stacking, slitting quality and quantity

5页 - 副本


E. The Pile Table / Layboy section

This layboy has three sides to vibrate at the same time, to ensure the smooth stacking under the automatic paper stacking state. The stack height is controlled by an optical control element, which transmits signals to the variable speed elevator to automatically move the stack platform up and down.
