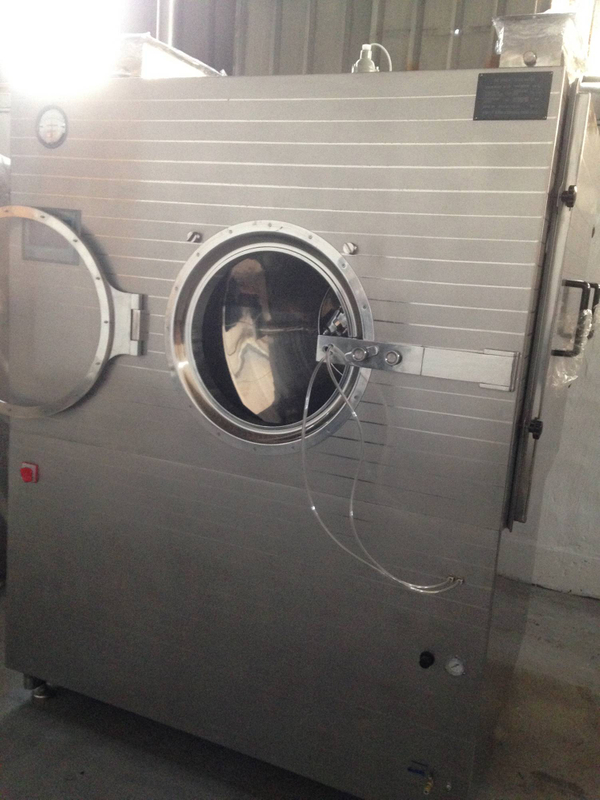

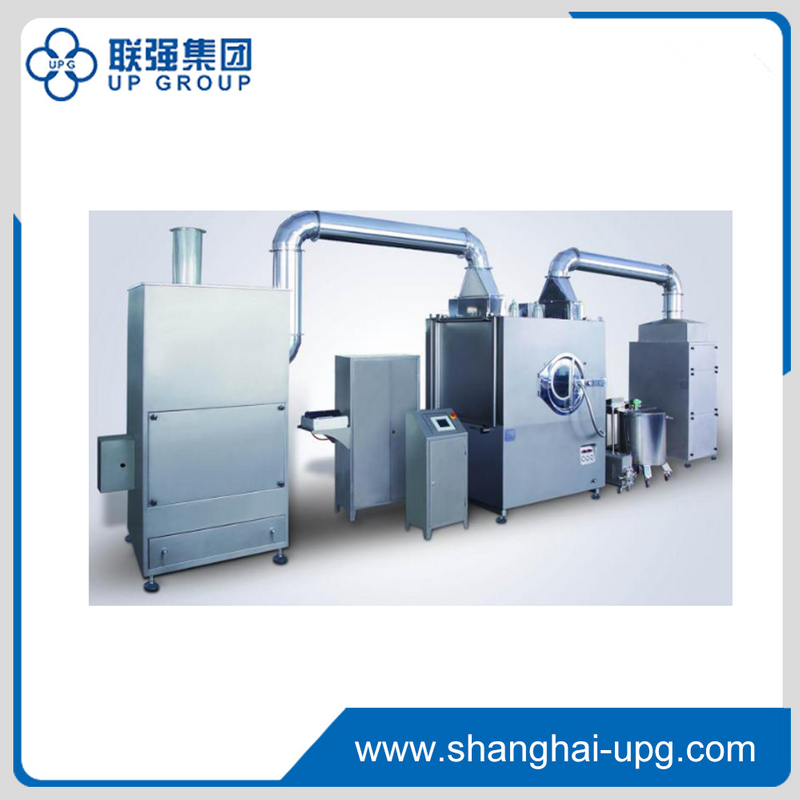

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, atomizing device and computer programming control system.It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
The tablets make complicated and constant movement with easy and smooth turn in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets by the spray gun at the inlet through the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure, clean hot air is supplied by the hot air cabinet and is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry and form a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, atomizing device and computer programming control system.It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
The tablets make complicated and constant movement with easy and smooth turn in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets by the spray gun at the inlet through the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure, clean hot air is supplied by the hot air cabinet and is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry and form a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
Model | BG-10E | BG-40E | BG-80E | BG-150E | BG-400E | BG-600E |
Max. Load Capacity | 40kg/batch | 40kg/batch | 80kg/batch | 150kg/batch | 400kg/batch | 600kg/batch |
Dia. of Coating Pan | Φ500mm | Φ750mm | Φ930mm | Φ1200mm | Φ1580mm | Φ1580mm |
Rotatory Speed | 1-25rpm | 1-21rpm | 1-19rpm | 1-16rpm | 1-13rpm | 1-12rpm |
Main Machine Power | 0.55kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 5.5kw |
Exhaust Cabinet Power | 0.75kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
Hot Air Cabinet Power | 0.35kw | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 5.5kw |
Air Exhaust Flow | 1285m3/h | 3517m3/h | 5268m3/h | 7419m3/h | 10000m3/h | 15450m3/h |
Hot Air Flow | 816m3/h | 1285m3/h | 1685m3/h | 2356m3/h | 3517m3/h | 7419m3/h |
Main Machine Dimension(L*W*H) | 900x620 x1800mm | 1000x800 x1900mm | 12101000 X1730mm | 1570x1260 x2030mm | 2050x1670 x2360mm | 2050x1940 x2360mm |
Hot Air Cabinet Dimension (L*W*H) | 900x8600 x1800mm | 900x800 x1935mm | 900×800 ×1935mm | 900×800 ×1935mm | 900×800 ×2260mm | 1600x1100 x2350mm |
Exhaust Cabinet Dimension (L*W*H) | 600x530 x 1600mm | 820x720 x1750mm | 900x820 x1850mm | 950x950 x1950mm | 1050x1050 x2000mm | 1050x1000 x2200mm |
