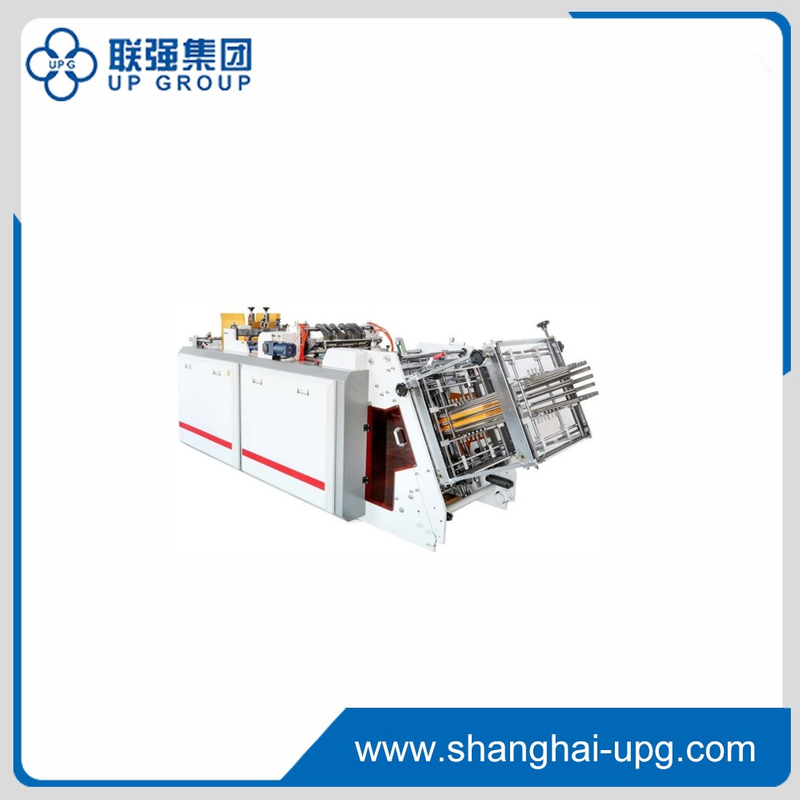

LQ-HBJ-D800/1200GS High Speed Automatic Paper Carton Erecting Machine

LQ-HBJ-D800/1200GS paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc. It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Availability:
Quantity:

PDF Export

LQ-HBJ-D800/1200GS High Speed Automatic Paper Carton Erecting Machine
  • LQ-HBJ-D800/1200GS

  • UPG

1.Servo controlled feeding system,main driving system,paper convey system and forming system

2.Sensor detection to control start and stop feeding and more width belt will replace the up down part.Feeding will be much more steady.

3.Motor controlled gluing system.Inject glue and change the gluing sponge easily and quickly.

4.The collecting frame(flextower) can be opened in three parts.It is easier to install the forming spare part and commissioning.


Technical Specifications

Type

LQ-HBJ-D800GS

LQ-HBJ-D1200GS

Production capacity:

100-200 pcs/min

180-360pcs/min

Suitable Material:

200-600gsm card paper,PE coated paper, kraft   paper,

corrugated paper(up to   1.5mm)

Paper open length:

L100-450mm

degree:5°-40°

Paper open width:

W100-600mm

Height H15-200mm

(for special sizes can be   customized)

W100-400mm

Height H15-200mm

(for special sizes can be   customized)

Total Power:

5KW

6.25KW

Weight:

1800KGS

2400KGS

Dimension:

3600 x1400 x 1700 mm

3600 x 1850 x 1700 mm

power source

380V 50HZ( can be   customized))
