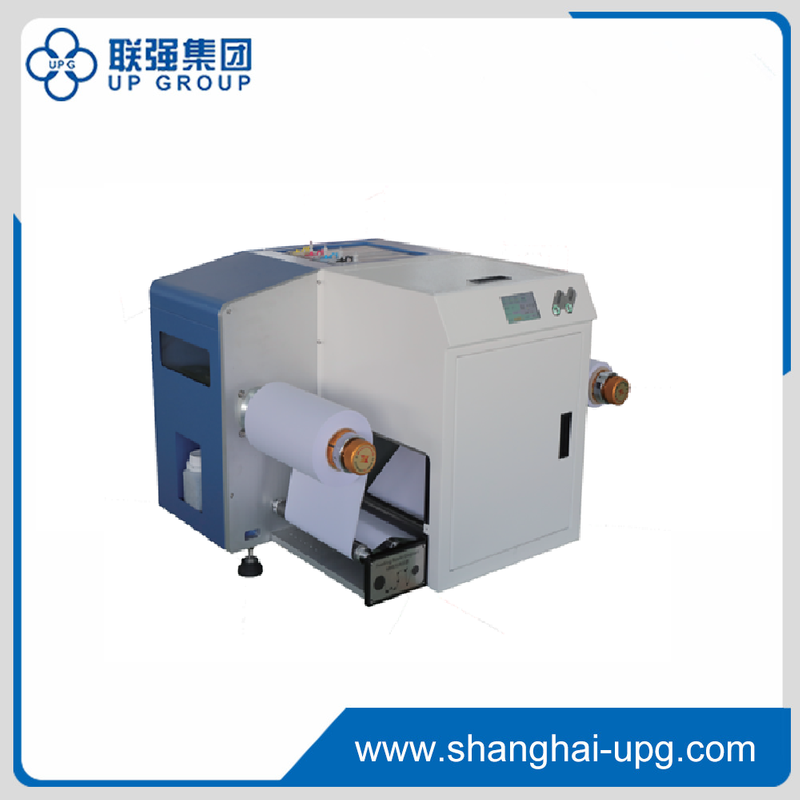

LQ-MD 230
UPG
Features:
1. For different thickness of sheet, three-shafts servo and tension-feeding
system could adjust different tensions to guarantee printing qualities.
2. Both unwinding cylinder and rewinding cylinder adopt manual expansion-shafts with scales, which are easy to install paper rolls.
3. Combing with the built-in study-function laser sensor with learning function, this machine could realize accurate positioning labels (after die-cutting) ,also with counting function.
4. The ink-supply system is equipped with positive pressure cleaning function which is easy to supply ink into nozzles and maintain.
Application:
Specifications:
Configuration | LQ-MD 230 Colorful Label Printer | |
Printhead parameters | Printhead model | LQ-MD 214 |
Printing resolution | 1200*600/1200*1200 DPI | |
Max. Inkjet width | 214mm | |
Ink tank capacity | 900ml*4 color | |
Ink model | Dye ink (CMYK) | |
Paper requirements | Applicable paper | 100-180g/m³ |
Applicable medium | Writing paper, coated paper, self-adhesive paper, matte paper, PET, PVC, PE, PP, etc. | |
Max. Paper width | 230mm | |
Max. Paper roll’s diameter | 300mm | |
Resolution mode | The label after die-cutting | |
Printing speed | High speed mode | 18m/min |
Resolution mode | 9m/min | |
Electrical parameters | Power | 220v-50/60Hz |
Max. Power/standby power | 1800W/200W | |
Interface | 4.3 industrial screen | |
Appearance parameters | Dimension | 950*770*650mm |
Net weight | 160kg | |
Operating environment | Temperature: 15-35℃， Humidity: 50%-70% | |
Features:
1. For different thickness of sheet, three-shafts servo and tension-feeding
system could adjust different tensions to guarantee printing qualities.
2. Both unwinding cylinder and rewinding cylinder adopt manual expansion-shafts with scales, which are easy to install paper rolls.
3. Combing with the built-in study-function laser sensor with learning function, this machine could realize accurate positioning labels (after die-cutting) ,also with counting function.
4. The ink-supply system is equipped with positive pressure cleaning function which is easy to supply ink into nozzles and maintain.
Application:
Specifications:
Configuration | LQ-MD 230 Colorful Label Printer | |
Printhead parameters | Printhead model | LQ-MD 214 |
Printing resolution | 1200*600/1200*1200 DPI | |
Max. Inkjet width | 214mm | |
Ink tank capacity | 900ml*4 color | |
Ink model | Dye ink (CMYK) | |
Paper requirements | Applicable paper | 100-180g/m³ |
Applicable medium | Writing paper, coated paper, self-adhesive paper, matte paper, PET, PVC, PE, PP, etc. | |
Max. Paper width | 230mm | |
Max. Paper roll’s diameter | 300mm | |
Resolution mode | The label after die-cutting | |
Printing speed | High speed mode | 18m/min |
Resolution mode | 9m/min | |
Electrical parameters | Power | 220v-50/60Hz |
Max. Power/standby power | 1800W/200W | |
Interface | 4.3 industrial screen | |
Appearance parameters | Dimension | 950*770*650mm |
Net weight | 160kg | |
Operating environment | Temperature: 15-35℃， Humidity: 50%-70% | |
