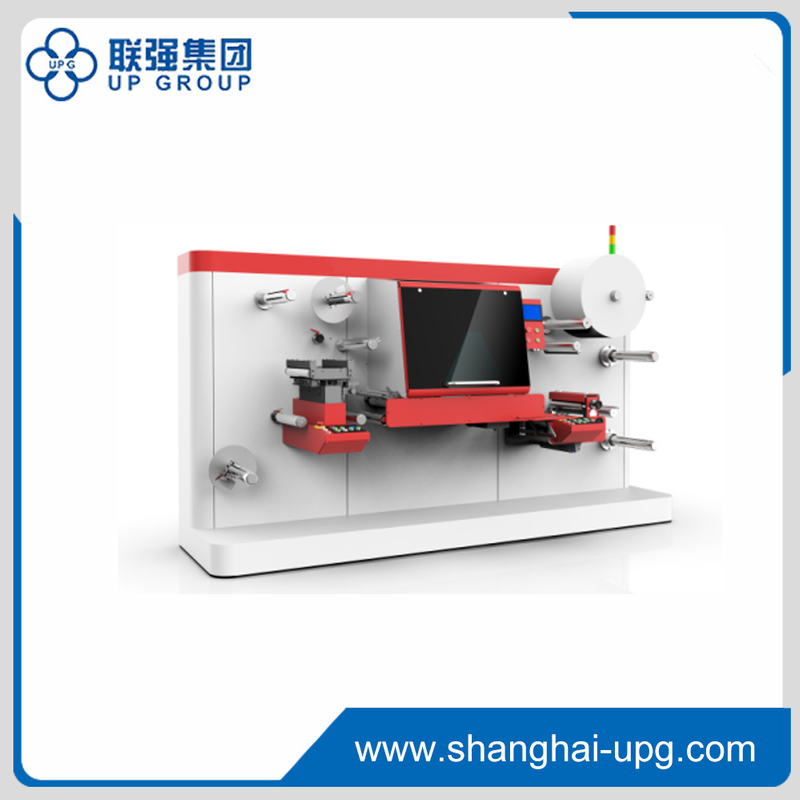

LQ-MD 350
UPG
LQ-MD 350
· On-demand production efficiently response customer orders.
· Eliminate mechanical dies cost and warehouse cost.
· QR code/Bar code scanning,supports jobs change on the fly.
· Digital work flow streamlines operations.
· Modular design to meet customers‘individual needs.
· One-time investment, Low maintenance cost.
· On-demand production efficiently response customer orders.
· Eliminate mechanical dies cost and warehouse cost.
· QR code/Bar code scanning,supports jobs change on the fly.
· Digital work flow streamlines operations.
· Modular design to meet customers‘individual needs.
· One-time investment, Low maintenance cost.
Model | LQ-MD 350 |
Max cuttng width | 340mm |
Max cuttng length | Unlimited |
Max width of feeding | 350mm |
Max web diameter | 750mm |
Max web speed | 80m/min (speed varies by different material and patterns) |
Accuracy | ±0.1mm |
Dimensions | 7140×2000×1820 mm |
Weight | 3000kg |
Power supply | 380V, 3 phases, 50/ 60Hz |
Air pressure | ＞0.4mpa |
Laser power | 200w |
Water chiller power | 1.2-3kw |
exhaust system power | 1.2-3kw |
