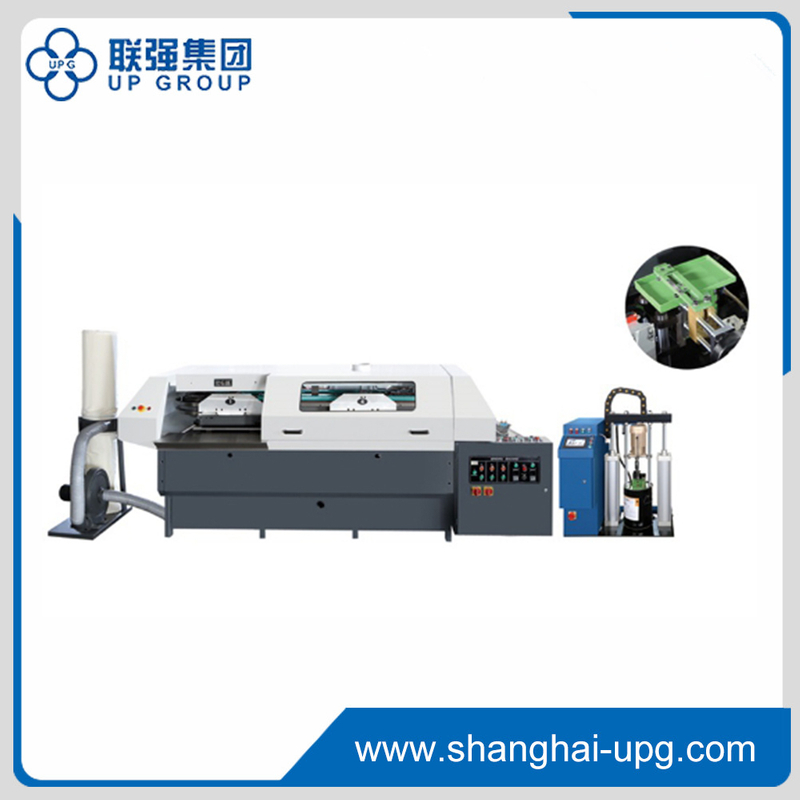

LQBT50/5F PUR Ellipse Binding Machine

LQBT50/5F Ellipse binding machine is multi functions binding machine with advanced technology in 21th centry. It can paste paper scrip and gauze.

Quantity:
  • LQBT50/5F
  • UPG

LQBT50/5F Ellipse binding machine is multi functions binding machine with advanced technology in 21th centry. It can paste paper scrip and gauze. And also can be used for sticking big sizes cover in the meantime or use alone. The interchange between EVA and PUR is very fast.

This machine adopted a computer operation system, a mill chamber construction, side rubber wheel, indentation wheel, book-wrapping table, cover size adjuster, auto computer setter. As a result it can finish all the processes in one minute. It is controlled by a frequency controller and PLC. It is assembled with photoelectric cells, auto tester and touch screen displayer. There is digital display function in the glue breaking function back and forth, mill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, and the book acceptance structure is level method and protects the book back forming in better way. This machine not only uses lock line gluing packaging, but also unwiring gluing packaging, which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.

Binding size Max450X300mm Min150X105mm
Binding thickness 2-50mm
Binding speed Max2300Books/ Hour
Power required 14Kw
Weight 2100Kg
Dimensions 3900x1330 x1250mm
