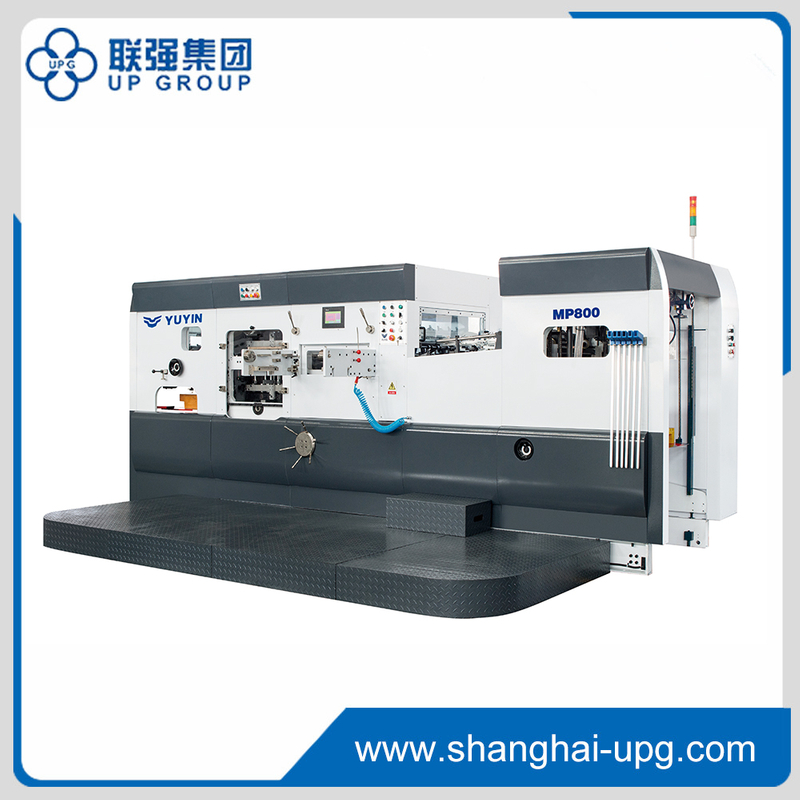

MP800 Automatic Diecutting & Stripping Machine

Our new model of MP800 has the traditional functions---automatic stripping and the die-cutting, which can clean up all litters and wasteful edges (except the gripper edge) around the package box while die-cutting, especially suitable for complicated cigarette-package.

Quantity:
  • MP800
  • UPG

Our new model of MP800 has the traditional functions---automatic stripping and the die-cutting, which can clean up all litters and wasteful edges (except the gripper edge) around the package box while die-cutting, especially suitable for complicated cigarette-package.

 It is easy to operate it because the stripping frame can be lifted electrically and it also has the center-positioning system to shorten the preparation time largely.

The stripping system adopts three-frame linkage structure to make stripping much more rational and meanwhile, it solves problems for the high-speed and loosen-version during the stripping.

The unique gripper-mouth separation-system makes the wasteful edge separate effectively and is also convenient for shifting between the die-cutting and stripping.

The high-precision cam structure guarantees the machine to run stably and smoothly, which is produced by the professional manufacturer.




Max. Paper Size   (mm)

800X620

Min. Paper Size   (mm)

360 X 290

Max. Die-Cutting Size ()

790X 610

Max. Die-Cutting Speed (s/h)

8000

Max. Stripping Speed (s/h)

6500

Max. Working Pressure   (T)

200

Die-cutting   Precision (mm)

≤±0.1

Sheet Thickness (mm)

Cardboard 0.1 -1.5

Corrugated   Board: 4

Net Weight (T)

11

Total Power (kw)

17.55

Overall Dimensions   (mm)

(Not include the   foot plate)

4850x1785x2000
