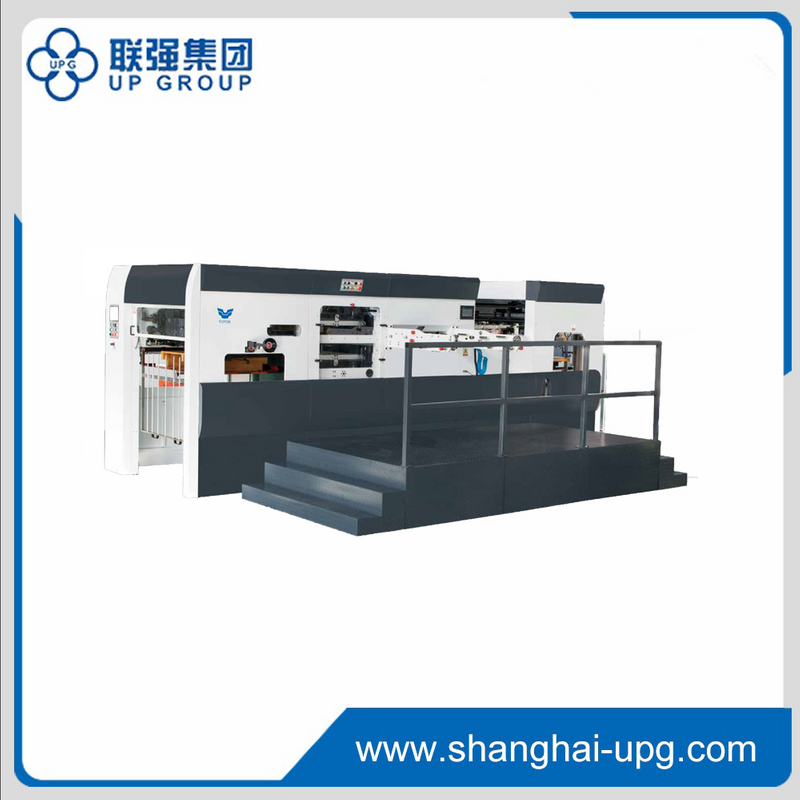

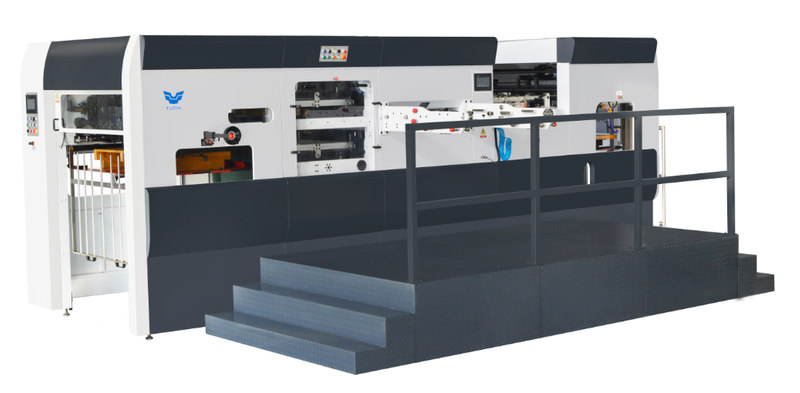

MPQ1050 Automatic Diecutting & Stripping Machine

Our new model of MPQ1050 not only has the traditional functions---the automatic stripping and the die-cutting, but also owns the new function –the second-stripping system, which can clean up all litters and wasteful edges
Availability:
Quantity:
  • MPQ1050

  • UPG

    Our new model of MPQ1050 not only has the traditional functions---the automatic stripping and the die-cutting, but also owns the new function dash;the second-stripping system, which can clean up all litters and wasteful edges (including the gripper mouth)around the package box while die-cutting, especially suitable for complicated cigarette-package. This new second stripping system can height efficiency to rationalize the production for the package box.
The MPQ1050 automatic stripping and die-cutting machine can eliminate all litters and wasteful edges(except the gripper edge) around the package box.
  ●The second-stripping system is able to clean up all wasteful edges on the gripper-mouth around the package box while die-cutting.
  ●It is easy to operate it because the stripping frame can be lifted electrically and it also has the center-positioning system to shorten the preparation time largely.
  ●The stripping system adopts three-frame linkage structure to make stripping much more rational and meanwhile, it solves problems for the high-speed and loosen-version during the stripping.
  ●The unique gripper-mouth separation-system makes the wasteful edge separate effectively and is also convenient for shifting between the diecutting and stripping.
  ●The high-precision cam structure guarantees the machine to run stably and smoothly, which is produced by the professional manufacturer.
  ●Adopting the larger model of gripper chain increases 90% tensile strength to make the machine’s continuous precision.



Max. Paper Size 1060X760mm
Min. Paper Size 400 X 370mm
Max. Die-Cutting Size  1050X 750mm
Max. Die-Cutting Speed  7500 s/h
Max. Stripping Speed  6500 s/h
Max. Working Pressure 300 T
Die-Cutting Precision ±0.1mm
Max. Feeding Pile 1400mm
Max. Delivery Pile 1340mm
Sheet Thickness  Corrugated paper≤4mm
Cardboard 0.1 -1.5mm
Net Weight  19 T
Total Power  20.52kw
