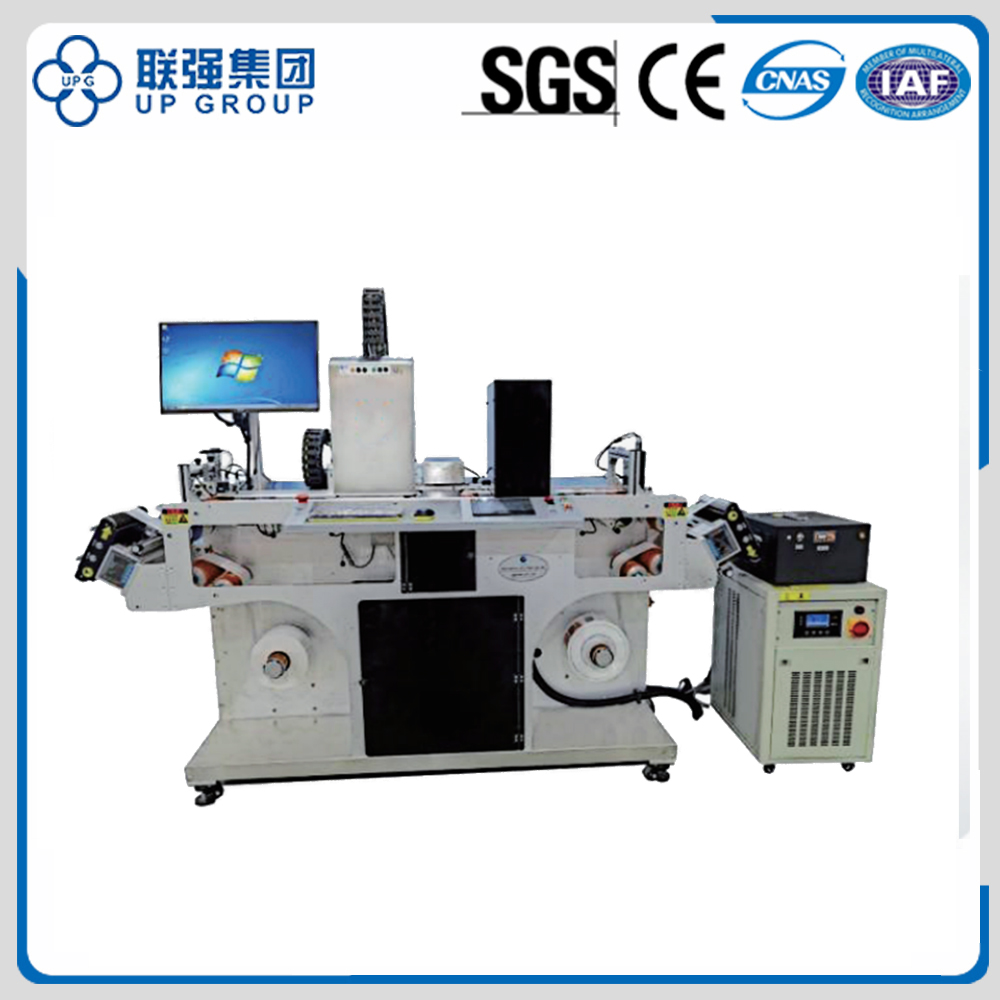

LQ-MD 608/610 RFID Coil Label Printing & Reading & Writing Detection Machine

Wide applicability, supports the normal production of labels with a width of about 10mm (jump distance direction) and no need high requirements for the surface coating of materials. One device can meet the production needs of most labels.

The self-developed high-precision tension control system + positive and negative deviation correction positioning system realizes the reverse positioning of the label after shutdown and startup, without manual intervention, realizing fast and accurate printing and positioning

Modular hardware and software configuration can customize equipment according to customer needs, which is personalized functional module configuration.

Availability:
Quantity:

PDF Export

  • LQ-MD 608/610

  • UPG

ModelLQ-MD 608LQ-MD 610
NozzleRicoh/Japanese Kyocera RH
Ink typeLED curing UV ink
ColourSingle color4 colors + white varnish can be selected
Running Printing Speed0-50m/min
Print resolution600x600dpi or 600x1200dpi
Jet printing width54*2mm/108mm
Max. web width30-200mm
RFID encoding speedpieces0-15per/s
Image + Data managementHigh-speed RIP + Variable data printing
VisualinspectionOCR 1.3 megapixel or 2K line scan
Power220VAC, 6.8kw
Machine Size2600*1300*1900mm
