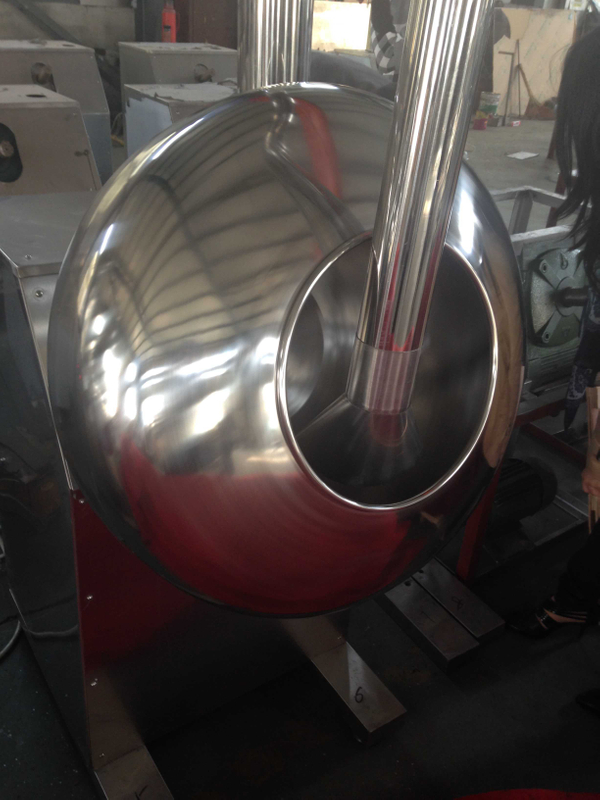

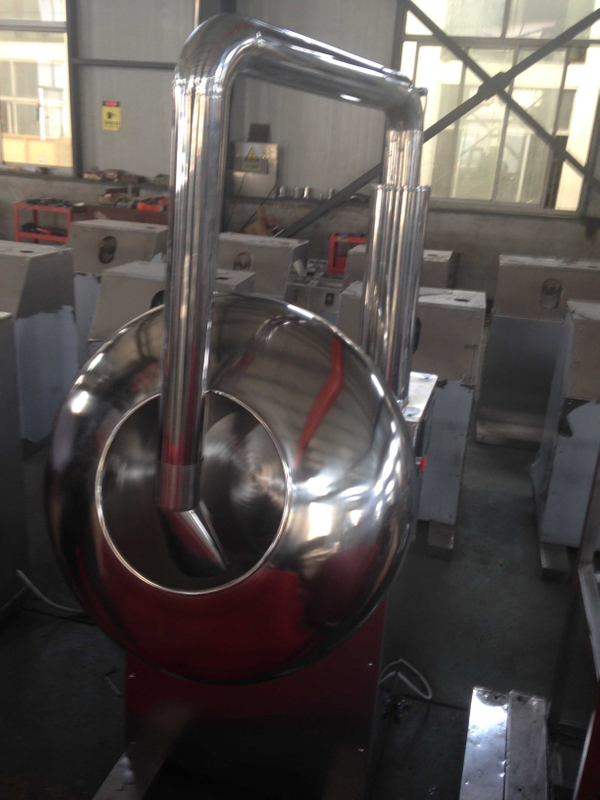

The tablet coating machine is widely used in pharmacy industry, chemical industry, food industry, research institutes and hospitals to make tablets, sugar-coat pills and polish food. The intact solidified coat is formed and the surface sugar's crystallization can prevent the chip from oxidative deterioration volatilization and cover the improper flavor of the chip. In this way, tablets are easier to be identified and their solution inside human stomachs can be lessened. The sugar-coat tablets after being polished have a bright appearance.
The tablet coating machine is widely used in pharmacy industry, chemical industry, food industry, research institutes and hospitals to make tablets, sugar-coat pills and polish food. The intact solidified coat is formed and the surface sugar's crystallization can prevent the chip from oxidative deterioration volatilization and cover the improper flavor of the chip. In this way, tablets are easier to be identified and their solution inside human stomachs can be lessened. The sugar-coat tablets after being polished have a bright appearance.
Model | BY600 | BY800 | BY1000 | BY1250 |
Dia. of Pot | 600mm | 800mm | 1000mm | 1250mm |
Capacity | 5~15kg | 30~50kg | 50~70kg | 90~150kg |
Speed | 32r/min | 32r/min | 32r/min | 30r/min |
Motor Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Blower Power | 0.12kw | 0.2kw | 0.2kw | 0.55kw |
Total Power | 1.87kw | 3.3kw | 3.7kw | 4.75kw |
Voltage | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph |
Overall Dimension(L*W*H) | 780×600×1360mm | 1100×800×1680mm | 1150×1000×1680mm | 1340×1250×1680mm |
Weight | 115kg | 270kg | 280kg | 400kg |
Model | BY600 | BY800 | BY1000 | BY1250 |
Dia. of Pot | 600mm | 800mm | 1000mm | 1250mm |
Capacity | 5~15kg | 30~50kg | 50~70kg | 90~150kg |
Speed | 32r/min | 32r/min | 32r/min | 30r/min |
Motor Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Blower Power | 0.12kw | 0.2kw | 0.2kw | 0.55kw |
Total Power | 1.87kw | 3.3kw | 3.7kw | 4.75kw |
Voltage | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph |
Overall Dimension(L*W*H) | 780×600×1360mm | 1100×800×1680mm | 1150×1000×1680mm | 1340×1250×1680mm |
Weight | 115kg | 270kg | 280kg | 400kg |
