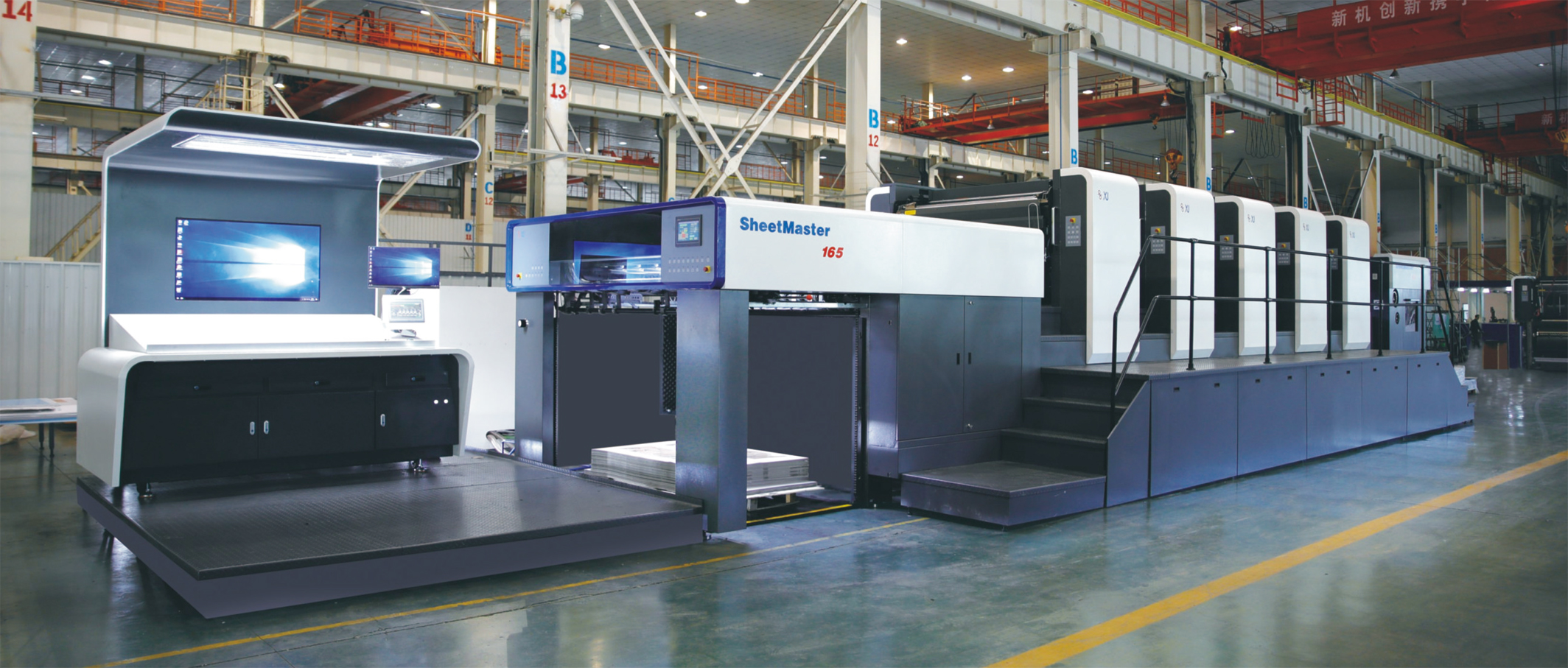

LQ-MD 165/145/130
UPG
Main Configuration
1.Pressure preset
2.Paper preset
3.Semi-automatic plate mounting (optional)
4.Dampening solution circulation system (optional)

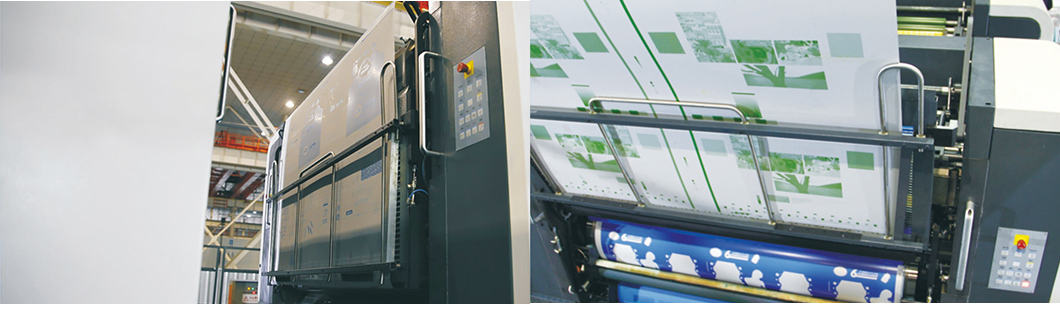

High speed paper feeder with variable speed feeding, and the speed of paper reaching the front gauge can be adjusted.
Vacuum adsorption cardboard feeding and paper roller are used in parallel,making the paperrun extremely smoothly.
Equipped with paper preset function, the paper size can be automatically adjusted toimprove orderexchange efficiency.

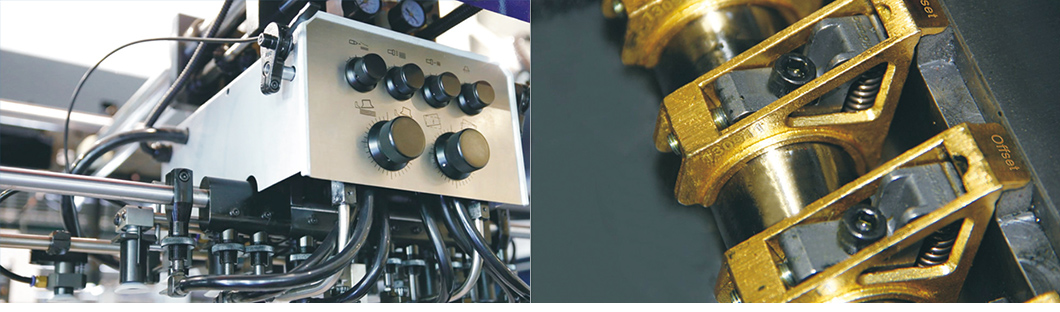

Our company's unique technology, the new technology structure of gripper and overall gripper pad,is super stable.
Optimize high-speed paper delivery mechanism, lower swing composite motion front gauge,and long front gauge positioning time.
German original imported photoelectric element deteclion for skewness and empty tension uitrasonic double sheet detection.
Pneumatic side pul gauge automatically adjusts paper size (pre set paper),improving elficiency during operation.

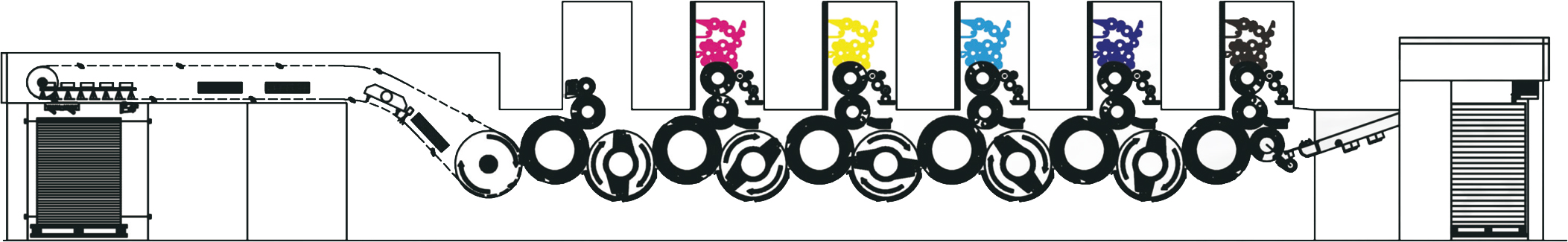

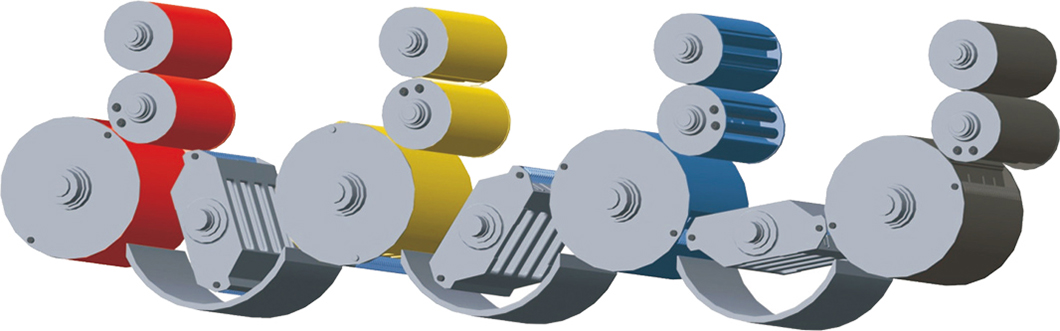

Double diameter drum, optimized seven o'clock arrangement.
Reinforced frame and roller shaft structure, with a more stable structure.
The double diameter drum adopts high-precision, gapless special rolling bearings,ensuring printing pressure.
The patent of the company, the reinforced straight line paper transfer roller, prevents rubbing and dirt.
The drum is made of wear-resistant alloy cast iron and coated with stainless sleel on the surface.
High frequency quenching of drum gears, cam surfaces, ink bucket rollers, etc..durable and durable.

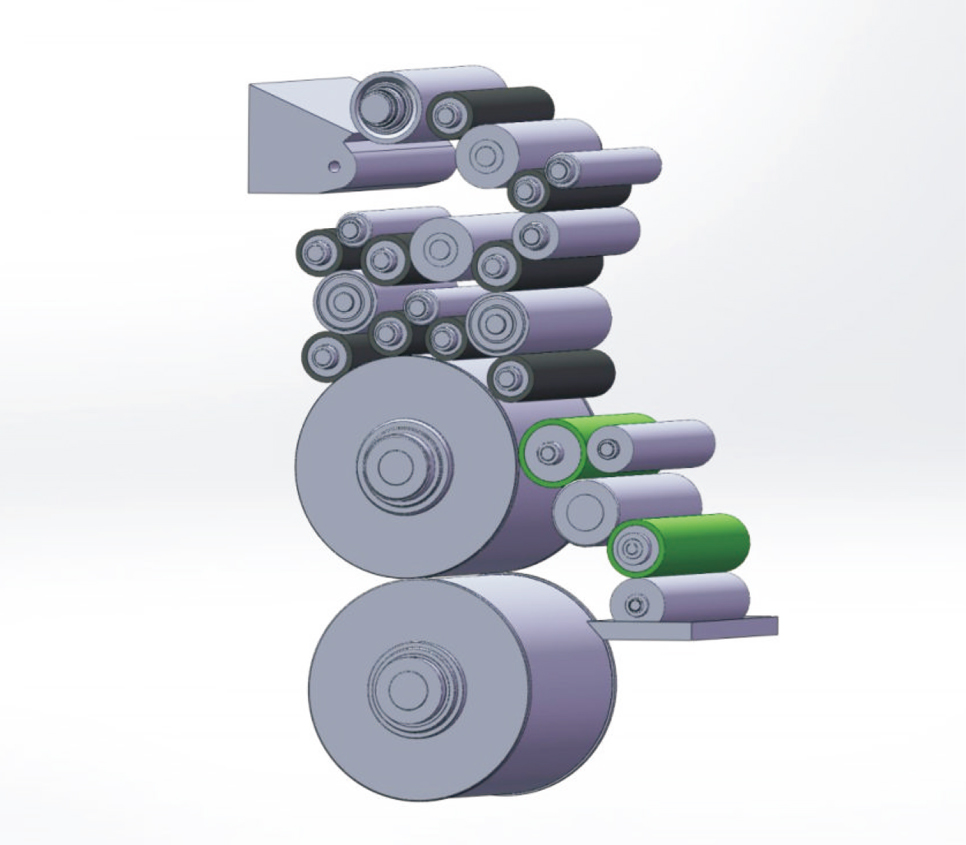

According to the optimization design of fluid mechanics large sized ink rollers and water rollers are used to rearrange the ink flow route, which can guickly adjust the ink amount and water volume, and the ink discharge is fast, sufficlent, and uniform, greatly reducing paper waste.
The use of pneumatic clutch to control the transmission and diferential control of ink and water channels allows for lexible control of the use and disconneclion of ink and waler, reducing wear and extending the service lile of ink and water rollers.

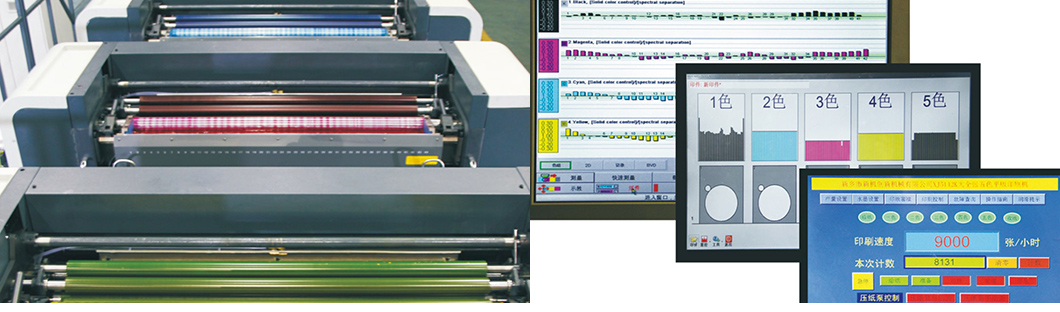

Ink remole control system, with one click operation on the control panel and remote diagnostic control.
The printing program is fully automated and can be inteligenly connected to the front and rear processes through the internet, with fault self-diagnosis function.
Intemational renowned brand PLC control system and frequency converter.

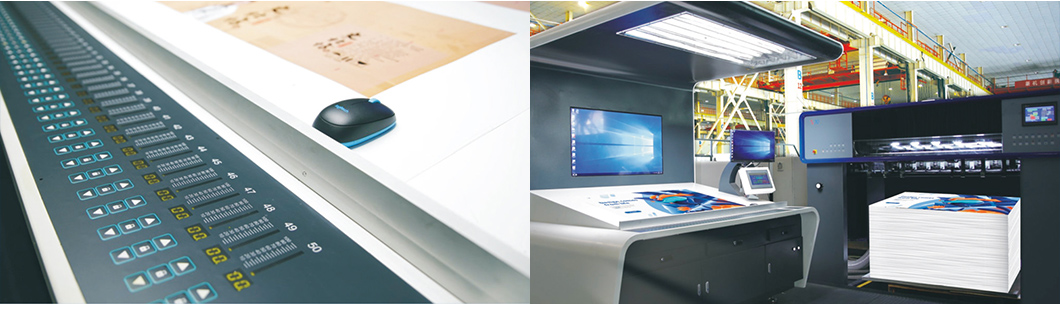

Touch screen operation and adjustment of electronic control dala, quick and fiexible operation of varlous functions, greatly saving time.
The large screen displays the working status, which is intuitive and clear, The computer remembers and stores ink color information, and the pre loading and pre receiving function can add a CTP interface to improve work efficiency.

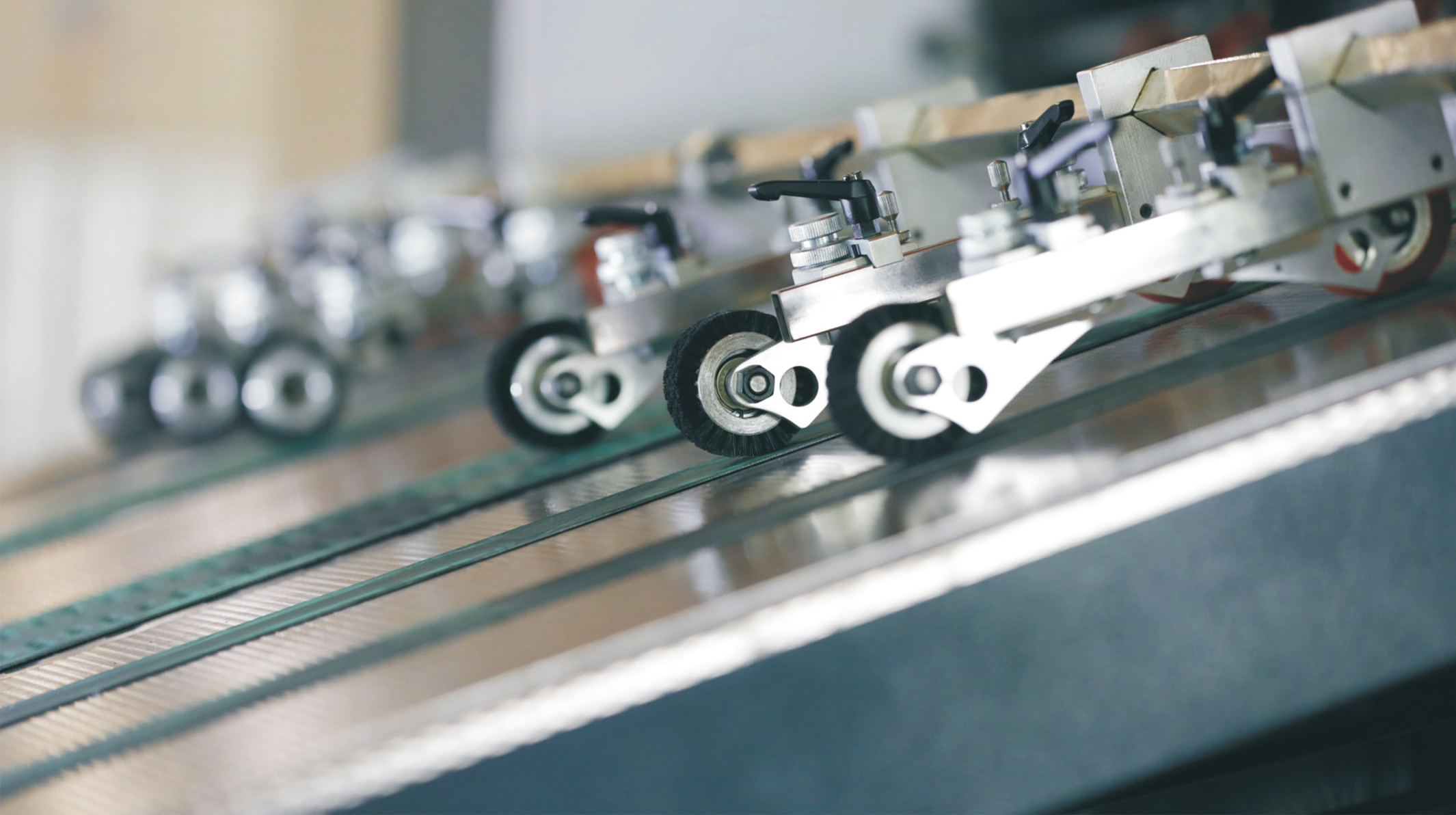

Optimizing the positioning and rounding of the closed guide rail CNC machining center.ensuring smooth operation of the paper receiving chain and low noise.
The combination of brake roller vortex fan suction and pressure paper fan ensures high.speed and stable paper falling.
The delivery gripper are driven by a motor , and the brake roller is directly driven by avariable frequency motor, tracking and following.
Delivery is provided with paper presetting function, and paper format can be adjusted automatically.
Imported pneumatic componenis control plate holder, semi-aulomatic plate loading slable and fast.
The control console electrically operates the axial, circumferential, and diagonal proofreading mechanism of the drum,ensuring fast and accurate proofreading of rules.
