LQ-MD 330DS
UPG

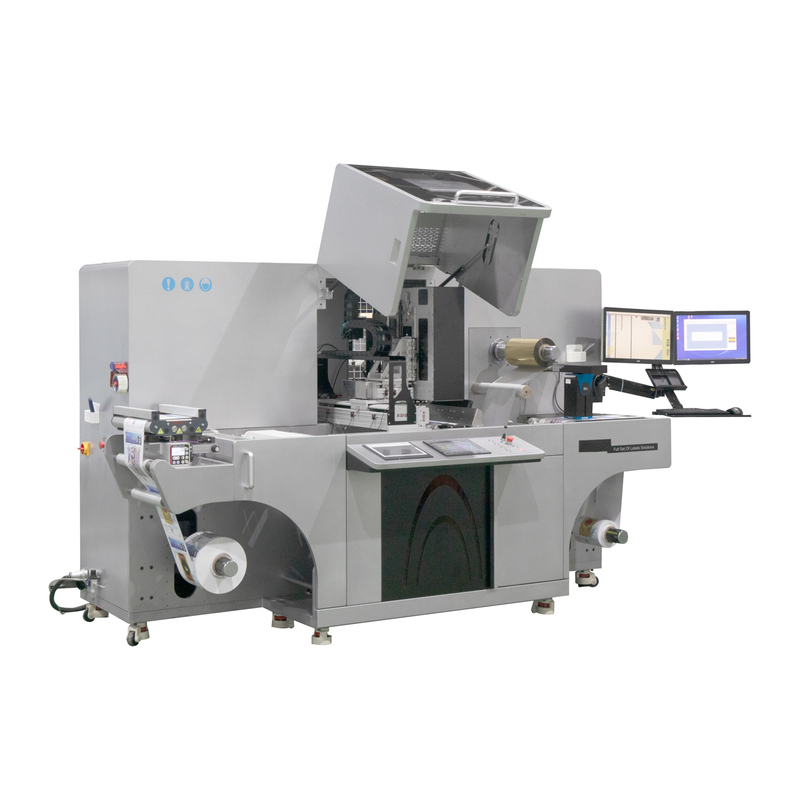

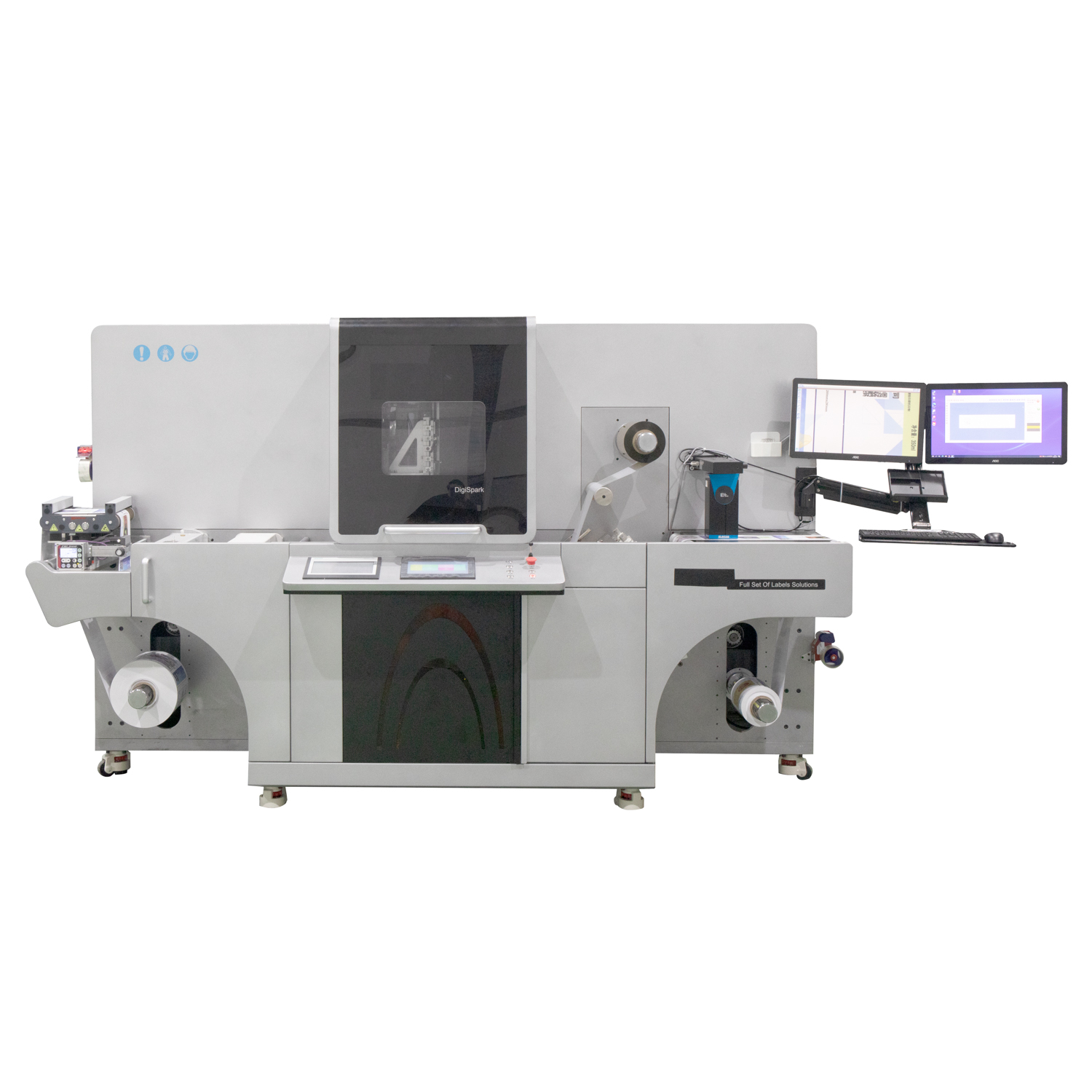

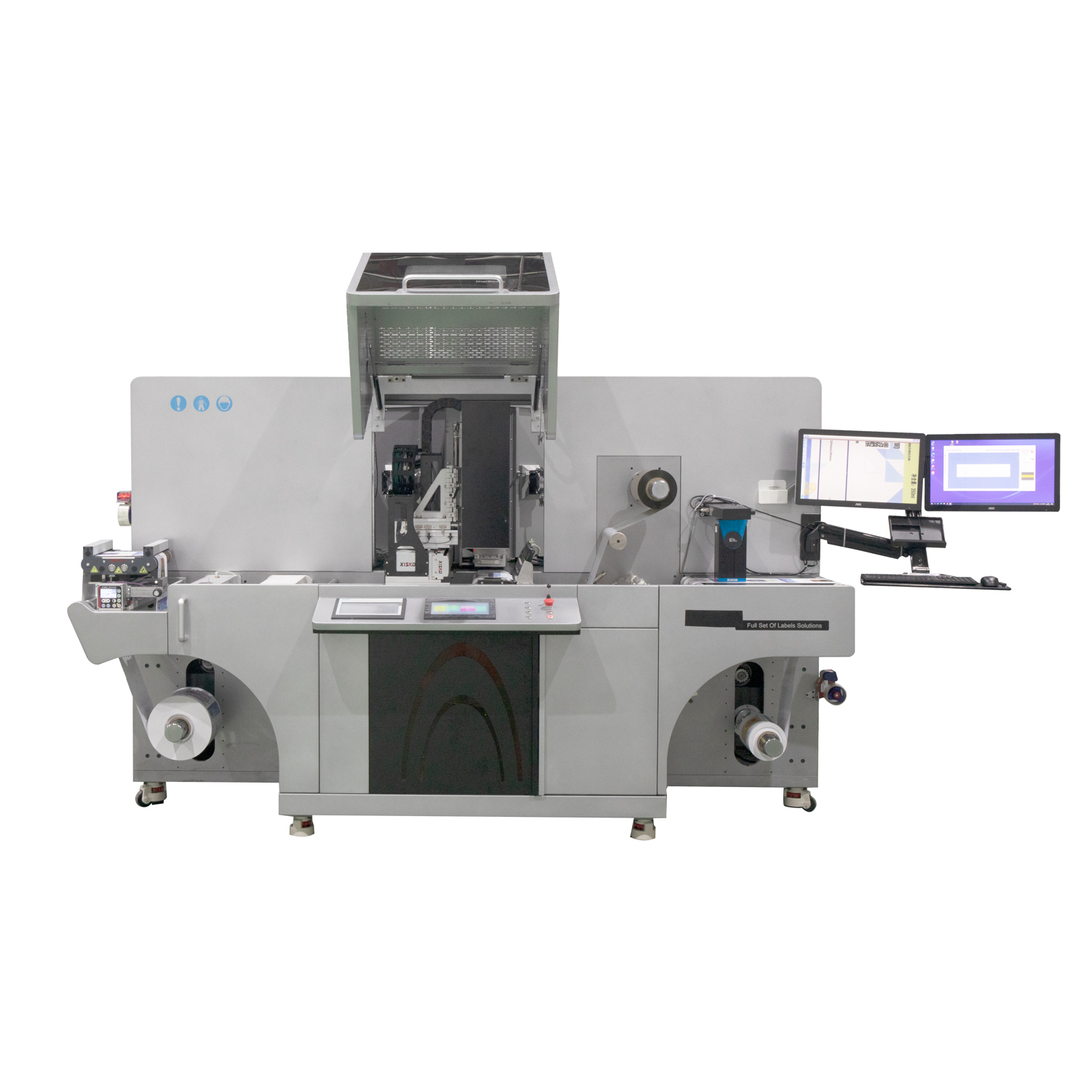

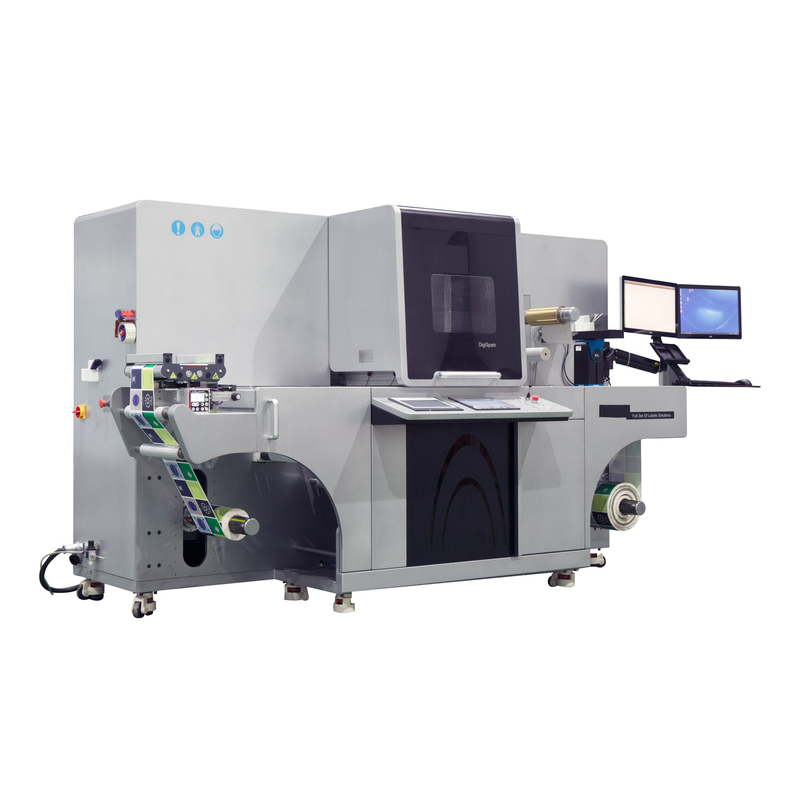

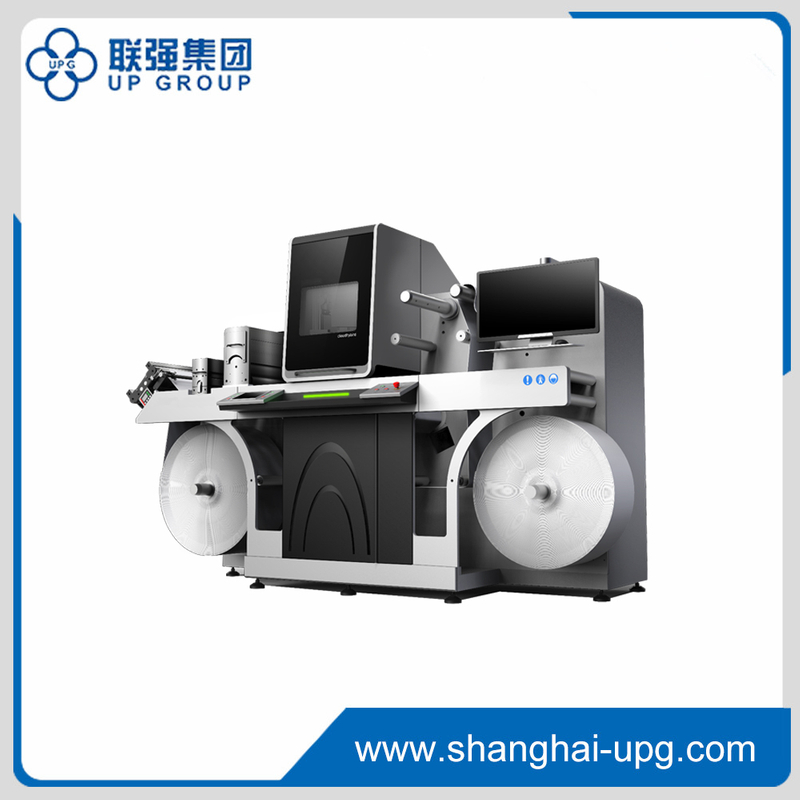

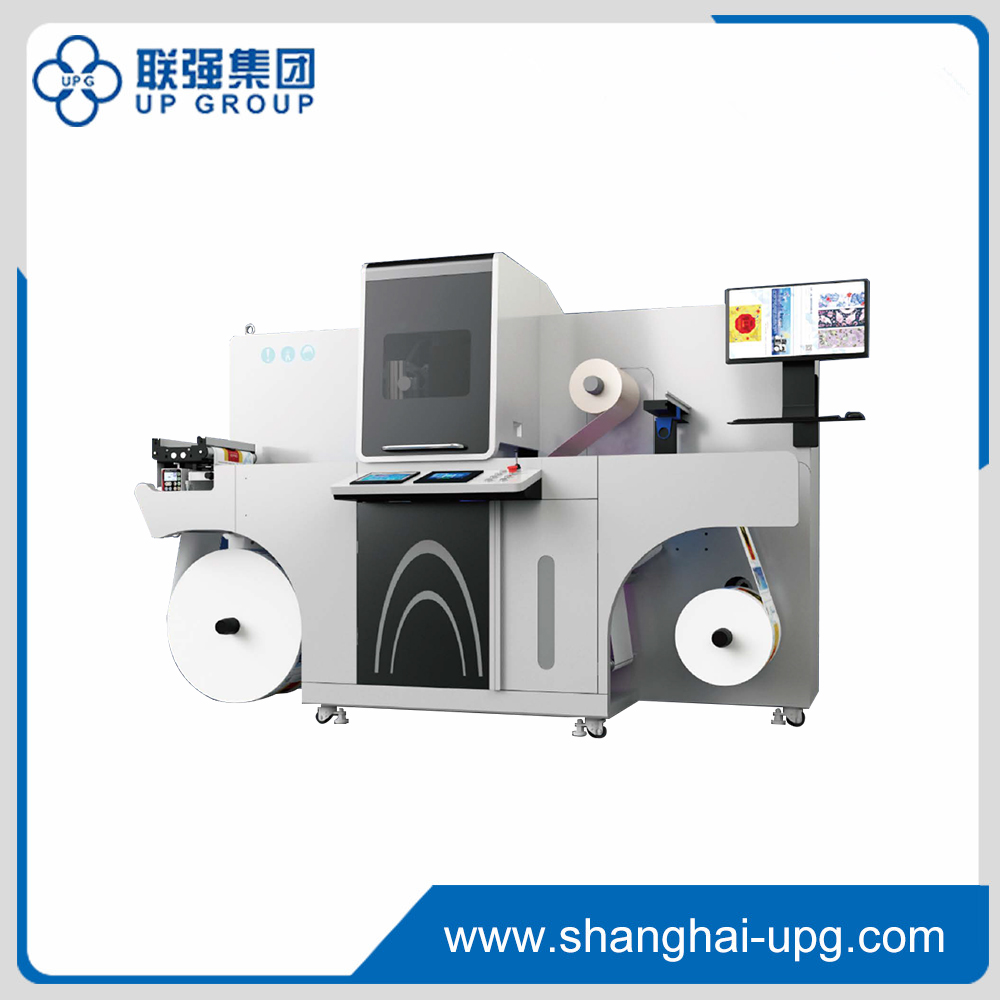

LQ-MD 330DS
Introduction
This Digital Enhancement System combines digital stamping (embossing), digital varnishing, forsting, 3D bright, spot varnishing, braille, personalized arts, variable data printing, special printing process to highlight your press work and multiply the value. It has the advantages of high efficiency, low cost and high added value to quickly complete very minimum to medium length orders. Together with traditional printer, digital printer and other post-processing technology, it can perfectly solve most post-processing problems.
Features & Advantages
Fully Digital Process
With an all-digital solution, no additional cumbersome settings are required, and the goal can be achieved with only bar codes or QR codes and variable data in PDF or optimized PDF files.
Strong Product Applicability
It can not only be perfectly cooperate with HP, Epson, Konica Minolta and other digital printing presses, but also perfectly matched with most traditional printer.
Durable Embossment Without Deformation
Using unique UV inkjet printing technology, the crystal clear resin varnish can be adhered tightly, stable, full, durable and compliant. Embossed characters and graphics can maintain a clear outline and will not be deformed or flattened.
Accurate And Fast Overprinting
Through simple paper path design, precise registration of digital UV varnishing and stamping can be done in one time, which can reduce the waste of paper and process and greatly improve production efficiency.
Introduction
This Digital Enhancement System combines digital stamping (embossing), digital varnishing, forsting, 3D bright, spot varnishing, braille, personalized arts, variable data printing, special printing process to highlight your press work and multiply the value. It has the advantages of high efficiency, low cost and high added value to quickly complete very minimum to medium length orders. Together with traditional printer, digital printer and other post-processing technology, it can perfectly solve most post-processing problems.
Features & Advantages
Fully Digital Process
With an all-digital solution, no additional cumbersome settings are required, and the goal can be achieved with only bar codes or QR codes and variable data in PDF or optimized PDF files.
Strong Product Applicability
It can not only be perfectly cooperate with HP, Epson, Konica Minolta and other digital printing presses, but also perfectly matched with most traditional printer.
Durable Embossment Without Deformation
Using unique UV inkjet printing technology, the crystal clear resin varnish can be adhered tightly, stable, full, durable and compliant. Embossed characters and graphics can maintain a clear outline and will not be deformed or flattened.
Accurate And Fast Overprinting
Through simple paper path design, precise registration of digital UV varnishing and stamping can be done in one time, which can reduce the waste of paper and process and greatly improve production efficiency.
Printing Method | UV Piezo-Electric, Drop on Demand inkjet Printing |
Image Resolution | Max 1080×360 dpi |
Printing Speed | 6mpm-30mpm (depending on printing thickness) |
Supported variable file format | PDF and varies barcodes format |
Supported image file format | PDF, PDF/VT, TIFF, BMP file formats |
Substrate | Offset print, digital print, flexible material, lamination & other pre-coated material |
Print Width | Max 288×5000mm |
Ink Polymer | LED-UV Curable Ink, Dedicated transparent varnish |
Printing Thickness | 10-200um |
Curing Method | LED-UV pinning/ LED-UV curing |
Max Unwind Dia | Max Roll Dia: 700mm, core shaft: 76mm |
Max Rewind Dia | Max Roll Dia: 700mm, core shaft: 76mm |
Substrate Thickness | 30um-400um |
Max Web Width | 330mm |
Machine Dimension (LxHxW) | 3500×1900×1800mm |
Production Envirnoment | Temperature: 15-30 degree celsius |
Relative humidity: 40%-80% Non feezing | |
Power requirement | Voltage 3×380; +/-5%; 3 phase +G+N (Star connection) |
Frequency: 50/60Hz | |
Current: 25 Amperes | |
Capacity: 13.5KVA | |
Production: 30KVA | |
Cable Requirement: Min 50A | |
Machine Weight | approx 2500kg |
Printing Method | UV Piezo-Electric, Drop on Demand inkjet Printing |
Image Resolution | Max 1080×360 dpi |
Printing Speed | 6mpm-30mpm (depending on printing thickness) |
Supported variable file format | PDF and varies barcodes format |
Supported image file format | PDF, PDF/VT, TIFF, BMP file formats |
Substrate | Offset print, digital print, flexible material, lamination & other pre-coated material |
Print Width | Max 288×5000mm |
Ink Polymer | LED-UV Curable Ink, Dedicated transparent varnish |
Printing Thickness | 10-200um |
Curing Method | LED-UV pinning/ LED-UV curing |
Max Unwind Dia | Max Roll Dia: 700mm, core shaft: 76mm |
Max Rewind Dia | Max Roll Dia: 700mm, core shaft: 76mm |
Substrate Thickness | 30um-400um |
Max Web Width | 330mm |
Machine Dimension (LxHxW) | 3500×1900×1800mm |
Production Envirnoment | Temperature: 15-30 degree celsius |
Relative humidity: 40%-80% Non feezing | |
Power requirement | Voltage 3×380; +/-5%; 3 phase +G+N (Star connection) |
Frequency: 50/60Hz | |
Current: 25 Amperes | |
Capacity: 13.5KVA | |
Production: 30KVA | |
Cable Requirement: Min 50A | |
Machine Weight | approx 2500kg |
More product applications to create high added value
The product application covers liquor, red wine, cosmetics, fast moving consumer goods and other fields, it is more competitive especially in the wine label, flexible package, and washi tape, journal, calendar and other products. It can not only increase the added value of customers' products, but also enhance its unique market competitiveness.
More product applications to create high added value
The product application covers liquor, red wine, cosmetics, fast moving consumer goods and other fields, it is more competitive especially in the wine label, flexible package, and washi tape, journal, calendar and other products. It can not only increase the added value of customers' products, but also enhance its unique market competitiveness.
