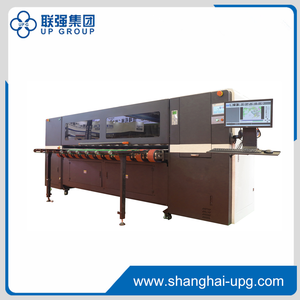

LQ-MD 430 Corrugated Box Digital Inkjet Printer

• Eco-friendly inkjet printing, water-based dyes and pigment inks are widely used in food and beverage packaging.

• Change jobs in seconds with no plates making or ink cleanout.

• Variable Data and Personalized Printing within the same job.

• Using all-steel integrated frame with solid stability to keep printing accuracy.

Model	LQ-MD 430
Printing mode	Single pass
Printhead	HP452 Width: 215mm
Inkjet type	Thermal inkjet
Max printing width	430mm (expandable to 645mm, 860mm)
Resolution	1200x248dpi; 1200x671dpi; 1200×1340dpi
Printing speed	30-40m/min, depends on printing resolution Up to 32pcs 48"×24" pcs per minute
Color	CMYK
Ink type	Water based dye ink or pigment ink
Ink tank	1000ml per color
Max media thickness	80mm
Platform	Vacuum absorbing platform
Ink delivery system	Secondary cartridges with ink circulation
Operating environment	15-35℃, RH: 50~70%
Weight	800kg
Dimensions	2530×2700×1500mm

Model	LQ-MD 430
Printing mode	Single pass
Printhead	HP452 Width: 215mm
Inkjet type	Thermal inkjet
Max printing width	430mm (expandable to 645mm, 860mm)
Resolution	1200x248dpi; 1200x671dpi; 1200×1340dpi
Printing speed	30-40m/min, depends on printing resolution Up to 32pcs 48"×24" pcs per minute
Color	CMYK
Ink type	Water based dye ink or pigment ink
Ink tank	1000ml per color
Max media thickness	80mm
Platform	Vacuum absorbing platform
Ink delivery system	Secondary cartridges with ink circulation
Operating environment	15-35℃, RH: 50~70%
Weight	800kg
Dimensions	2530×2700×1500mm
