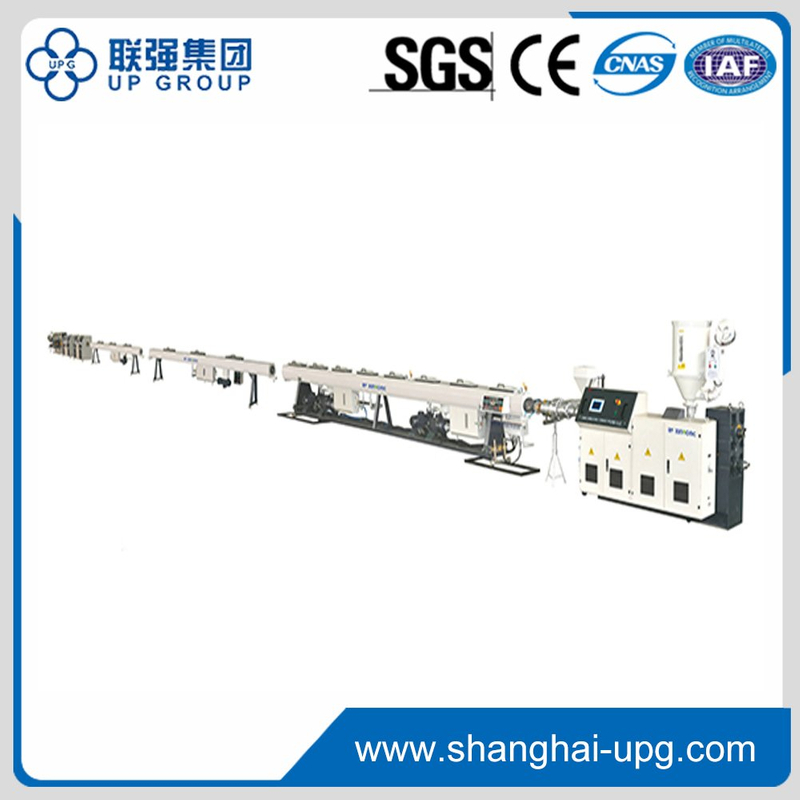

LQ-PE/PE-RT
LQ
LQG63 Dust-free Knife Cutter: Using annular knife cutting structure, realizing dust-free and low-noise cutting in high speed.
LQY63 Belt Haul-off: Up-and-down belts are specially used for hauling small pipe in high speed. Hauling speed:2.0-25m/min.
LQ63-S and LQ32-S Winder: Double station winding, frequency-conversion motor control, automatic alignment device. Winder JQ32-S winding speed 2.0-25m/min.
LQ63 Spray Cooling Tank:Nozzles can make high speed vortex spray to good and even cooling on pipe surface.
LQ63 Disc CalibrationSleeve: Suitable for small pipe extrusion in high speed
LQ65x33A Sihngle scrtew extruder:SIMENS micro-computer control system
LQ30X25 Single Screw Extruder:Specially used for co-extrusion of 1-4 color stripe(s)
LQ63-9 Vacuum Tank:Adopting nylon half moon panel for good pipe roundness inhigh speed.
LQ63/LQ63 Die Head:Lattice baskestbal type and spiral die head for choice
LQG63 Dust-free Knife Cutter: Using annular knife cutting structure, realizing dust-free and low-noise cutting in high speed.
LQY63 Belt Haul-off: Up-and-down belts are specially used for hauling small pipe in high speed. Hauling speed:2.0-25m/min.
LQ63-S and LQ32-S Winder: Double station winding, frequency-conversion motor control, automatic alignment device. Winder JQ32-S winding speed 2.0-25m/min.
LQ63 Spray Cooling Tank:Nozzles can make high speed vortex spray to good and even cooling on pipe surface.
LQ63 Disc CalibrationSleeve: Suitable for small pipe extrusion in high speed
LQ65x33A Sihngle scrtew extruder:SIMENS micro-computer control system
LQ30X25 Single Screw Extruder:Specially used for co-extrusion of 1-4 color stripe(s)
LQ63-9 Vacuum Tank:Adopting nylon half moon panel for good pipe roundness inhigh speed.
LQ63/LQ63 Die Head:Lattice baskestbal type and spiral die head for choice
Model | Pipe Range(mm) | Hauling Speed (m∕min) | Total Length(m) | Output Capacity (kg∕h) | Total Power (kW) |
LQ-PE/PE-RT | Φ16-Φ63 | 2.0-25 | 42 | 200-250 | 110 |
Model | Pipe Range(mm) | Hauling Speed (m∕min) | Total Length(m) | Output Capacity (kg∕h) | Total Power (kW) |
LQ-PE/PE-RT | Φ16-Φ63 | 2.0-25 | 42 | 200-250 | 110 |
