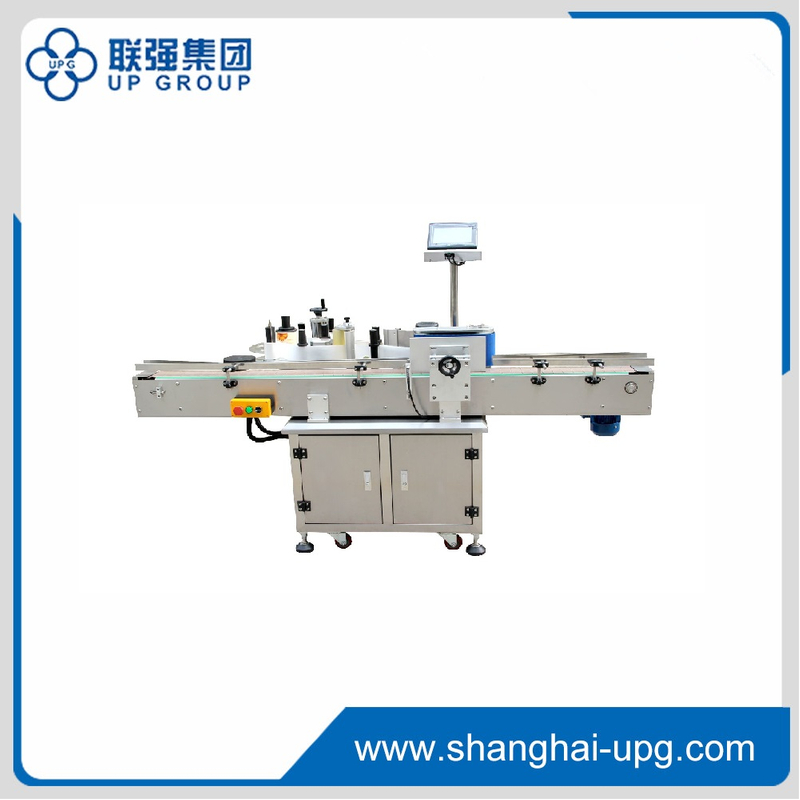

LQ-RL Automatic Round Bottle Labeling Machine

This machine is used to label the adhesive labe on the round bottle. It can connected with other machines.

PDF Export

  • LQ-RL

  • UPG


1.Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.

2.Applicable products: products requiring labels or films on the circumferential surface.

3.Application Industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics and other industries.

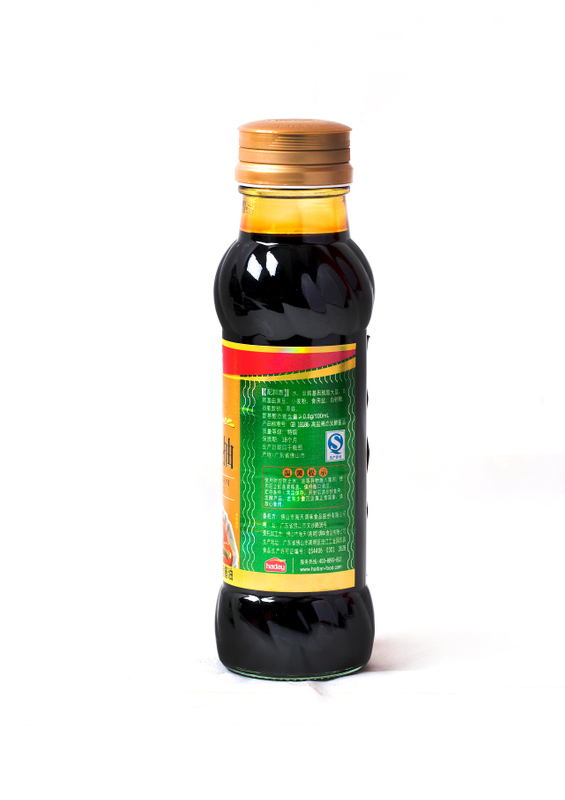

4.Application examples: PET round bottle labeling, plastic bottle labeling, mineral water labeling, glass round bottle, etc.




1. High labeling accuracy, good stability, flat labeling, no wrinkling and no bubbles;

2. The labeling speed, conveying speed and bottle separation speed can realize stepless speed regulation, which is convenient for the production personnel to adjust according to the actual needs;

3. The bottle stand-by labeling is adopted, which can be produced by a single machine or connected to an assembly line to realize unmanned labeling production;

4 . Stable mechanical structure and stable operation;

5. It has automatic bottle separation function, excessive bottle storage buffer function, circumferential positioning and labeling function, and each function can be freely selected on demand through the human-computer interaction interface;

6. The structural combination of mechanical adjustment part and the ingenious design of label winding make it convenient to fine tune the degree of freedom of labeling position (it can be completely fixed after adjustment), which makes the conversion between different products and label winding simple and time-saving; It has the function of no labeling without objects;

7. The main materials of the equipment are stainless steel and high-grade aluminum alloy, with firm overall structure and elegant appearance;

8. It is controlled by standard PLC + touch screen + stepping motor + standard sensor electronic control system, with high safety factor, convenient use and simple maintenance;

9. Complete equipment supporting data (including equipment structure, principle, operation, maintenance, repair, upgrading and other explanatory data) to provide sufficient guarantee for the normal operation of the equipment;

10. With production counting function.

Machine name

LQ-RL Automatic Round Bottle Labeling Machine

Power supply

220V / 50Hz / 1kw / 1Ph


40-50 pcs/min

Labeling accuracy

±1 mm

Product size

Dia.:20-80 mm

Label size

W:15-140 mm,L:≧20 mm

Inner roll

76 mm

Outer roll

300 mm

Machine size

2000mm * 1000mm * 900mm

Machine weight

200 KG
