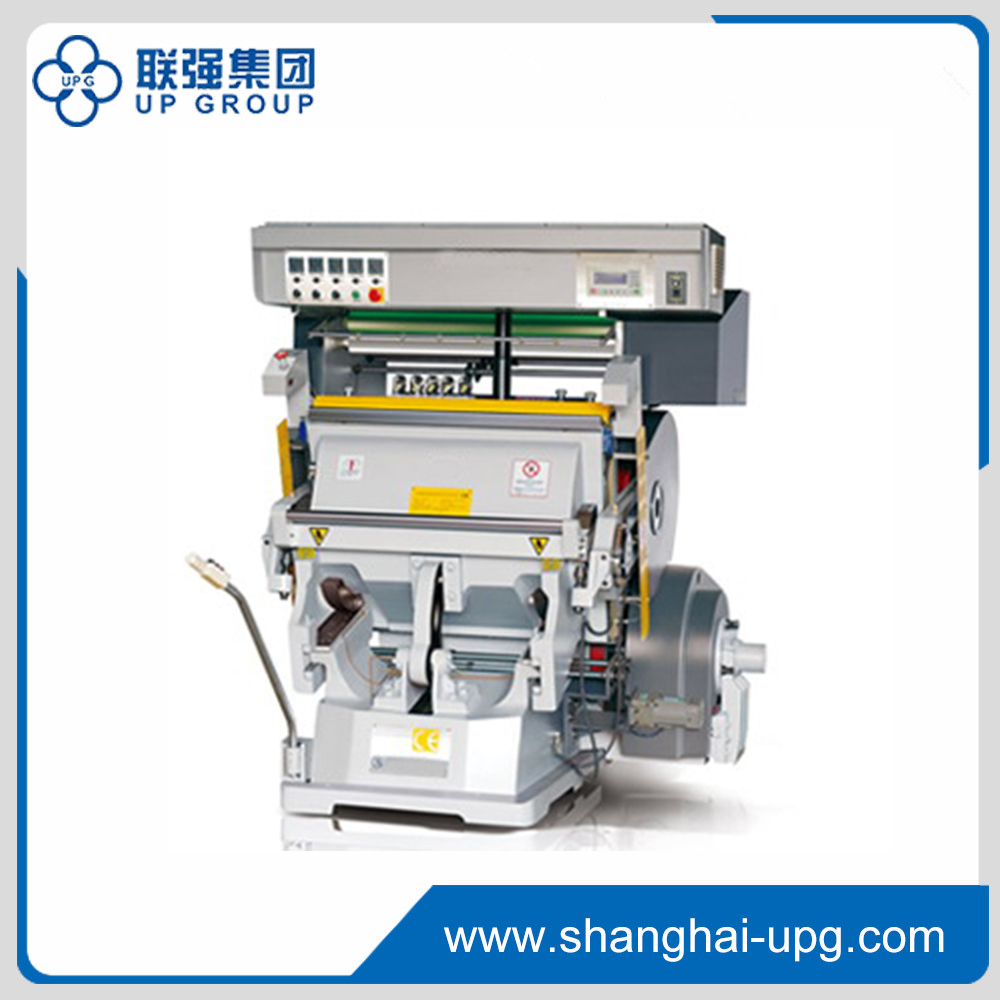

LQTYMC-203 Type PLC Control Foil Stamping Die Cutting Machine

  • LQTYMC-203

  • UPG

1. LQTYMC series of hot foil stamping machines have the function of hot stamping, die cutting and concave-convex forming.
2. The display system with LCD/touch screen greatly improves the productivity.
3. This machine adopts PLC microcomputer control, 2 group to 3 group’s stepper motor drive for reliable operation and convenient adjustment
4. The temperature control is divided by 4 to 5 zones. Fast and even heating, low power consumption, constant temperature control, real-time temperature display function which improves the hot stamping quality

Model LQTYMC-203
Max-Plate Efficient Breadth 930×660mm
Max. Stamping Size 930×660mm
Groups Of Feeding Foil 3
Max. Length Of Feeding 660mm
Leapfrogging Scope 0-99
Power Of Heating Plate 12.5kw
Total Power 16.5kw
Main Motor Power 4kw 4pole
Speed 25×2(sheets/min)
Gross Weight 3600kg
Individual Zones Of Heating Plate 5
Overall Dimensions (L×W×H) 1960×1760×;2060mm
