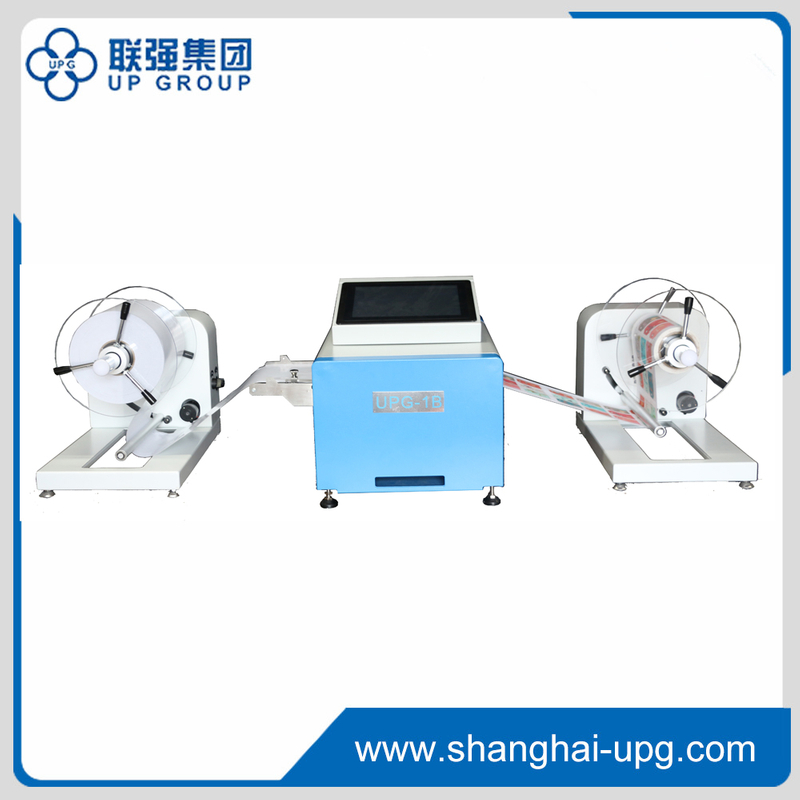

UPG-1B
UPG
· Latest Memjet Northstar technology
· Small footprint, maximizing use of space
· Latest DN ink,2x time PH life
· Flexible/on demand printing
· High speed-without quality loss
· Vibrant colors
· Full-size, intuitive, touchscreen display(Optional)
· Roll-to-roll or roll-to-cut printing mode
· All-steel construction for durability in a commercial environment
· Environmentally-friendly water based inks and low power consumption
· No heat or ozone emission
· Wide range of media-paper, PP, PE, canvas, Films, self adhesive labels
· Simple maintenance routines lead to low overall cost of production
· Speed and quality to enable shorter turnaround times
UPG
· Latest Memjet Northstar technology
· Small footprint, maximizing use of space
· Latest DN ink,2x time PH life
· Flexible/on demand printing
· High speed-without quality loss
· Vibrant colors
· Full-size, intuitive, touchscreen display(Optional)
· Roll-to-roll or roll-to-cut printing mode
· All-steel construction for durability in a commercial environment
· Environmentally-friendly water based inks and low power consumption
· No heat or ozone emission
· Wide range of media-paper, PP, PE, canvas, Films, self adhesive labels
· Simple maintenance routines lead to low overall cost of production
· Speed and quality to enable shorter turnaround times
UPG
Model | UPG-1B |
Technology
| Single pass thermal inkjet Four colors- (CMYK) |
Imaging
| 5 thermal printheads Five channels (CMYKK) 70400 nozzles/head 1.2PL droplet 1.2PL 3 billion ink drops per second |
Print quality | output resolution of 1600×1600 or 800×1600 |
Print speed | 18m/min (12ips); 9m/min (6ips) |
Media handing | Blackmark and gap sensing Media thickness: 0.13-0.33mm Roll-to-cut, roll-to-roll printing Automatic paper width detection Automatic paper position detection |
Ink cartridges
| Dye based aqueos inks, Colors: CMYKK; Cartridge size: 250ml |
Power supply | Standard 220V |
Power consumption | 250-300w |
Finishing
| Built-in X-axis cutter Auto unwinder Auto rewinder |
Interface | USB 2.0 |
Controller confuguration (UPG1-B)
| CPU G5400 4GB, DDR4 memory DDR4 1TB SSD Intel Integrated Graphics |
Supported data formats
| Native PDF, TIFF, JPEG, EPS. PNG, PS, PRN, CXF, FS, PD, FPX, PCD, PCT. PICT, WMF, TGA, BMP, PCX, PLT |
Environmental specification
| Operating temperature:15℃-30℃ Maximum rate of change :+_0.5℃/minute Humidity :20%-80%RH non-condensing Atmospheric pressure : 70kpa-106kpa |
User interface | Local language support |
Dimension | 6200×3200×5200mm |
Total Weight | 45kg |
