DUMAX-330 Roll-to-Roll High-speed Digital Printing Machine

Adopting the latest aqueous printing technology, automatic correction system and constant tension control of paper path ensure the easy operation and adjustment.

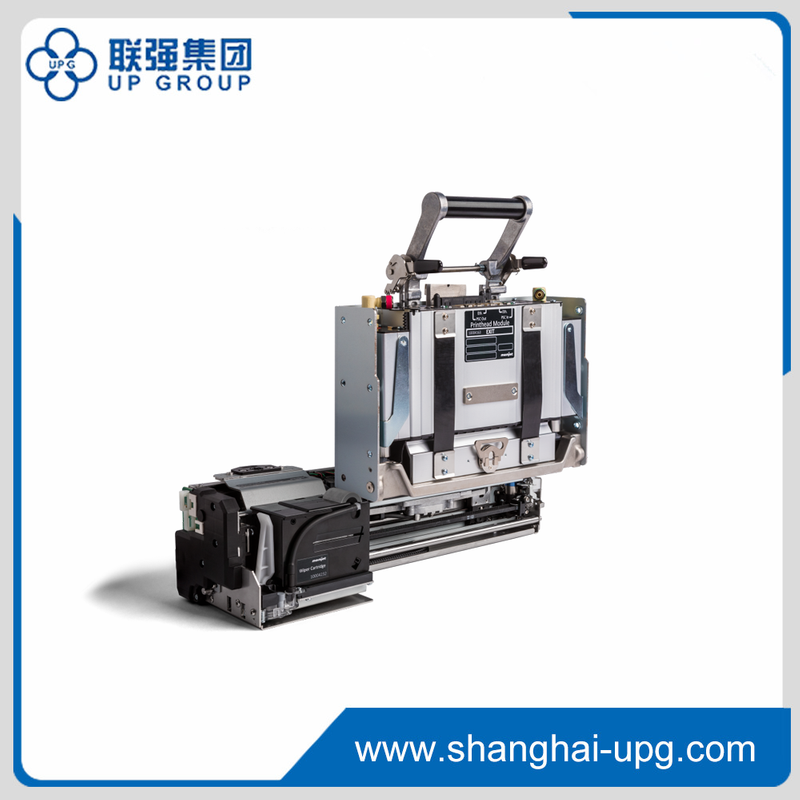

Automatic intelligent inkjet cleaning and maintenance module releases cumbersome manual operation, and effectively extends the life of the printhead.
Lower printing cost realizes various printing application.
5x nozzle redundancy solves the problem of plugging, and provides high printing quality.
Environmentally friendly aqueous pigment ink with good light and water resistance can be supplied in independent 10L large-capacity quick-replaceable ink drum or more larger container according to customers’ requirements.
More than 100 meters/minute printing speed, ultra-high resolution and excellent color reproduction combines a new generation of digital printer with high quality and high production efficiency.

Quantity:
  • DUMAX-330
  • UPG

Feature:

Powered by the Memjet DuraLink  aqueous printing technology, Adopting automatic correction system and constant tension control of paper path ensure the easy operation and adjustment.

Automatic intelligent inkjet cleaning and maintenance module releases cumbersome manual operation, and effectively extends the life of the printhead.

Lower printing cost realizes various printing application.

5x nozzle redundancy solves the problem of plugging, and provides high printing quality.

Environmentally friendly aqueous pigment ink with good light and water resistance can be supplied in independent 10L large-capacity quick-replaceable ink drum or more larger container according to customers’ requirements.

More than 100 meters/minute printing speed, ultra-high resolution and excellent color reproduction combines a new generation of digital printer with high quality and high production efficiency.

label solution

Specification

Model

DUMAX-330

Max. resolution

1600*1585dpi

Max. speed

100m/min

Printing color

CMYK

Work flow

Color management and raster image processor (RIP)

Overprint accuracy

±0.05mm

Max. printing width

222.8mm

Max. Paper width

300mm

Min. paper width

30mm

Max. web diameter

600mm

Media types

Various coated and uncoated web media

Media weight

60-250g/m2

Ink type

Environmentally friendly aqueous pigment ink

Power

45kw

Dimensions

3216*1759*1805mm

Weight

3000kg

print samples
