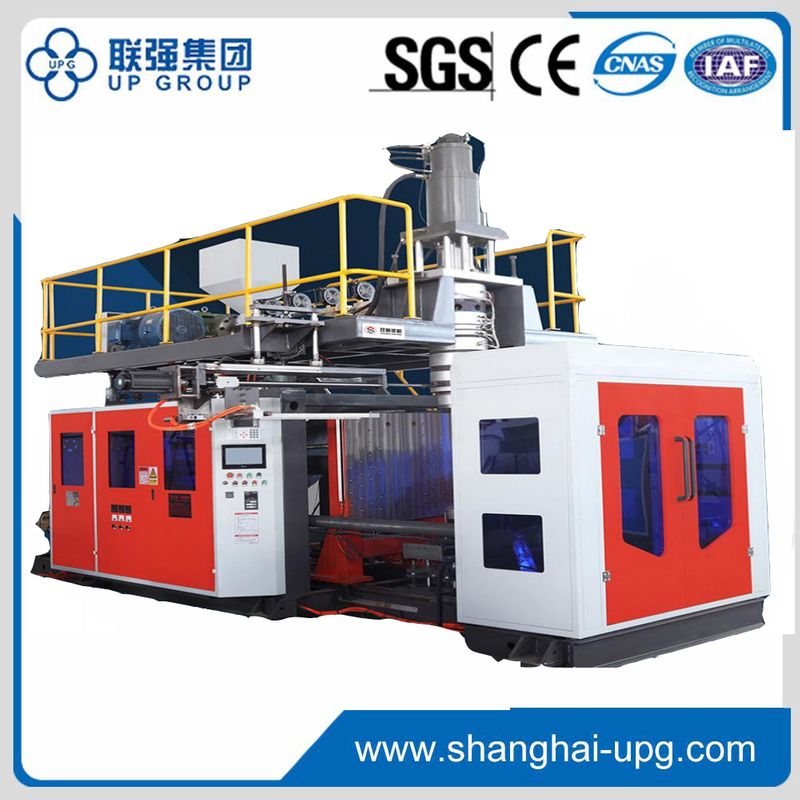

LQ-100/110series blow molding machine (German model)

Linear guide support single frame,finite element analysis of the design, to ensure adequate clamping force, not up mode.
Availability:
Quantity:
  • LQ-100/110series
  • LQ

1:Linear guide support single frame,finite element analysis of the design, to ensure adequate clamping force, not up mode.

2: Large opening stroke,central locking,locking force equilibrium,no deformation.

3.High accuracy without the fusion line storage type die head,easy to change color,with servo wall thickness control system,improve product quality,reduce production costs.

4.optional with multi function under blowing mechanism,automatic machine to take the product of a variety of auxiliary device,realize the production process is highly automated.

5.The whole system is equipped with safety protection grating, to ensure the safety of the production process without accident.



parameter

LQ-100/110series

LQ-100/110series

Material

PE,PP,EVA,ABS,PS…

PE,PP,EVA,ABS,PS…

Max container capacity

120 L

160 L

Output(dry cycle)

360 pc/hr

360 pc/hr

Machine Dimension(LxWxH)

6800*3600*5200 M

7500*3600*5800 M

Total weight

16T

20T


Clamping Unit



Clamping force

400 KN

680 KN

Platen opening stroke

600-1400 MM

600-1400 MM

Platen size(WxH)

1100*1100 MM

1400*1600 MM

Max mould size(WxH)

900*1400 MM

1200*1900 MM

Mold thickness

610-880 MM

610-880 MM


Extruder unit



Screw diameter

100 MM

110 MM

Screw L/D ratio

25 L/D

25 L/D

Melting capacity

180 KG/HR

220 KG/HR

Number of heating power

30 KW

36 KW

Extruder heating power

5 Zone

6 Zone

Extruder driving power

50 KW

75 KW


Die head



Number of heating zone

5 Zone

5 Zone

Power of die heating

25 KW

35 KW

Max die-pin diameter

450 MM

550 MM


Power



Max drive

70 KW

120 KW

Total power

110 KW

130 KW

Fan power for screw

4 KW

4.8 KW

Air pressure

0.8-1.2 Mpa

0.8-1.2 Mpa

Air consumption

0.8 m³/min

0.8 m³/min

Average energy consumption

42 KW

56KW

Accumulator capacity

12 L

20 L
