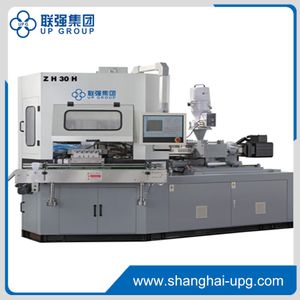

LQ-Injection Blow Molding Machine

Injection Blow Molding Machine

Availability:

Quantity:



Inquire Add to Basket PDF Export

Injection Blow Molding Machine

Performance

1. Hydraulic system adopt electro-hydraulic hybrid servo system.can save 40% power than usual

2.Rotation device.ejection device and flipping device adopt lasted servo motor.it can improve the performance stable, fast, no noise

3.The screw is driven by servo motor.ensure machine action efficient. speed highly and energy saving

4.Apply the double vertical pole and single horizontal beam to make enough rotation space.make the mold installation easy and simple

Model:

LQ-IBM30H/50H/80H

Material:suitable for majority kind of thermoplastic resins such as HDPE,LDPE,PP,PS,EVA and so on

No.	Item	Unit	Data
1	Dia. of screw	mm	40
2	Screw L/D		24
3	Shot volume	cm³	200
4	Injectionweight	g	140
5	Max.Injection pressure	Mpa	175
6	max.screwstroke	mm	165
7	screw speed	rpm	10-260
8	heating capacity	Kw	6
9	No of heating zone	Qty	3
10	clamping&blowingsystem
11	Clampingforceof injection	KN	300
12	Clampingforce of blowing	KN	80
13	opening stroke of moldplanten	mm	120
14	lifting height of rotary table	mm	60
15	max.planten size(L x W)	mm	420x300
16	min.mold thickness	mm	180
17	Heatingcapacity of mold	Kw	1.2-2.5
18	stripping system
19	stripping stroke	mm	204
20	driving system
21	motor power	Kw	11.4
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.005-0.8
25	max.bottle height	mm	≤200
26	max.diaof bottle	mm	≤100
27	other
28	dry cycle	s	3
29	MinAir pressure	Mpa	1.2
30	discharge rateof compressed air	m³/min	＞0.8
31	water flowage	m³/h	3
32	total rated power withOut mold heating	Kw	18.5
33	dimension(L x Wx H)	mm	3050x1300x2150
34	net weight	T	3.6

No.	Item	Unit	Data
1	Dia. of screw	mm	40
2	Screw L/D		24
3	Shot volume	cm³	200
4	Injectionweight	g	140
5	Max.Injection pressure	Mpa	175
6	max.screwstroke	mm	165
7	screw speed	rpm	10-260
8	heating capacity	Kw	6
9	No of heating zone	Qty	3
10	clamping&blowingsystem
11	Clampingforceof injection	KN	300
12	Clampingforce of blowing	KN	80
13	opening stroke of moldplanten	mm	120
14	lifting height of rotary table	mm	60
15	max.planten size(L x W)	mm	420x300
16	min.mold thickness	mm	180
17	Heatingcapacity of mold	Kw	1.2-2.5
18	stripping system
19	stripping stroke	mm	204
20	driving system
21	motor power	Kw	11.4
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.005-0.8
25	max.bottle height	mm	≤200
26	max.diaof bottle	mm	≤100
27	other
28	dry cycle	s	3
29	MinAir pressure	Mpa	1.2
30	discharge rateof compressed air	m³/min	＞0.8
31	water flowage	m³/h	3
32	total rated power withOut mold heating	Kw	18.5
33	dimension(L x Wx H)	mm	3050x1300x2150
34	net weight	T	3.6

Product volume(ML)	8	15	20	40	60	80	100
Cavity quantity(pcs)	9	8	7	5	5	4	4

Product volume(ML)	8	15	20	40	60	80	100
Cavity quantity(pcs)	9	8	7	5	5	4	4
