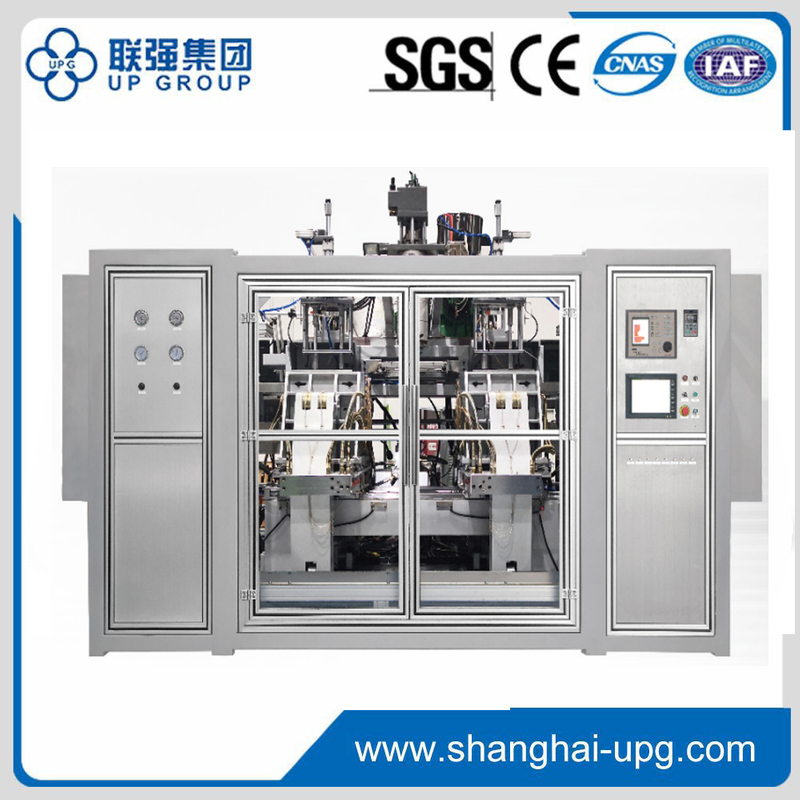

LQ-100-25LII Fully Automatic 25LII Blow Molding Machine

High speed servo system blow molding machine for bottle up to 2SL. High production about pcs/day from double station with single die head. Crank-arm mould locking unit to provide more clamping force than common models.
Availability:
Quantity:
  • LQ-100-25LII
  • LQ

Technical Characteristics:

High speed servo system blow molding machine for bottle up to 2SL. High production about pcs/day from double station with single die head. Crank-arm mould locking unit to provide more clamping force than common models.

Fully automatic production line,including auto de-flashing,waste material and final bottles delivery,valid connection to other auxiliary equipment.





Main   Parameters

LQ-100-25LII

Max.Product   Volume

30 L

Station

Double

Suitable   Raw Material

PE PP

Dry   Cycle

400x2 PCS/H

Screw   Diameter

100 mm

Screw   L/D Ratio

24/28

Screw   Drive power

55/75 KW

Screw   Heating Power

19.4/22 KW

Screw   Heating Zone

4/5

HDPE   Output

150/190

Oil   Pump Power

22 KW

Mold   Open &Close Stroke

420-920 mm

Mold   Moving Stroke

850 mm

Clamping   Force

180 Kn

Mold   Template Size

620x680 WXH(mm)

Max.Mold   Size

600x650 WXH(mm)

Die   Head Type

Continue   die head

Max.die   diameter

260 mm

Die   head heating power

10 KW

Die   head heating zone

5 ZONE

Blowing   pressure

0.6 MPA

Air   consumption

0.8 M3/MIN

Cooling   water pressure

0.3 MPA

Water   consumption

90 L/MIN

Machine   dimension

(LXWXH)   4.8X3.9X3.1 M

Machine

17.5 Ton
