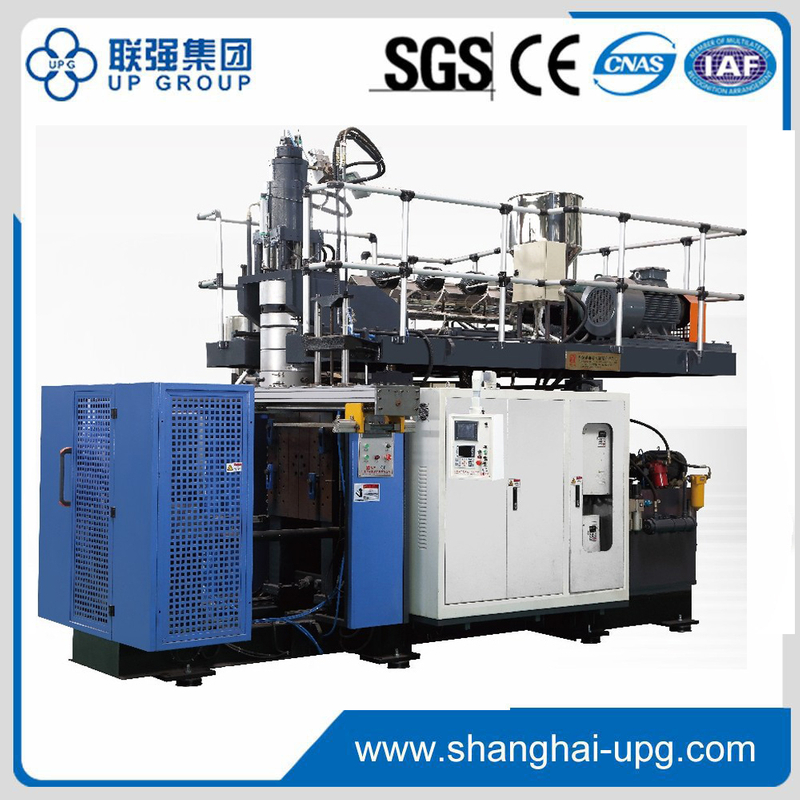

LQ90-60L
LQ
Technical Characteristics:
Fully automatic energy saving blow molding machine, with accumulator die head capacity 8L;
Suitable to produce volume up to 60L, specially oil jerrycan, sea food packages, cone tank,plastic mannequin....
Unique3 cylinder+2 bar clamping system, stable structure,balanced force distribution,longer working period;
Adobe good quality linear guide rail, faster moving speed and lower energy cost,higher output.
Technical Characteristics:
Fully automatic energy saving blow molding machine, with accumulator die head capacity 8L;
Suitable to produce volume up to 60L, specially oil jerrycan, sea food packages, cone tank,plastic mannequin....
Unique3 cylinder+2 bar clamping system, stable structure,balanced force distribution,longer working period;
Adobe good quality linear guide rail, faster moving speed and lower energy cost,higher output.
Main Parameters | UNIT | LQBA90-60L |
Max.Product Volume | L | 60 |
Suitable Raw Material | PE PP | |
Dry Cycle | PCS/H | 500 |
Screw Diameter | mm | 90 |
Screw L/D Ratio | L/D | 24 |
Screw Drive power | KW | 37 |
Screw Heating Power | KW | 18 |
Screw Heating Zone | Zone | 4 |
HDPE Output | Kg/h | 140 |
Oil Pump Power | KW | 18.5 |
Clamping Force | Kn | 350 |
Mold Open &Close Stroke | mm | 500-1200 |
Mold Template Size | WxH(mm) | 950x900 |
Max.Mold Size | WXH(mm) | 700x900 |
Die Head Type | Accumulator die head | |
Accumulator Capacity | L | 8 |
Max.die diameter | mm | 320 |
Die head heating power | KW | 17 |
Die head heating zone | ZONE | 4 |
Blowing pressure | MPA | 0.6 |
Air consumption | M3/MIN | 1.0 |
Cooling water pressure | MPA | 0.3 |
Water consumption | L/MIN | 85 |
Machine dimension | M | (LXWXH) 5.1X2.5X3.9 |
Machine | Ton | 12.8 |
Main Parameters | UNIT | LQBA90-60L |
Max.Product Volume | L | 60 |
Suitable Raw Material | PE PP | |
Dry Cycle | PCS/H | 500 |
Screw Diameter | mm | 90 |
Screw L/D Ratio | L/D | 24 |
Screw Drive power | KW | 37 |
Screw Heating Power | KW | 18 |
Screw Heating Zone | Zone | 4 |
HDPE Output | Kg/h | 140 |
Oil Pump Power | KW | 18.5 |
Clamping Force | Kn | 350 |
Mold Open &Close Stroke | mm | 500-1200 |
Mold Template Size | WxH(mm) | 950x900 |
Max.Mold Size | WXH(mm) | 700x900 |
Die Head Type | Accumulator die head | |
Accumulator Capacity | L | 8 |
Max.die diameter | mm | 320 |
Die head heating power | KW | 17 |
Die head heating zone | ZONE | 4 |
Blowing pressure | MPA | 0.6 |
Air consumption | M3/MIN | 1.0 |
Cooling water pressure | MPA | 0.3 |
Water consumption | L/MIN | 85 |
Machine dimension | M | (LXWXH) 5.1X2.5X3.9 |
Machine | Ton | 12.8 |
