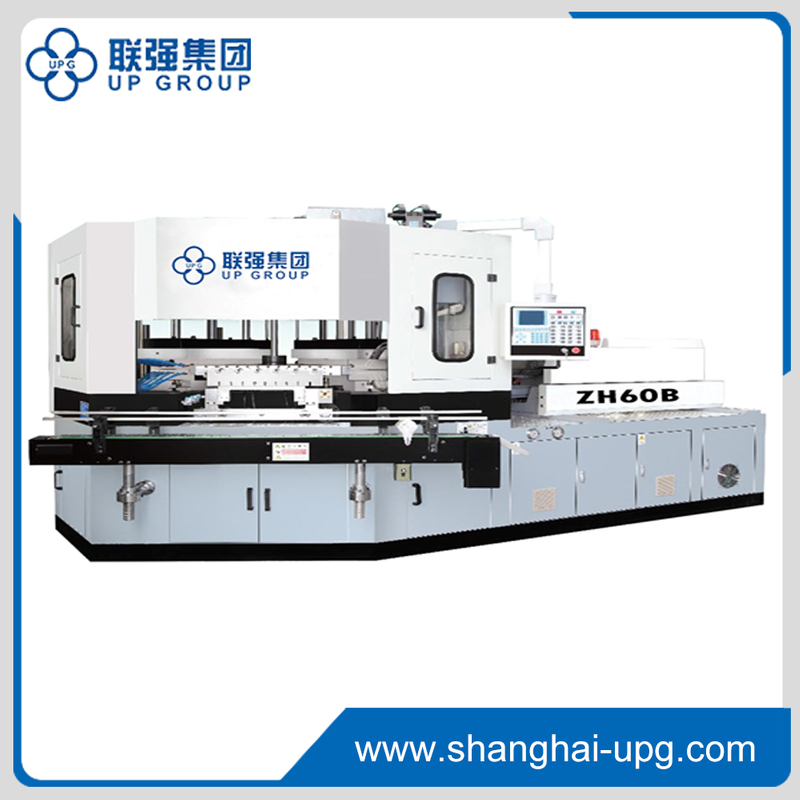

LQ-60B Injection Blow Molding Machine

This machine can produce bottles from 3ml to 1000ml. Therefore it is widely applied in many packing business, such as Pharmaceutics,food,cosmetics,gift and some daily products,etc.

PDF Export

  • LQ-60B

  • LQ


  • Hydraulic system adopt electro-hydraulic hybrid servo system, can save 40%power than usual

  • Rotation device, ejection device and flipping device adopt lasted servo motor, it can improve the performance stable, solve the problem of oil leak which is caused by the seal aging deterioration

  • Apply the double vertical pole and single horizontal beam to make enough rotation space, make the mold installation easy and simple


Main technical parameters

Model  ZH60B
Product size Max. Product volume 15~850ML
Max product height 210mm
Max product diameter 120mm
Injection system
Dia. of screw 55mm
Screw L/D 24
Max theoretical shot volume 430cm3
Injection weight 400g
Max screw stroke 220mm
Max screw speed 10-235rpm
Heating capacity 13KW
No. of heating zone 3 zone
Clamping system

Injection clamping force 600KN
Blow clamping force 152KN
Open stroke of mold platen 140mm
Lift height of rotary table 75mm
Max platen size of mold 780*390mmL×W
Min mold thickness 280mm
Mold heating power 5Kw
Stripping system Stripping stroke 220mm
Driving system Motor power 30Kw
Hydraulic working pressure 14Mpa
Other Dry cycle 4.5s
Compressed air pressure 1.2 Mpa
Compressed air discharge rate >0.8 m3/min
Cooling water pressure 3.5 m3/H
Total rated power with mold heating 45.5kw
Overall dimension(L×W×H) 4150*1850*2400mm
Machine weight Approx. 10T

Materials: suitable for majority kind of thermoplastic resins such as HDPE, LDPE, PP, PS, EVA and so on.
Cavity number of one mouldcorresponding to product volume (for reference)

Product volume(ml) 15 20 40 60 100 120 200
Cavity quantity 16 14 14 12 10 9 7
