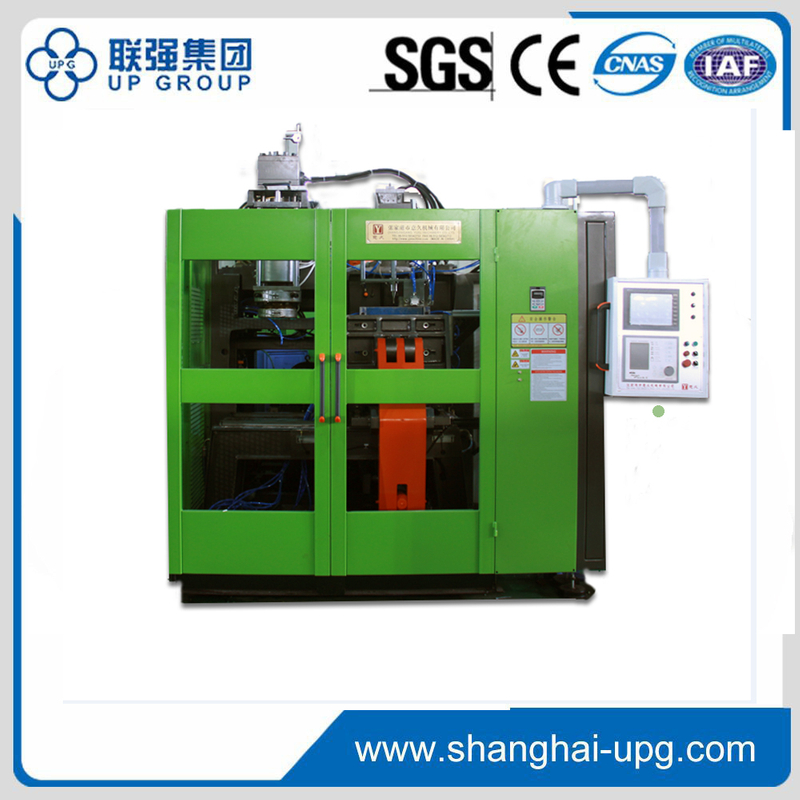

LQH60-5L 5L
LQ
Toggle type clamping system, bigger open stroke, suitable for in mold label-ling machine
Toggle type clamping system, bigger open stroke, suitable for in mold label-ling machine
Basic Parameter | |
Applicable Material | PE, PP.... |

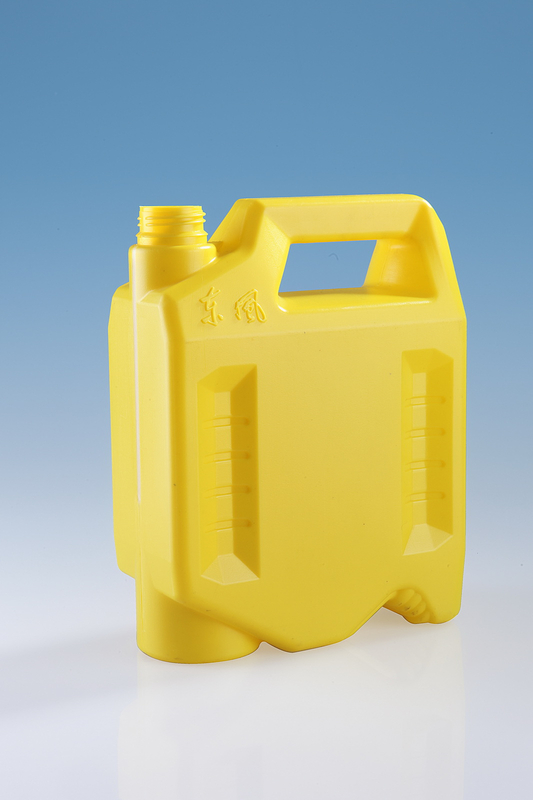

Max. Product Volume | One die head for 5L |
Machine Size (L×W×H) | 3.0×1.7×2.5 (M) |
Machine Weight | 3800KG |
Total Power | 36.5KW |
Power Consumption | 20KW/H |
Plasticizing System | |
Specification | good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
Speed Reducer | hard-teeth, low noise & wear-resistant speed reducer |
Machine Barrel Screw | ∮60mm，L/D=24, 38CrMoALA high quality nitrogen steel |
Plasticizing | 65Kg/H |
Heating Zone | 3 Zone Casting, aluminum heater |
Heating Power | 2.7×3=8.1KW |
Extrusion Motor | three phase asynchronism motor (415V、50HZ),15KW |
Cooling fan | 3 zones 85W |
Extrusion System | |
Specification | One head |
Max. Dia. of Die Head | ∮140mm |
Heating Zone | 3 zone heat coil of stainless steel |
Heating Power | 6KW |
Die Heat Huff | Pressure and capacity can be adjusted |
Preform Adjustment | By manual |
Open and Clamping System | |
Clamping Force | 65KN |
Mold Move Stroke | 164～700mm |
Platen Dimension | W×H:320×380mm, |
Mold thickness range | 230~320（mm） |
Electric Control System | |
Specification | Standard PLC and colorful touch screen for blow molding machine |
Touch Screen | Colorful touch screen, auto alarm, diagnose the system |
Temperature Control | Self-regulation |
Temperature Module | Taiwan I-7018RP automatic temperature module, digital |
Action control | Japan Mitsubishi, programmable |
Protection Function | Automatic alert and breakdown feedback double protection of mechanical apparatus |
Hydraulic System | |
Specification | Proportion pressure controller changing direction quickly and softly |
Oil pump motor | three phase a synchronism (380V、50HZ),7.5KW |
Hydraulic pump | Vane pump |
Hydraulic valve | imported hydraulic components |
System pressure | 14 MP |
Pipes | Bilayerhigh pressure blast pipes |
Cooling Mode | Water cool and oil cooler separately |
Pneumatic System | |
Specification | imported famous brand pneumatic pressure |
Air Pressure | 0.7Mpa |
Cooling System | |
Specification | mold、barrel、oil box adopt independent cooling waterway |
Cooling Medium | water |
Water Pressure | 0.2-0.6MPa |
Parison controller system (Optional) | |
Specification | Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine. Japan MOOG 100points can be adopt to the machine |
