LQ80-SLll/8
LQ
Technical Characteristics:

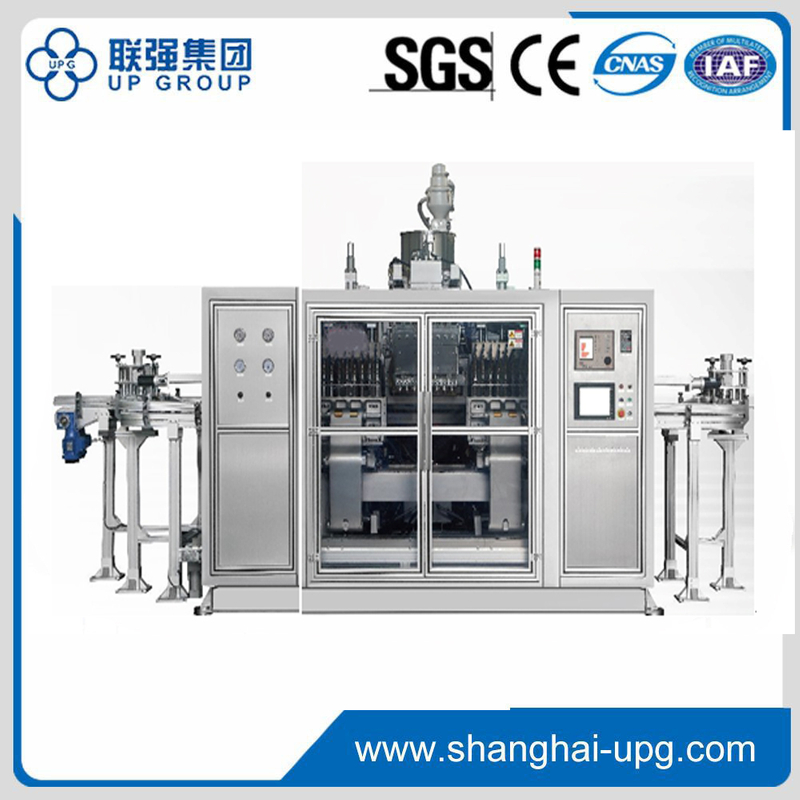

High speed servo system blow molding machine for bottles up to 500m;l High production about 110000 pcs/day from double station with 8die heads; Crank-arm mould locking unit to provide more clamping force than common models;
Fully automatic production line, including auto de-flashing, waste material
and final bottles delivery,valid connection to other auxiliary equipments.
Technical Characteristics:
High speed servo system blow molding machine for bottles up to 500m;l High production about 110000 pcs/day from double station with 8die heads; Crank-arm mould locking unit to provide more clamping force than common models;
Fully automatic production line, including auto de-flashing, waste material
and final bottles delivery,valid connection to other auxiliary equipments.
Main Parameters | UNIT | LQYJHT80-5LII/8 |
Max.Product Volume | ML | 500 |
Station | Double | |
Dry Cycle | PCS/H | 1400 |
Screw Diameter | mm | 80 |
Screw L/D Ratio | L/D | 24 |
Screw Drive Power | KW | 30 |
Screw Heating Power | KW | 3.85*4 |
Screw Heating Zone | Zone | 3 |
HDPE Output | Kg/h | 100 |
Oil Pump Power | KW | 18.5 |
Clamping Force | Kn | 70 |
Mold Stroke | mm | 150-330 |
Mold Moving Stroke | mm | 600 |
Template Size | WXH(mm) | 550x300 |
Center Distance | mm | 60 |
Max.die diameter | mm | 16 |
Die heating power | KW | 9.2 |
NO.of Heating Zone | Zone | 10 |
Blowing pressure | MPA | 0.6 |
Air consumption | M3/MIN | 0.6 |
Cooling water pressure | MPA | 0.3 |
Water consumption | L/MIN | 85 |
Machine size | M | (LXWXH) 4.95X3.3X2.6 |
Machine Weight | TON | 8 |
