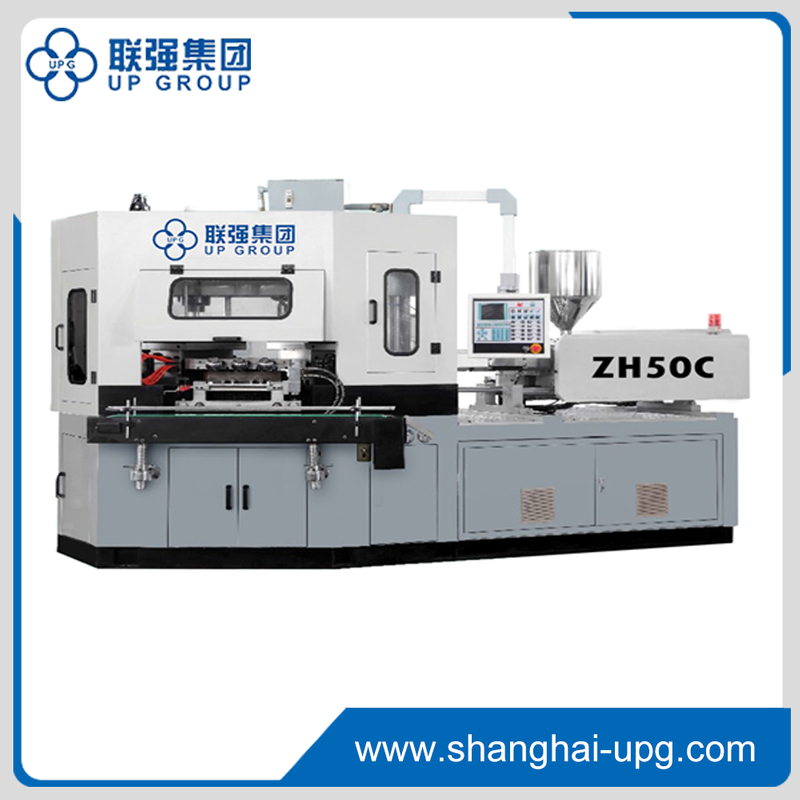

LQ-50C Injection Blow Molding Machine

This machine can produce bottles from 3ml to 1000ml. Therefore it is widely applied in many packing business, such as Pharmaceutics,food,cosmetics,gift and some daily products,etc.
Availability:
Quantity:

PDF Export

LQ-50C Injection Blow Molding Machine
  • LQ-50C

  • LQ

       Features:

  • Adopt Electro-Hydraulic Hybrid Servo System Can save 40% power than usual.

  • Apply the double vertical pole and single horizontal beam to make enough rotation space, longer bottles, make the mold installation easy and simple.

  • The injection mold adopt the double assistant cylinder open-close mold, ensure the stable and quick moving. The clamping force is three points equal distribution. High-speed hydraulic-added value can increase the clamping speed.


Main technical parameters

Model  LQ-ZH50C
Product size Max. Product volume 15~800ML
Max product height 200mm
Max product diameter 100mm
Injection system








Dia. of screw 50mm
Screw L/D 21
Max theoretical shot volume 325cm3
Injection weight 300g
Max screw stroke 210mm
Max screw speed 10-235rpm
Heating capacity 8KW
No. of heating zone 3 zone
Clamping system


Injection clamping force 500KN
Blow clamping force 150KN
Open stroke of mold platen 120mm
Lift height of rotary table 60mm
Max platen size of mold 580*390mmL×W
Min mold thickness 240mm
Mold heating power 2.5Kw
Stripping system Stripping stroke 210mm
Driving system Motor power 20Kw
Hydraulic working pressure 14Mpa
Other Dry cycle 3.2s
Compressed air pressure 1.2 Mpa
Compressed air discharge rate >0.8 m3/min
Cooling water pressure 3.5 m3/H
Total rated power with mold heating 30kw
Overall dimension(L×W×H) 3800*1600*2230mm
Machine weight Approx. 7.5T


Materials: suitable for majority kind of thermoplastic resins such as HDPE, LDPE, PP, PS, EVA and so on.

Cavity number of one mouldcorresponding to product volume (for reference)

Product volume(ml) 15 20 40 60 100 120 200
Cavity quantity 10 9 7 6 6 5 5
