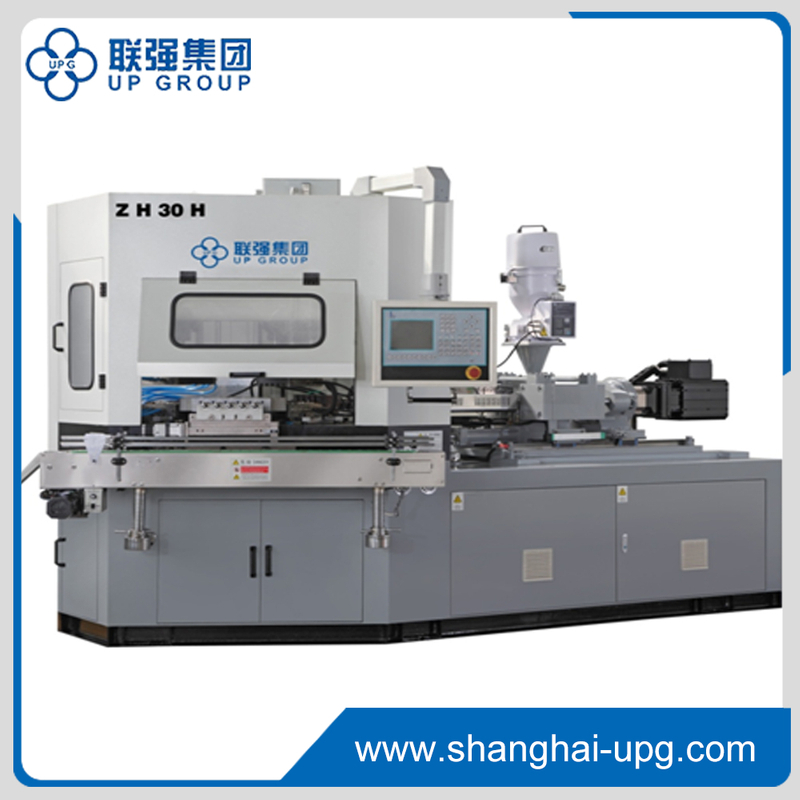

LQ-30H Injection Blow Molding Machine

Injection Blow Molding Machine
Availability:
Quantity:
  • LQ-30H

  • LQ

  This machine can produce bottles from 3ml to 1000ml. Therefore it is widely applied in many packing business, such as Pharmaceutics,food,cosmetics,gift and some daily products,etc.


Features:

  • Hydraulic system adopt electro-hydraulic hybrid servo system, can save 40%power than usual;

  • Rotation device, ejection device and flipping device adopt lasted servo motor, it can improve the performance stable , fast , no noise;

  • The screw is driven by servo motor, ensure machine action efficient , speed highly and energy saving;

  • Apply the double vertical pole and single horizontal beam to make enough rotation space, make the mold installation easy and simple.



Main technical parameters

Model LQ-30H Injection Blow Molding Machine
Product size Product volume 15-800ML
Max product height 180mm
Max product diameter 100mm
Injection system








Dia. of screw 40mm
Screw L/D 24
Max theoretical shot volume 200cm3
Injection weight 163g
Max screw stroke 165mm
Max screw speed 10-225rpm
Heating capacity 7.5KW
No. of heating zone 3 zone
Clamping system


Injection clamping force 300KN
Blow clamping force 80KN
Open stroke of mold platen 120mm
Lift height of rotary table 60mm
Max platen size of mold 420*300mmL×W
Min mold thickness 180mm
Mold heating power 1.2-2.5Kw
Stripping system Stripping stroke 180mm
Driving system Motor power 11.4Kw
Hydraulic working pressure 14Mpa
Other Dry cycle 3s
Compressed air pressure 1.2Mpa
Compressed air discharge rate >0.8 m3/min
Cooling water pressure 3 m3/H
Total rated power with mold heating 18.5kw
Overall dimension(L×W×H) 3050*1300*2150mm
Machine weight Approx. 3.6T


Materials: suitable for majority kind of thermoplastic resins such as HDPE, LDPE, PP, PS, EVA and so on.

Cavity number of one mouldcorresponding to product volume (for reference)

Product volume(ml) 8 15 20 40 60 80 100
Cavity quantity 9 8 7 5 5 4 4
