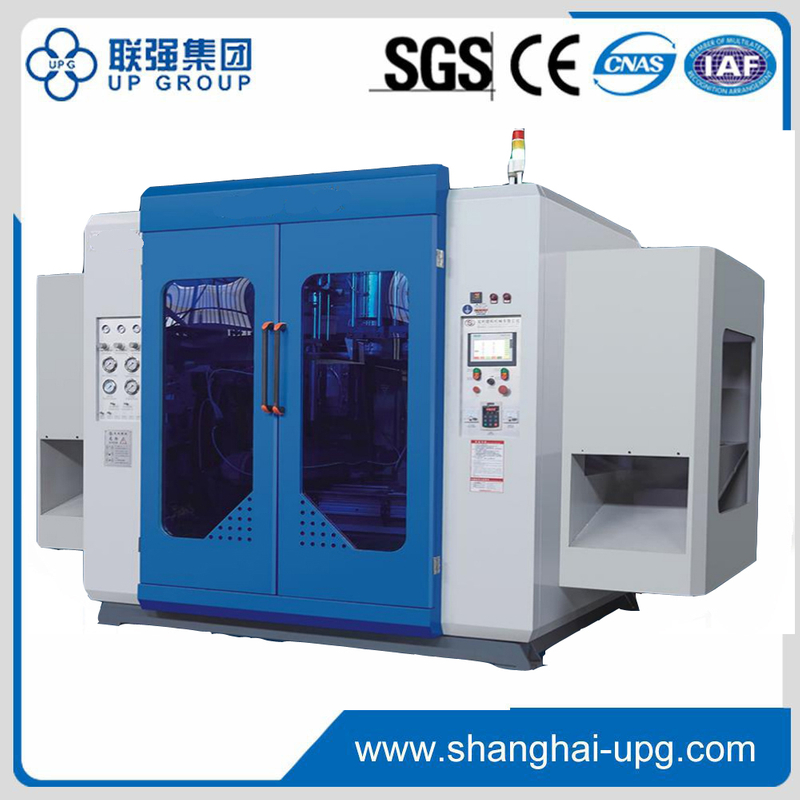

LQ-80&90
LQ
1. This machine is suitable for the production of 200ml-10L plastic hollow products,the use of curved elbow lock system,low energy consumption,the center of the lock,the lock force,speed faster,run more smoothly.
2. Die opening and closing system:specially designed for Heng lock mould mechanism using a high pressure mode locking,locking plate stress in the centre of the template,clamping force,open the rigid lock template,even if the ultra wide die is also fitted.
3. Die head system:all the use of 38CRMOALA and other materials,the precision machining and heat treatment.
4. Hydraulic system:full hydraulic double proportional hydraulic control ,equipped with imported famous brand hydraulic valve and oil pump,stable,reliable.
5. Automatic flying side device:in addition to the overflow device can accurately remove the product of the residual material,and with a straight push type in addition to the overflow device and a rotary knife type in addition to overflow device, the real realization automatic equipment without manual operation.
1. This machine is suitable for the production of 200ml-10L plastic hollow products,the use of curved elbow lock system,low energy consumption,the center of the lock,the lock force,speed faster,run more smoothly.
2. Die opening and closing system:specially designed for Heng lock mould mechanism using a high pressure mode locking,locking plate stress in the centre of the template,clamping force,open the rigid lock template,even if the ultra wide die is also fitted.
3. Die head system:all the use of 38CRMOALA and other materials,the precision machining and heat treatment.
4. Hydraulic system:full hydraulic double proportional hydraulic control ,equipped with imported famous brand hydraulic valve and oil pump,stable,reliable.
5. Automatic flying side device:in addition to the overflow device can accurately remove the product of the residual material,and with a straight push type in addition to the overflow device and a rotary knife type in addition to overflow device, the real realization automatic equipment without manual operation.
Specification | LQ-80 | LQ-90 | |
Material | PE,PP,EVA,ABS,PS… | PE,PP,EVA,ABS,PS… | |
Max container capacity | L | 10 | 20 |
Number of die | Set | 1,2,3,4,6,8 | 1,2,3,4,6,8 |
Output(dry cycle) | pc/hr | 400*2 | 220*2 |
Machine Dimension(LxWxH) | M | 4200*2800*2200 | 5200*3200*2400 |
Total weight | Ton | 8T | 15T |
Clamping Unit | |||
Clamping force | KN | 120 | 160 |
Platen opening stroke | MM | 250-600 | 350-750 |
Platen size(WxH) | MM | 500*450 | 600*600 |
Max mould size(WxH) | MM | 500*450 | 600*580 |
Mold thickness | MM | 255-350 | 360-420 |
Extruder unit | |||
Screw diameter | MM | 80 | 90 |
Screw L/D ratio | L/D | 25 | 25 |
Melting capacity | KG/HR | 120 | 140 |
Number of heating zone | KW | 20 | 30 |
Extruder heating power | Zone | 4 | 5 |
Extruder driving power | KW | 30 | 45 |
Die head | |||
Number of heating zone | Zone | 3-12 | 3-12 |
Power of die heating | KW | 10-30 | 10-30 |
Center distance of double die | MM | 250 | 250 |
Center distance of tri-die | MM | 110 | 130 |
Center distance of tetra-die | MM | 100 | 100 |
Center distance of six-die | MM | 80 | 80 |
Max die-pin diameter | MM | 260 | 280 |
Power | |||
Max drive | KW | 35 | 50 |
Total power | KW | 82 | 110 |
Fan power for screw | KW | 3.2 | 4 |
Air pressure | Mpa | 0.6-0.8 | 0.8-1 |
Air consumption | m³/min | 0.5 | 0.6 |
Average energy consumption | KW | 26 | 35 |
