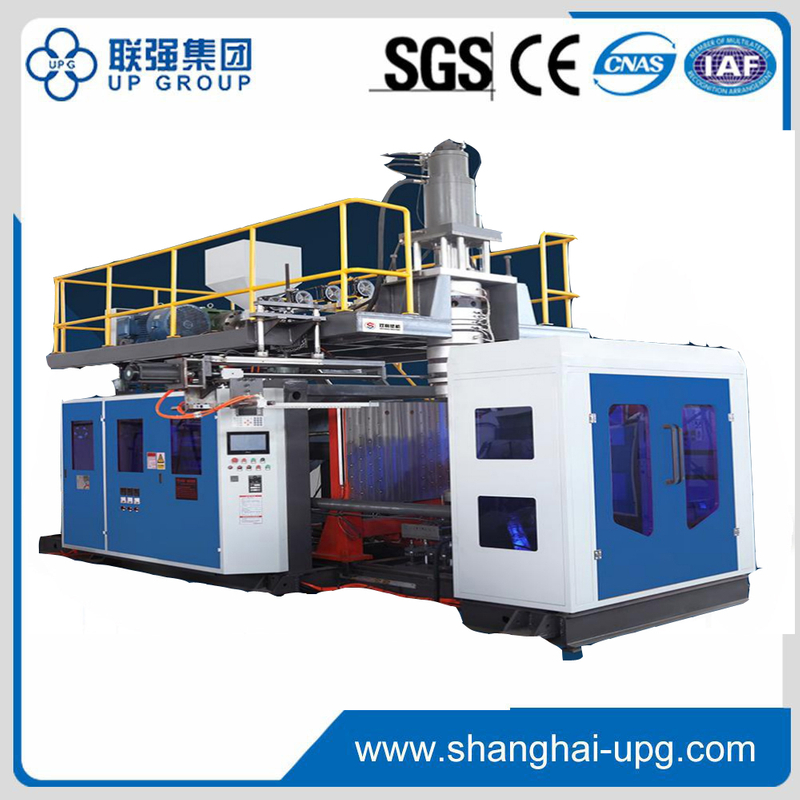

LQ-80/90
LQ
1:Linear guide support single frame,finite element analysis of the design, to ensure adequate clamping force, not up mode.
2: Large opening stroke,central locking,locking force equilibrium,no deformation.
3.High accuracy without the fusion line storage type die head,easy to change color,with servo wall thickness control system,improve product quality,reduce production costs.
4.optional with multi function under blowing mechanism,automatic machine to take the product of a variety of auxiliary device,realize the production process is highly automated.
5.The whole system is equipped with safety protection grating, to ensure the safety of the production process without accident.
1:Linear guide support single frame,finite element analysis of the design, to ensure adequate clamping force, not up mode.
2: Large opening stroke,central locking,locking force equilibrium,no deformation.
3.High accuracy without the fusion line storage type die head,easy to change color,with servo wall thickness control system,improve product quality,reduce production costs.
4.optional with multi function under blowing mechanism,automatic machine to take the product of a variety of auxiliary device,realize the production process is highly automated.
5.The whole system is equipped with safety protection grating, to ensure the safety of the production process without accident.
Specification | LQ-80 | LQ-90 |
Material | PE,PP,EVA,ABS,PS… | PE,PP,EVA,ABS,PS… |
Max container capacity | 30 L | 60 L |
Output(dry cycle) | 600 pc/hr | 450 pc/hr |
Machine Dimension(LxWxH) | 5300*3000*3500 | 6300*3400*4200 |
Total weight | 11T | 14T |
Clamping Unit | ||
Clamping force | 200 | 260 |
Platen opening stroke | 350-850 MM | 400-1200 MM |
Platen size(WxH) | 750*780 MM | 900*1000 MM |
Max mould size(WxH) | 600*1000 MM | 750*1200 MM |
Mold thickness | 360-500 MM | 410-700 MM |
Extruder unit | ||
Screw diameter | 80 MM | 90 MM |
Screw L/D ratio | 25 L/D | 25 L/D |
Melting capacity | 120 KG/HR | 140 KG/HR |
Number of heating power | 16 KW | 20 KW |
Extruder heating power | 4 Zone | 5 Zone |
Extruder driving power | 30 KW | 45 KW |
Die head | ||
Number of heating zone | 4 Zone | 4 Zone |
Power of die heating | 15 KW | 18 KW |
Max die-pin diameter | 250 MM | 400 MM |
Power | ||
Max drive | 42 KW | 57 KW |
Total power | 82 KW | 105 KW |
Fan power for screw | 3.2 KW | 4 KW |
Air pressure | 0.8-1.2 Mpa | 0.8 Mpa |
Air consumption | 0.8 m³/min | 0.8 m³/min |
Average energy consumption | 32 KW | 38 KW |
Accumulator capacity | 6 L | 8 L |
