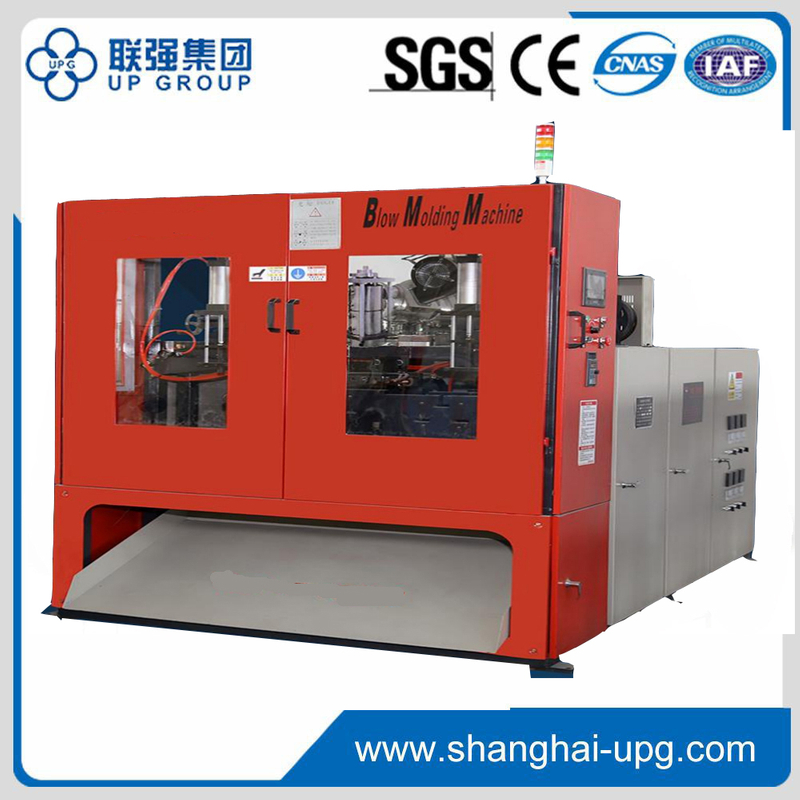

LQX 55/65/75/80 blow molding machine

This machine is suitable for PP,PE,EVA,PS,ABS,TPR,TPV and other raw materials such as blow molding.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQX 55/65/75/80 Series
Brand:
LQ

1. This machine is suitable for PP,PE,EVA,PS,ABS,TPR,TPV and other raw materials such as blow molding.

2. SLX series are UPG company pioneered the gas-liquid combination of new type blow moulding machine, superior performance, stable operation, simple operation, affordable and Characteristic.

3. This machine is suitable for bottles, detergent bottles,oil pot,plastic toys, cosmetics bottles,beverage bottles, chemical Hardware etc.

4. Suitable for all kinds 5ML-10000ML plastic hollow products.

5. Hydraulic system:optimize the hydraulic circuit design,running stable,high efficiency,low energy consumption,hydraulic components using the international well-known brands,installation and maintenance convenient.

LQ-Injection Blow Molding Machine

Specification		LQX-55	LQX-65	LQX-75	LQX-80
Material		PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…
Max container capacity	L	2	5	5	10
Number of die	Set	1,2,3,4,6	1,2,3,4,6	1,2,3,4,6	1,2,3,4,6
Output(dry cycle)	pc/hr	1000*2	950*2	700*2	650*2
Machine Dimension(LxWxH)	M	320016002200	380018002600	360020002200	400022002200
Total weight	Ton	3T	3.8T	4T	4.5T

Clamping Unit
Clamping force	KN	40	65	65	68
Platen opening stroke	MM	120-400	170-520	170-520	170-520
Platen size(WxH)	MM	360*300	450*400	500*450	550*450
Max mould size(WxH)	MM	240*400	330*500	380*550	430*650
Mold thickness	MM	105-200	175-250	175-320	175-320

Extruder unit
Screw diameter	MM	55	65	75	80
Screw L/D ratio	L/D	25	25	25	25
Melting capacity	KG/HR	45	70	80	120
Number of heating zone	KW	12	15	20	24
Extruder heating power	Zone	3	3	4	4
Extruder driving power	KW	7.7(11)	（11）15	15(18.5)	18.5(22)

Die head
Number of heating zone	Zone	2-5	2-5	2-5	2-5
Power of die heating	KW	6	6	8	8
Center distance of double die	MM	120	130	130	160
Center distance of tri-die	MM	80	80	80	80
Center distance of tetra-die	MM	60	60	60	60
Center distance of six-die	MM	60	60	60	60
Max die-pin diameter	MM	150	260	200	280

Power
Max drive	KW	18	26	24	30
Total power	KW	22	32	45	46
Fan power for screw	KW	0.42	0.42	0.42	0.42
Air pressure	Mpa	0.6	0.6	0.6	0.6
Air consumption	m³/min	0.4	0.5	0.5	0.5
Average energy consumption	KW	8	13	18	22

Specification		LQX-55	LQX-65	LQX-75	LQX-80
Material		PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…	PE,PP,EVA,ABS,PS…
Max container capacity	L	2	5	5	10
Number of die	Set	1,2,3,4,6	1,2,3,4,6	1,2,3,4,6	1,2,3,4,6
Output(dry cycle)	pc/hr	1000*2	950*2	700*2	650*2
Machine Dimension(LxWxH)	M	320016002200	380018002600	360020002200	400022002200
Total weight	Ton	3T	3.8T	4T	4.5T

Clamping Unit
Clamping force	KN	40	65	65	68
Platen opening stroke	MM	120-400	170-520	170-520	170-520
Platen size(WxH)	MM	360*300	450*400	500*450	550*450
Max mould size(WxH)	MM	240*400	330*500	380*550	430*650
Mold thickness	MM	105-200	175-250	175-320	175-320

Extruder unit
Screw diameter	MM	55	65	75	80
Screw L/D ratio	L/D	25	25	25	25
Melting capacity	KG/HR	45	70	80	120
Number of heating zone	KW	12	15	20	24
Extruder heating power	Zone	3	3	4	4
Extruder driving power	KW	7.7(11)	（11）15	15(18.5)	18.5(22)

Die head
Number of heating zone	Zone	2-5	2-5	2-5	2-5
Power of die heating	KW	6	6	8	8
Center distance of double die	MM	120	130	130	160
Center distance of tri-die	MM	80	80	80	80
Center distance of tetra-die	MM	60	60	60	60
Center distance of six-die	MM	60	60	60	60
Max die-pin diameter	MM	150	260	200	280

Power
Max drive	KW	18	26	24	30
Total power	KW	22	32	45	46
Fan power for screw	KW	0.42	0.42	0.42	0.42
Air pressure	Mpa	0.6	0.6	0.6	0.6
Air consumption	m³/min	0.4	0.5	0.5	0.5
Average energy consumption	KW	8	13	18	22
