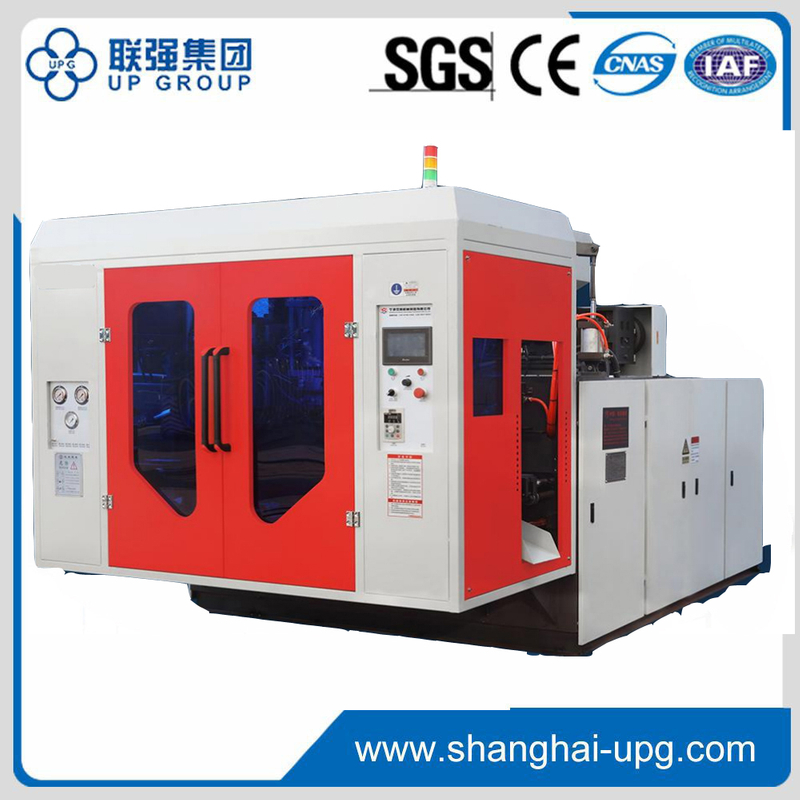

LQ-75/80 blow molding machine

This machine structure is compact,high-speed,stable and energy saving,not only to meet the needs of rapid production,but also easy to operate,fully automated production.
Availability:
Quantity:
  • LQ-75/80
  • LQ

1. This machine structure is compact,high-speed,stable and energy saving,not only to meet the needs of rapid production,but also easy to operate,fully automated production.

2. The die head system:using the central feeding and core type complementary flow channel type,the type of embryo wall thickness,uniformity.color change fast,from single layer to the three layer to meet the customer households with different needs.

3. Control system: the machine action control using PLC man-machine interface,display the real-time monitoring function of the mechanical movement,can display a variety of languages,such as, in the Text,English,etc.,to achieve the system of multi function and intelligent.

4. Extrusion system: the use of variable frequency variable speed motor drive and Hardened reducer,screw design can not only meet the high-yield,also can ensure uniform plasticizing.

5. Clamping system:single,double shift+high precision linear guide+large cylindrical shaft wall, the machine more stable.


Specification


SLB-75

SLB-80

Material


PE,PP,EVA,ABS,PS…

PE,PP,EVA,ABS,PS…

Max container capacity

L

5

10

Number of die

Set

1,2,3,4,6

1,2,3,4,6

Output(dry cycle)

pc/hr

700*2

650*2

Machine Dimension(LxWxH)

M

4000*2000*2200

4200*2200*2200

Total weight

Ton

4.5T

5T


Clamping Unit




Clamping force

KN

65

68

Platen opening stroke

MM

170-520

170-520

Platen size(WxH)

MM

350*400

350*400

Max mould size(WxH)

MM

380*400

380*400

Mold thickness

MM

175-320

175-320


Extruder unit




Screw diameter

MM

75

80

Screw L/D ratio

L/D

25

25

Melting capacity

KG/HR

80

120

Number of heating zone

KW

20

24

Extruder heating power

Zone

4

4

Extruder driving power

KW

15(18.5)

18.5(22)


Die head




Number of heating zone

Zone

2-5

2-5

Power of die heating

KW

8

8

Center distance of double die

MM

130

160

Center distance of tri-die

MM

100

100

Center distance of tetra-die

MM

60

60

Center distance of six-die

MM

60

60

Max die-pin diameter

MM

200

280


Power




Max drive

KW

24

30

Total power

KW

48

62

Fan power for screw

KW

3.6

3.6

Air pressure

Mpa

0.6

0.6

Air consumption

m³/min

0.5

0.5

Average energy consumption

KW

18

22
