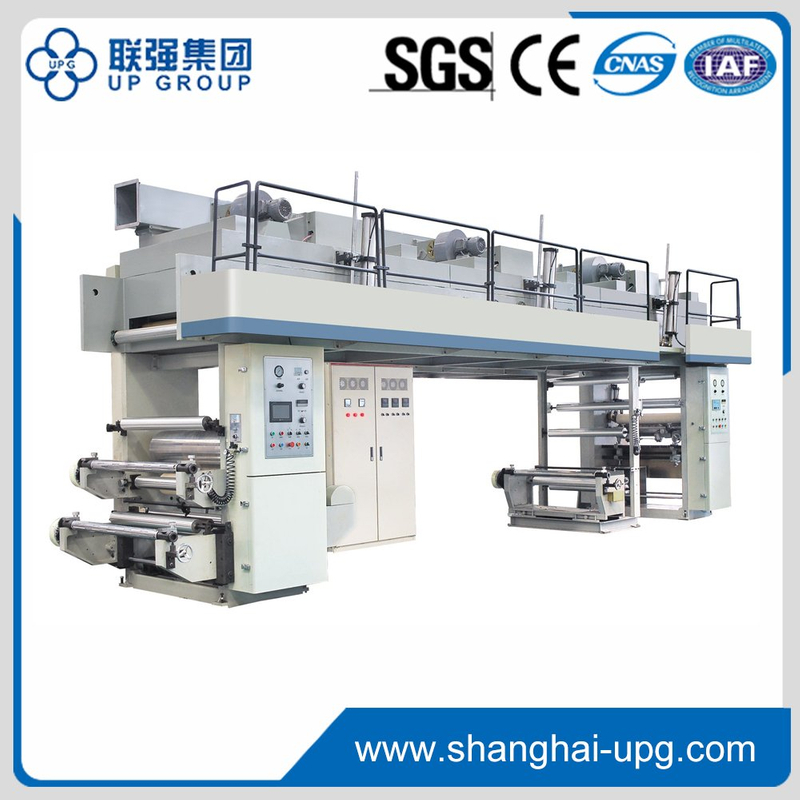

LQ-1050 LAMINATION MACHINE

Main Structure: (1) 1st unwind photoelectric EPC, air expanding shaft, 5kg magnetic powder detent, auto tension control (2) 2st unwinder air expanding shaft, 5kg magnetic powder detent, auto tension control (3) Rewind: air expanding shaft, 4KW ABB motor, Japanese YASKAWA (H1000) (4) Independent coating motor, inverter circuit synchronize control. Doctor blade glue cutting, inching: ±5mm, Doctor blade pressure: 10-100kg.
Availability:
Quantity:

PDF Export

LQ-1050 LAMINATION MACHINE
  • LQ-1050

  • LQ

Main Structure:
  (1) 1st unwind photoelectric EPC, air expanding shaft, 5kg magnetic powder detent, auto tension control
  (2) 2st unwinder air expanding shaft, 5kg magnetic powder detent, auto tension control
  (3) Rewind: air expanding shaft, 4KW ABB motor, Japanese YASKAWA
     (H1000)
  (4) Independent coating motor, inverter circuit synchronize control.
  Doctor blade glue cutting, inching: ±5mm, Doctor blade pressure: 10-100kg.
  (5) First second unwind and oven tension is controlled by PLC. First and
     second unwind tension is controlled by pressure sensor.
  (6) Whole machine use 5.7’ touch screen.
  (7) Coating unit: laminating roller diameter: 320mm
     Impression glue roller diameter: 170mm (A) 90º-95º
     The water in the laminating roller is heated by electricity, and
     recirculating. (Power 9kw)
     Laminate pressure is 500KG (when pressure 0.5 Mpa)
     The two motors: 4kw and 4kw Panasonic inverter and glue inverter are
     working synchronously by numerical circuit and dance roller.
  (8) First unwind and second unwind and rewind is single station.

2. Cooling device:
  (1) The diameter of cooling roller is 120mm, and it runs synchronously with
     the main machine, which assures the constant tension.
  (2) Compulsory water cooling circulation, with extraordinary good cooling
     effects.
  (3) Compulsory water coolingin the cooling roller
  (4) The water pressure>3kg/ cm²
  (5) The water temperature <18-25

3. Oven unit:
  (1) Oven length: 8000mm, highest temperature: 80℃ (room 20℃)
  (2) 3 phase independent heating in the oven
  (3) Guiding roller in the oven work synchronously with main machine.
  (4) 18 nozzles design for dry source.
  (5) Blower power 2.2kw*3, max volume 2000 m&sup3;/n.
  (6) EPC at exit of the oven

4. Functions and features:
  (1) Circulated wind saves energy.
  (2) Special design in the wind blowing to volatilize the solvent.
  (3) Negative pressure design, good warm preservation ability.
  (4) Independent zone with auto constant temperature control, facilities the
     solvent volatilization.
  (5) Fast blowing speed, witch creates low temperature fast drying method.
  (6) The front part blowing pipes out the volatilized solvent, so the waste gas
     won&rsquo;t return to the second circulation.
  (7) Pipes are equipped in the coating unit to pipe out the waste gas. Improve
     the working environment.
  (8) Guiding roller in the oven work synchronously with main machine. Less
      twist in the material


ModeThree side sealing, three servos, three feeding, two convectors
Raw materialBOPP, CPP, PET, NYLON, plastic laminated film, multiplayer extrusion blown film, pure aluminum, aluminum-plating laminated film, paper-plastic laminated film
Max. bag making speed180 time/min
Normal speed120 time/min (three side seal: 100-200mm)
Max. material out feeding line speed&le;35 m/min
Size of bagWidth: 80-600 mm
Length: 80-500 mm (dual delivery function)
Width of sealing6-60 mm
Bag styleThree-side sealing bag, Standing bag, Zip bag
Positioning accuracy&le;&plusmn;1 mm
Thermal sealing knife quantityFive teams on vertical thermal sealing, five teams on vertical cooling setup.
Three teams on horizontal thermal sealing, one team on horizontal cooling setup;
Two teams on zipper thermal sealing knifes, two teams cooling units.

Temperature control quantity24 routes
Temperature control setting rangeNormal- 360℃
Power of whole machine35KW
Overall dimension (length*width*height)12000*1750*1900
Net weight of whole machineAbout 6500Kg
ColorMain machine body in black, apple green in cover
Noise&le;75db
