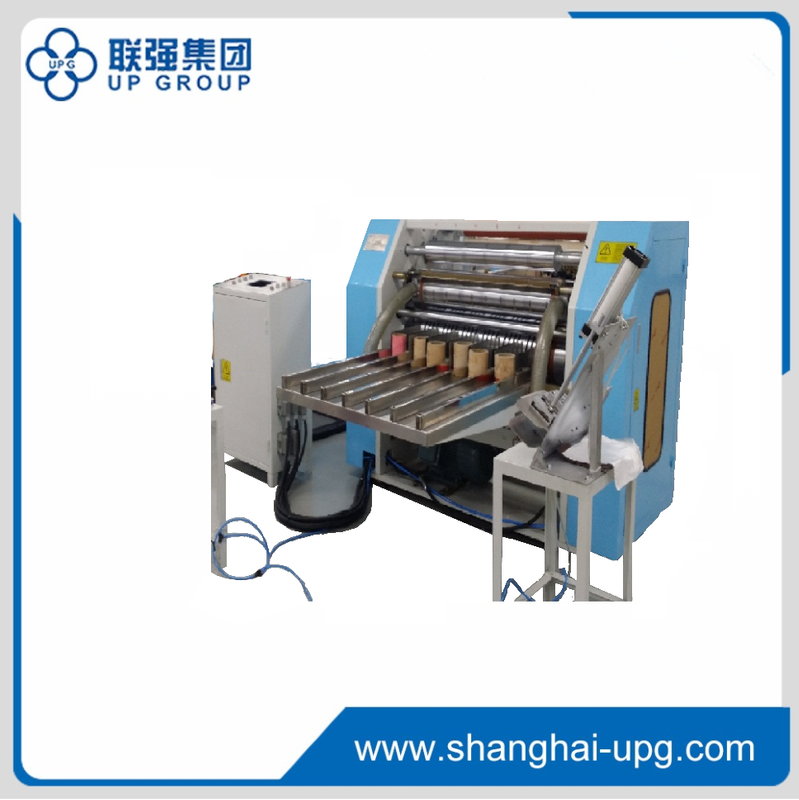

LQ 6 Lane Napkin Folding Machine

Availability:
Quantity:
  • LQ

  • UPG

Napkin folding machine is a kind of napkin that automatically folds the cut paper into square or rectangle after calendering, printing and embossing. It has the advantages of clear and bright printing, accurate overprint and stable high-speed operation. It is a special equipment for processing high-quality and high-grade napkin.

Unit

Specification

Suitable Material

Single Layer: 18-25g/㎡;Double Layer: 12-19g/High humidity strong original paper

Paper size and width

φ1200mmX1380mm

Paper core diameter

φ76mm

Folding Type

1/4 Folding former

Product Size

Folding size(115mm×130mm )±2mm

                   (115mmx115mm)±2mm

Paper Feeding Unit

Single layer paper feeding,use the wide belt for the feeding,one paper shaft


Paper left and right adjusting by hand,Pneumatic paper lifting

Printing Unit

Closed type doctor blade systemone unit


Circulating ink system


Ceramic anilox roller

Slitting Unit

Slitting size can be adjusted

Embossing Unit

Two sets of steel roller with the felt roller for embossingEmbossing clear and unstratified, not crushing paper, no wrinklepattern provided from the customer


Mechanical pressure control makes the pressure accurate and balanced


Felt print the oil for dust cleaning ( use white mineral oil)

Folding Unit

The gap between the folding roller and pull roller can be adjusted


Folding roller adopt the thermal refining 

Counting function, adopt the pneumatic dislocation type


Design speed: 500pcs/min/lane

Production speed: 400pcs/min/lane with printing

Control Unit

PLC【Siemens】

Frequency converter【Siemens】


Automatic counting function


The machine will automatically stop when paper breaking


PowerAC380V  60HZ

Main motor: 11KW

Vacuum pump 15-18.5KWTaiwan

Component Brand

Important part use NSK high temperature resistance bearing

Bearing pedestal brand : TR


Low-voltage electrical apparatusBrand: Schneider

PhotoelectricityBrand: Omron

PLCBrand: Siemens

Frequency converterBrand: Siemens


Pneumatic componentBrand: AIRTAC


Air cylinderBrand: JAC


Accessories



Paper cutting off base knife: 2 pieces

Scratcher5 pieces

Slitting base knife: 5 pieces

Paper sending belt: 1 piece

Doctor blade: 10 pieces


Tool box

Documents

Machine operating manual

including the power, air diagram and installation instruction


Frequency converter use manual


Using manual and common accessories details
