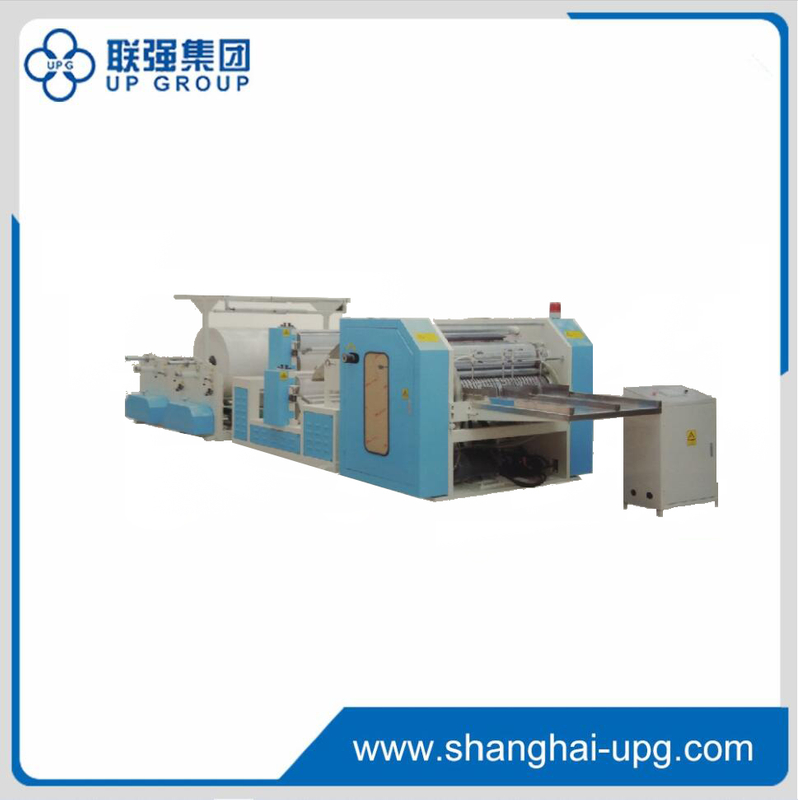

LQ 4L Air Suction Napkin Folding Machine

Availability:
Quantity:
  • LQ -4L

  • UPG

LQ4L 1/41/61/8 Air suction dispenser napkin folder adopt the vacuum suction fold then through embossed and cut off 1/8 folder napkin. This machine include frequency conversion speed adjustment, timing belt and electronic counting function, which is the ideal equipment for production of top grade napkins.

1. The bottom embossing rolls can be covered with wool-cloth, neoprene, or wool-paper material(depending on the needs of customers).
2. Pneumatic loading of jumbo reel can greatly reduce the working tension.
3. A variable-cutting width of finished product range from 100-210mm can be easily affected on the machine by adjusting the round cutting blades.
4. Automatic detection of paper break and paper wrap up: to guarantee the high quality of the finished rolls even in the high speed operation
5. The web can be threaded on the machine by the two jog buttons, It's more safety and easier to feed the web.


Model

LQ-4L-405

LQ-4L-420

LQ-4L-430

Open Size of Finished Product

405x380mm

420x380mm

430x380mm

Dia of Paper Roll

φ1100mm (other size to be specified)

Material Core Dia

φ76.2mm(other size to be specified)

Machine Speed

300-500sheets/Lines/min

Counting System

Electronic counting

Power

5.5KW

Vacuum Suction Unit

15KW

Bottom Embossing Roller

Felt roller, woolen roller, rubber roller

Automatic Jumbo Roll Loading

Optional
