LQ-6 Stacks
UPG
STITCHING TYPE | SADDLE STITCHING, SIDE STITCHING, MIDDLE FOLDING ONLY |
PAPER SIZE | SADDLE STITCHING/MIDDLE FOLDING: LENGTH: MAX. 450mm - MIN. 260mm WIDTH: MAX. 327mm - MIN. 190mm |
SIDE STITCHING: LENGTH: MAX. 231mm - MIN. 121mm WIDTH: MAX. 327mm - MIN. 190mm | |
PAPER THICHNESS | 70g/m2-128g/m2 |
FOLDING CAPACITY | 2-25 SHEETS (80g/m2) |
STITCHING TYPE | SADDLE STITCHING, SIDE STITCHING, MIDDLE FOLDING ONLY |
PAPER SIZE | SADDLE STITCHING/MIDDLE FOLDING: LENGTH: MAX. 450mm - MIN. 260mm WIDTH: MAX. 327mm - MIN. 190mm |
SIDE STITCHING: LENGTH: MAX. 231mm - MIN. 121mm WIDTH: MAX. 327mm - MIN. 190mm | |
PAPER THICHNESS | 70g/m2-128g/m2 |
FOLDING CAPACITY | 2-25 SHEETS (80g/m2) |
Collator
COLLATOR FOR 10 STACKS | |
NO. OF BINS | 10 |
SPEED | 3000 SETS/H(A4) |
PAPER SIZE | A5-A3 |
PAPER THICKNESS | 40g/m2-150g/ m2 |
PAPER BIN CAPACITY | 300 SHEETS |
ERROER DETECTION | DOUBLE FEED, FEED ERROR, JAMMING, OUT OF PAPER, STACKER FULL, BACK DOOR OPEN |
POWER SUPPLY | AC 220V/110V 50/60HZ |
MACHINE WEIGHT | 85KG |
PACKAGE DIMENSION | 1210(L)×660(M)×890(H) mm |
OPTION | TABLE T02 |
COLLATOR FOR 6 STACKS | |
NO. OF BINS | 6 |
LANGUAGE | ENGLISH |
SPEED | 3000 SETS/H(A4) |
PAPER SIZE | A5-A3 |
PAPER THICKNESS | 40g/m2-150g/ m2 |
PAPER BIN CAPACITY | 300 SHEETS |
ERROER DETECTION | DOUBLE FEED, FEED ERROR, JAMMING, OUT OF PAPER, STACKER FULL, BACK DOOR OPEN |
POWER SUPPLY | AC 220V/110V 50/60HZ |
MACHINE WEIGHT | 85KG |
PACKAGE DIMENSION | 1210(L)×660(M)×890(H) mm |
OPTION | TABLE T02 |
Whole Line Specification
COLLATING, STITCHING, FOLDING SYSTEM | |
PAPER SIZE | SADDLE STITCHING/MIDDLE FOLDING |
LENGTH: MAX. 450mm, MIN. 260mm | |
WIDTH: MAX. 327mm, MIN. 190mm | |
SIDE STITCHING | |
LENGTH: MAX. 231mm, MIN. 121mm | |
WIDTH: MAX. 327mm, MIN. 190mm | |
PAPER THICKNESS | 40g/m2-128g/m2 |
ONLINE SPEED | 2000 SETS/H |
NO. OF STITCHING HEADS | 2 |
STACKER CAPACITY | 50 BOOKLETS |
DETECTION | JAMMING, COVER OPEN, SERVICE CODE |

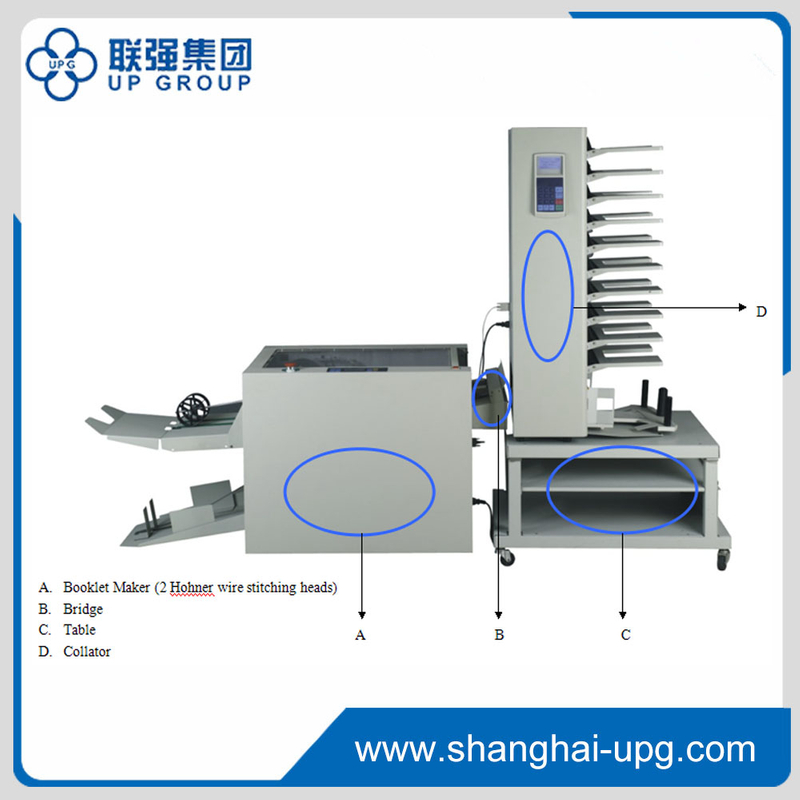

SYSTEM EQUIPMENT | COLLATOR |
BOOKLET MAKER | |
BRIDGE | |
TABLE | |
POWER SUPPLY | AC 110/220V 50/60HZ |
