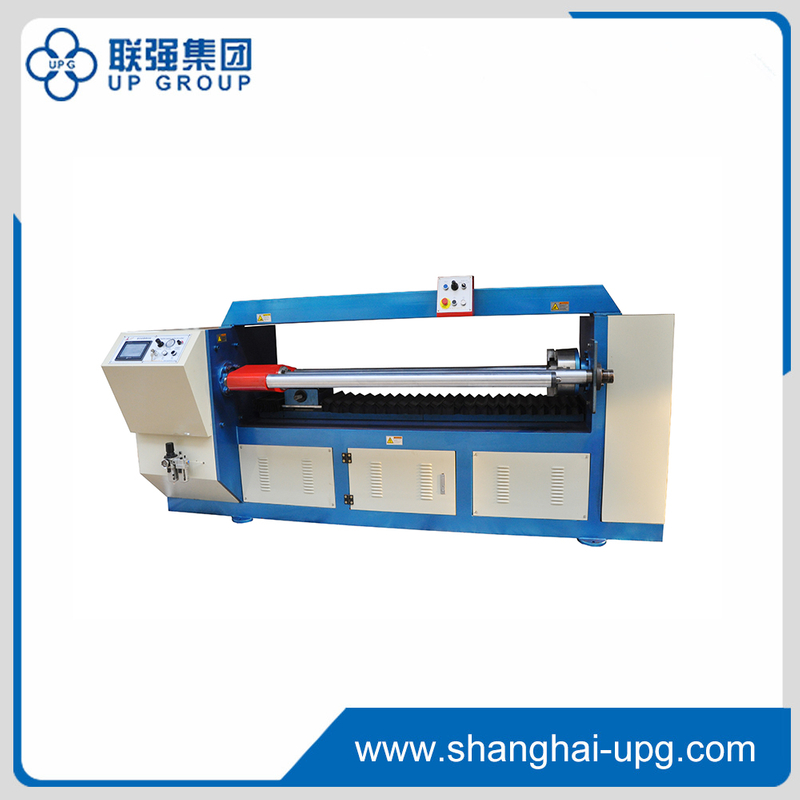

LQ-A5(2500)Paper tube cutting machine

Quantity:
  • LQ-A5(2500)
  • UPG

Feature

1Located by servo system, drive by high-precision rolling bead screwcutting resolution up to 0.01mm

2Two positions to controlone shaft is used to cut while another is loading paper tube,many times more efficient than the one with one shaft.

3PLC control, Colorful touching man-machine operating

4Auto production operationwarning if problem happensNeed to equip auto load/unload device)。

5Suitable for cutting paper tube with big quantity/short cutting length OR change frequently to cut different length

6Shaft turned and shaft changed both use inverter to adjust speed

7Cutter reactionSeparated automatically once cutter touches the shaft.

8Adopt timing auto lubrication system, save labor and lubrication oil and so on


                 Parameter

                Control system

Cutting length

3-2500mm

PLC Controller

Delta

Cutting diameter

50-150mm

Main-machine interface

WEINVIEW6070

Knife No

1Set

Program edition

JS-A5

Cutting speed

25M/Min

Actuator(contactor..)

CHNT

Cutting way

Tube rotating, shaft not

Signal element

OMRON

Load/unload way

Manual

Pneumatic component

AIRTAC

Fixing way

Auto chuck

PLC Controller

Delta

Operator

1person

Servo motor

YASKAWA

Way of knife moving

Pneumatic

Moving screw

TAIWAN SHANGYIN

Speed adjusting

Inverter

Moving track

TAIWAN YINTAI

Input power

custom



Cutting thickness

1mm-15mm

                   Enclosed equipment

              Size(mm)

Cutting knife

2 Piece

MainframeL*W*H

4400mm*1500mm*1550mm

Useful tool

1Set

Total weight

3000kgs



Main motor power

4KW



Rotate speed of main shaft

300-1000r/min



Turned shaft power

1.5KW



Cut-table moving power

1.3KW YASKAWA SERVO
