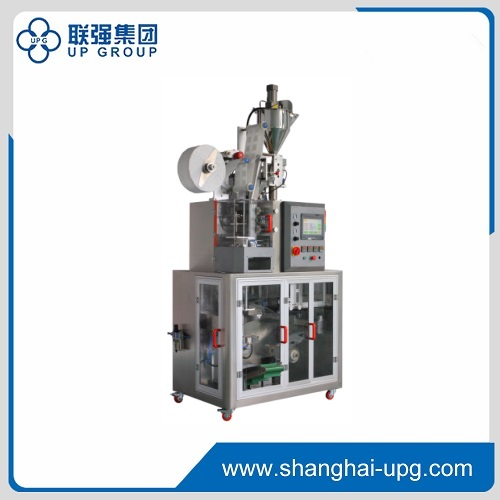

LQ-DC-2 Drip Coffee Packaging Machine (High Level)

This high level machine is the latest design based on the general standard model, specially design for different kinds of drip coffee bag packing. The machine adopts fully ultrasonic sealing, compared with the heating sealing, it has the better packaging performance, besides, with the special weighing system:Slide doser, it effectively avoided the waste of coffee powder.
Availability:
Quantity:

PDF Export

  • LQ-DC-2

  • UPG

Introduction:

This high level machine is the latest design based on the general standard model, specially design for different kinds of drip coffee bag packing. The machine adopts fully ultrasonic sealing, compared with the heating sealing, it has the better packaging performance, besides, with the special weighing system: Slide doser, it effectively avoided the waste of coffee powder.

Feature:

1. The working efficiency is higher than general model in the market.

2. Slide doser, 0 coffee powder residue, no waste, accuracy keeps to the last second packet.

3. Automatic air pressure detecting device. Air pressure is important for making the prefect product.

4. Multifunctional sensor, no coffee material alarm, no packing material alarm, inner eye mark.

5. Inner empty bag alarm, inner bag connect alarm, outer envelop eye mark.

6. 3 functions avoid the coffee powder stuck: vibrating, vertical stirring and material sensor.

7. Safety guard device.



Working speed

About 50 bags/min

Bag size

Inner bag: Length: 90mm * Width: 70mm

Outer bag: Length: 120mm * Width: 100mm

Sealing method

Fully 3-side ultrasonic sealing

3-side heating sealing

Weighing system

Slide Doser

Weighing arrange

8-12 grams/bag (Based on the material’s proportion)

Filling accuracy

± 0.2 grams/bag (Depend on the coffee material)

Air consumption

≥0.6MPa, 0.4m3/min

Power supply

220V,50Hz,1Ph

Weight

680kg

Overall dimensions

L*W*H 1400mm * 1060mm * 2691mm

Compare between standard and high level machine:

Standard machine

High level machine

Speed:about 35 bags/min

Speed:about 50 bags/min

Air pressure meter

Human observes

Automatic air pressure detecting device

When low air pressure, alarm

Outer air blowing system

Avoid the problem of “wrinkle”

Different outer bag sealing device

Without pulling film wheels

Without wrinkle caused by pulling film wheels

/

No-coffee alarm

/

No-outer/inner packing material alarm

/

Empty inner-bag alarm
