1 Used for form-cutting of aright angle
Material:□CN □JP □GM
Edge:□单锋刀CB □双锋刀 LCB
-------------------------------------------------------------------------------------------------------------------------------
Summary of constituent elements of die cutting knife
Knife Type | Low-bladed Knife/High-bladed Knife with two-stage/Single-Sided Knife/Wave Knife/Tooth Knife/Combination knife |
Steel Type | /S50C/C55 |
Thickness(mm) | 0.45/0.53/2pt/3pt/4pt/6pt |
Height(mm) | 7.0/8.0/9.5/12/23.5/23.6/23.7/23.8/30~100mm |
Body hardness (Hrc) | 33/37/41/45/48/ |
Blade hardnes(Hrc) | 54/56/58/60/ |
Blade Angle | ∠30° ∠42° ∠52° |
Others | High frequency heat treatment hardening, knife edge grinding, knife edge mirror processing. |
Thickness tolerance range of CUTTING rules
Thickness Expression | Reference | International Standard | Corporate Standards | |
Tolerance | Min~Max | |||
0.45 | 0.44 | ±0.025 | ± 0.010 | 0.430~0.450 |
2PT | 0.71 | ±0.030 | ± 0.010 | 0.700~0.720 |
3PT | 1.05 | ±0.040 | ± 0.010 | 1.050~1.070 |
4PT | 1.42 | ±0.050 | ± 0.015 | 1.395~1.425 |
Impact of Blade Angle on Product
Blade Selection
1、Difference of High-edged and Low-edged Knives
Low-Edged Knife High-Edged Knife Difference
The difference between high-edged and low-edged knives is that the high-edged knife is based on the low-edged knife and then grinds off the corners on both sides to make its blade narrower, generally about 2mm.
Package
Thickness | Carton Box quantity | Coil |
0.45mm(1.27PT) | 100Pcs/Box | 100M/Coil |
0.53mm(1.5PT) | 100Pcs/Box | 100M/Coil |
0.71mm(2PT) | 100Pcs/Box | 100M/Coil |
1.07mm(3PT) | 70Pcs/Box | 70M/Coil |
1.42mm(4PT) | 50Pcs/Box | 50M/Coil |
2.10mm(6PT) | 35Pcs/Box | 35M/Coil |
Application area
Die-Cutting for packaging box
1 Used for form-cutting of aright angle
Material:□CN □JP □GM
Edge:□单锋刀CB □双锋刀 LCB
-------------------------------------------------------------------------------------------------------------------------------
Summary of constituent elements of die cutting knife
Knife Type | Low-bladed Knife/High-bladed Knife with two-stage/Single-Sided Knife/Wave Knife/Tooth Knife/Combination knife |
Steel Type | /S50C/C55 |
Thickness(mm) | 0.45/0.53/2pt/3pt/4pt/6pt |
Height(mm) | 7.0/8.0/9.5/12/23.5/23.6/23.7/23.8/30~100mm |
Body hardness (Hrc) | 33/37/41/45/48/ |
Blade hardnes(Hrc) | 54/56/58/60/ |
Blade Angle | ∠30° ∠42° ∠52° |
Others | High frequency heat treatment hardening, knife edge grinding, knife edge mirror processing. |
Thickness tolerance range of CUTTING rules
Thickness Expression | Reference | International Standard | Corporate Standards | |
Tolerance | Min~Max | |||
0.45 | 0.44 | ±0.025 | ± 0.010 | 0.430~0.450 |
2PT | 0.71 | ±0.030 | ± 0.010 | 0.700~0.720 |
3PT | 1.05 | ±0.040 | ± 0.010 | 1.050~1.070 |
4PT | 1.42 | ±0.050 | ± 0.015 | 1.395~1.425 |
Impact of Blade Angle on Product
Blade Selection
1、Difference of High-edged and Low-edged Knives
Low-Edged Knife High-Edged Knife Difference
The difference between high-edged and low-edged knives is that the high-edged knife is based on the low-edged knife and then grinds off the corners on both sides to make its blade narrower, generally about 2mm.
Package
Thickness | Carton Box quantity | Coil |
0.45mm(1.27PT) | 100Pcs/Box | 100M/Coil |
0.53mm(1.5PT) | 100Pcs/Box | 100M/Coil |
0.71mm(2PT) | 100Pcs/Box | 100M/Coil |
1.07mm(3PT) | 70Pcs/Box | 70M/Coil |
1.42mm(4PT) | 50Pcs/Box | 50M/Coil |
2.10mm(6PT) | 35Pcs/Box | 35M/Coil |
Application area
Die-Cutting for packaging box

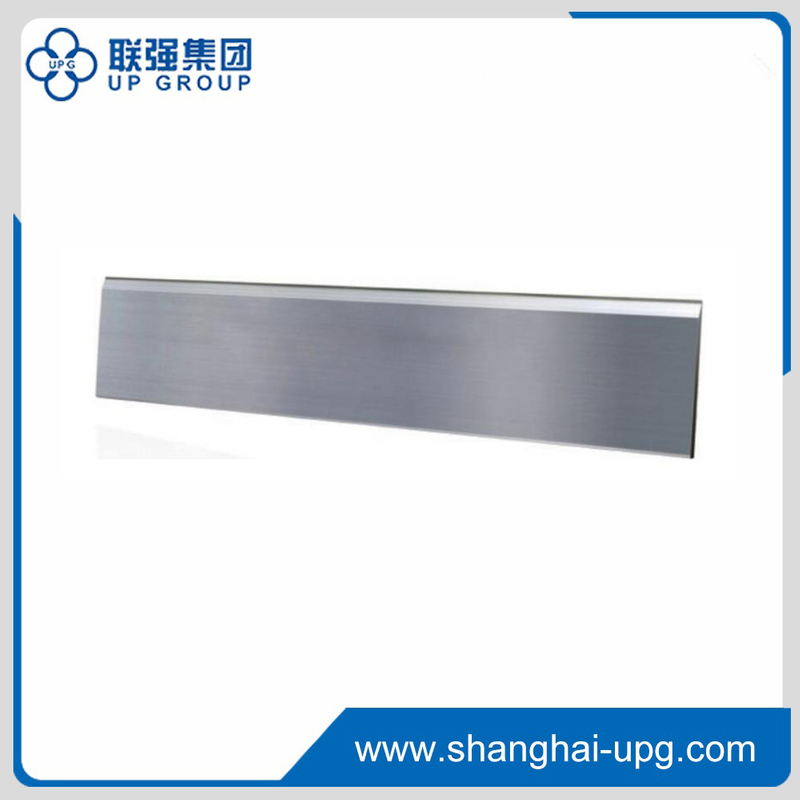

Thickness | 0.71mm(2PT) | 1.07mm(3PT) |
Height | 22.8-50.0mm |
Specification thickness | Number | Explain | Remark(hardness)requirements |

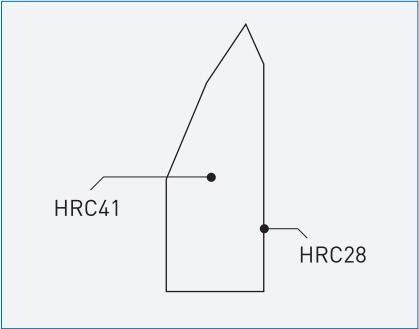

0.71mm | LQDEX-90 | Blue-black Body | Core Hardness Hrc40~41(Hard) |
Thickness | 0.71mm(2PT) | 1.07mm(3PT) |
Height | 22.8-50.0mm |
Specification thickness | Number | Explain | Remark(hardness)requirements |
0.71mm | LQDEX-90 | Blue-black Body | Core Hardness Hrc40~41(Hard) |
