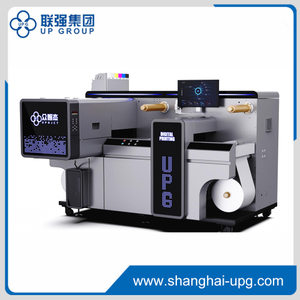

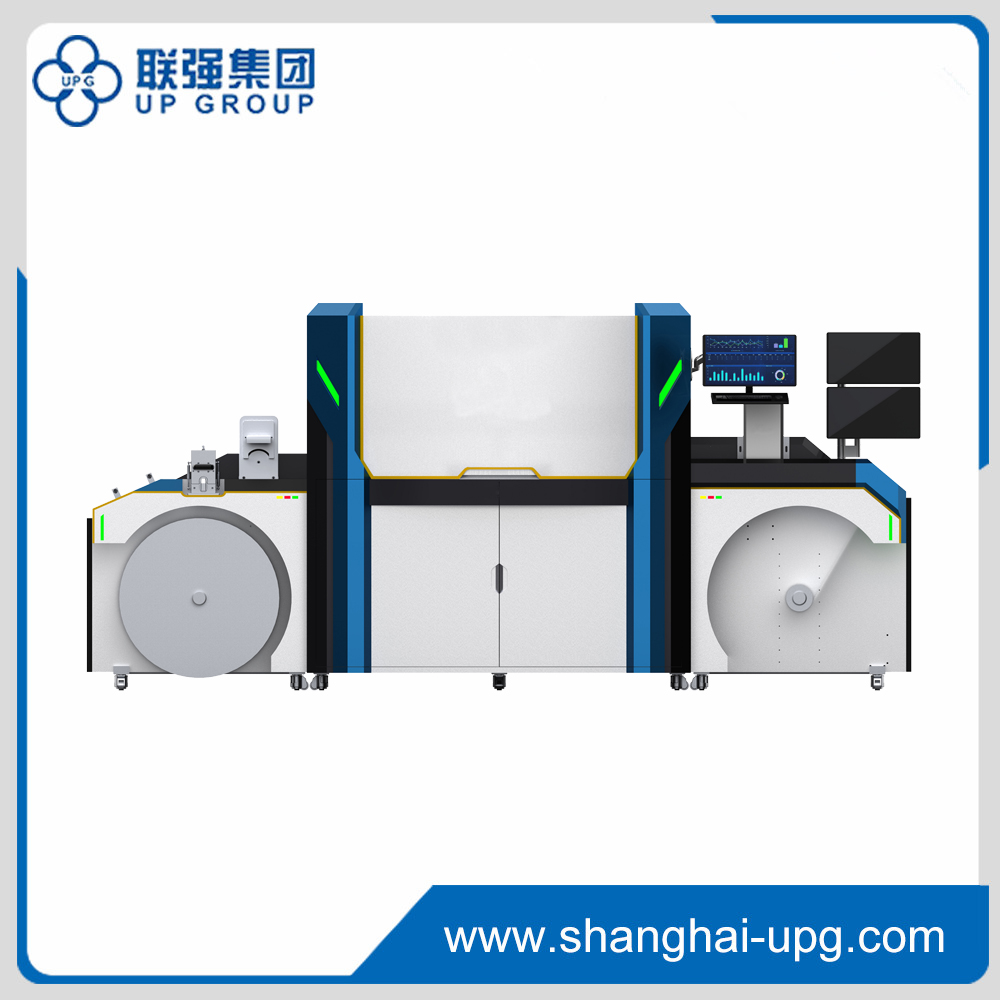

LQ-MD 330HB 5 Color Digital Label Printing System

Availability:
Quantity:
  • LQ-MD 330HB
  • UPG

Features:

1. Inline web cleaner and corona treatment

2. Digital 7 Color Inkjet – First China-based manufacturer to release

3. Remote Control and diagnostic

4. UV LED curing capability with individual color Pinning

5. Can start with lowest configuration of 4 Color with a print width of 216mm and field upgrabeable to 7 color with print width of 324mm.

6. Maximum speed up to 75 mpm

7. Equipped with both statuc and dynamic quality control

8. Offline RIP, data preparation and color management



Configuration

1. Unwind Section

a.Hydraulic lifting device drives unwind part

b.Shaftless deisgn with 3 inch mandrel

c.Maximum roll diameter 700mm

d.Unwind adopts pneumatic control, magnetic powder will burn due to too hot because of long time’s using.

e.BST web guide system & Tension control system

g.Corona Treatment – improve substrate surface tension

h.Web Cleaner – Remove dust particles from substrate(Single side only)

i. Anti-Static to remove static that possibile create by flexible material



2. Print Tower Section

a.Cue Sensor for preprint registration

b.Encoder to detect line speed of print so that the printed image is within specification length

c.External Ink bottle cam in the form as customer purchase the varnish

d.Ink supply system to draw ink from external ink bottle to secondary ink tane then to printhead with temperature control

e.Printhead where RIPPed images are been sent for printing

f.Servo Control Printhead mounting for Y-Z direction – Mounting build for 7 color 324mm width

g.Capping unit use when purging,cleaning and capping of printhead when the printheads are not in used

h.Pinning LED lamp to prevent big dot gain and obtain good raisen effect

i.Curing lamp to final curing the UV varnish

j.All function built in controller that control print, transport and printhead position

k.Printing & Transport Control system – For operator control of paper movement and paramter setting of ink supply system, printheads and control of printing

3.Rewind Section

a.Quality Control section

  1. a)Static camera that will inspect certain area of print for quality purpose

  2. b)Dynamic camera can be use as a tool for Color to Color registration during setup and the ability to detect missing jet/streakers

b.Manual lifting

c.Shaftless deisgn with 3 inch mandrel

d.Maximum roll diameter 700mm



4.Offline Station

a. Color management system that allow user to do paper profling/linearization and machine color calibration

b. Ripping ststion that convert PDF to printable format that can be use by printhead and obtain right color profiling by integrate Color Management tool

c. Variable data generation software that allow customer to create wide range of varible data such as text, barcode~1D and 2D and imposition them

d. Come with capability to connect to customer MIS and MES system


5. Auxiliary Equipment

a.Corona treatment controller

b.UV LED curing & Pinning PLC Controller

c.Chiller




Technical Specification

Web Width

330mm

Printing Speed

Max Speed 50mpm to 75 mpm

Substrate Thickness

20-400um (Suitable for label substrate, paper, flexible material. Other material need   to be test)

Color

4-7 Color, CMKY+W,O,G or V

Digital Printing Engine

Print Width

Max 216/ 324×10000mm

Printing Method

UV Piezo-Electric, Drop on Demand inkjet Printing

Image Resolution

600×600dpi, 600×1200dpi @ 4 Gray Scale

File Format

PDF, PDF/VT, TIFF, JPEG, BMP or other commom file format

Curing

UV-LED pinning, UV-LED full curing (with Chiller)

Automation Upgrade   Module

Pinning at each color station

Auto Printhead cleaning module

Remote Control& Diagnostic

Reserved port for qutomation workflow

Inline quality control

Multi-Function System

Unwind

Motor Control evelated; 700mm, Core shaft @ 76mm; Standard web guide, web cleaner, Corona treatment unit

Rewind

Single Rewind, Max Diameter @ 700mm, Core shaft @76mm

Other Optional Item

Read & Print Capability

(Flexo unit, Cold Foil, lamination, Rotarty die cut, traditional die cut, slitting, web extraction, dual rewind)

Machine Dimension

4200×1900×1800mm (Standard diamension, do not include optional item)

Machine Weight

approx 3500kg

Envirnoment Requirement

Best Operating   Temperature

20-25 degree celsius

Max Operating   Temperature

13-32 degree celsius

Ink Storage   Temperature

16-32 degree celsius

Best Humidity

50-70% Best recommend dust free envirnoment



Standard Configuration:

No.

Name

Figure No.

Quality

Units

1

NSK Bearing

NSK 6005ZZ

2

PCS

2

NSK Bearing

NSK 6007ZZ

2

PCS

3

NSK Bearing

NSK 6002ZZ

2

PCS

4

Adecco Cylinder

ACQ-40×20

2

PCS

5

Straight fitting

KQB2H06-01S

2

PCS

6

Spring

SWF10-30

2

PCS

7

Cylinder

SMC CQSB12-5D

2

PCS

8

Cylinder quick coupling

PC6M5

2

PCS

9

Synchronous belt

HTD-5-715 (26 width)

1

PCS

10

Synchronous belt

HTD5-350mm (12mm)

1

PCS

11

NSK Bearing

NSK 6209ZZ

2

PCS

12

Swivel type quick coupling

SMC KSL06-M6

2

PCS

13

NSK Bearing

NSK 6002ZZ

2

PCS

14

Linear bearings

LHFSWM20

2

PCS

15

NSK Bearing

NSK 6004ZZ

2

PCS

16

Needle cylinder

CJPS10-10-XC22

2

PCS

17

Fan + Screen

6015 24v

2

SET

18

Fan + Screen

8038 24v

2

SET

19

Fan + Screen

4020 24v

2

SET

20

Cabinet lighting

300mm QPL300-24V white

1

SET

21

Airtac Regulators

GFR200-08

1

SET

22

Mitsubishi ServoDrive Battery

MR-BAT6V1SET-A

2

PCS



Tool Box List

No.

Name

Figure No.

Quality

Units

1

Wrench

6-32

1

SET

2

Allen wrench

3-14

1

SET

3

Cross screwdriver

5×100, 6×150, 6×150, 8×150, 8×200, 8×250

1

SET

4

Straight screwdriver

5×100, 6×150, 6×150, 8×150, 8×200, 8×250

1

SET

5

Measuring tape

5m

1

SET
