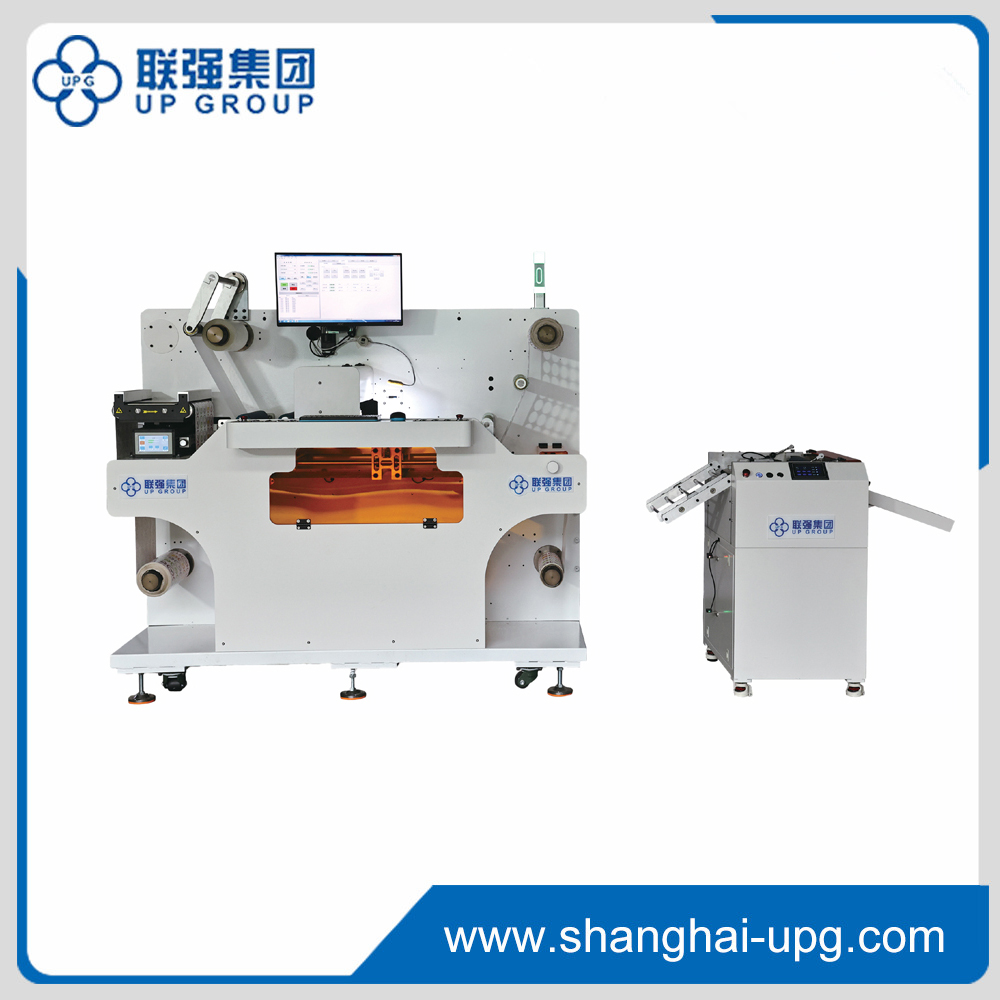

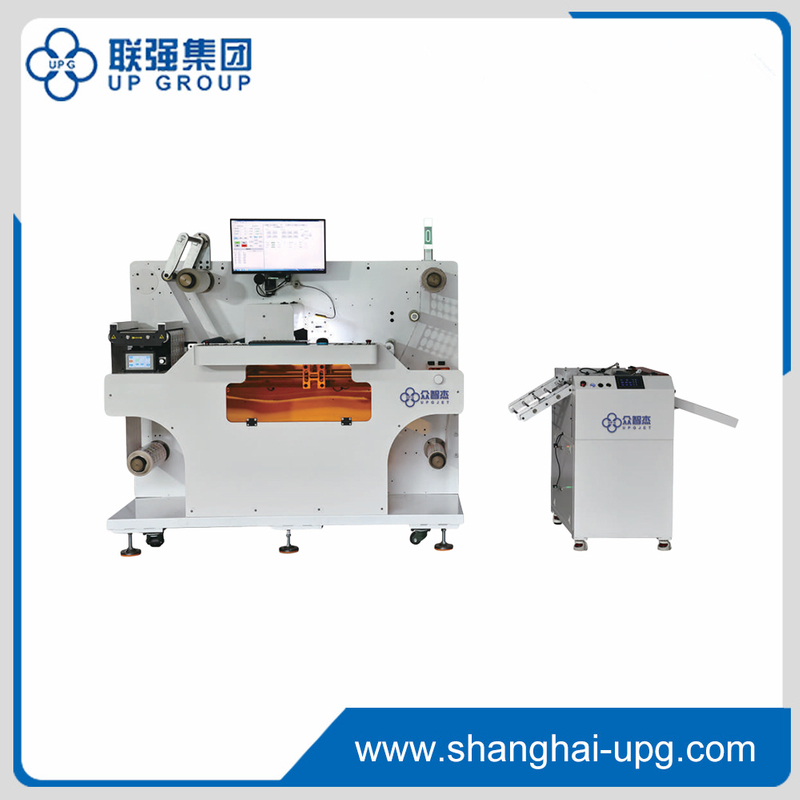

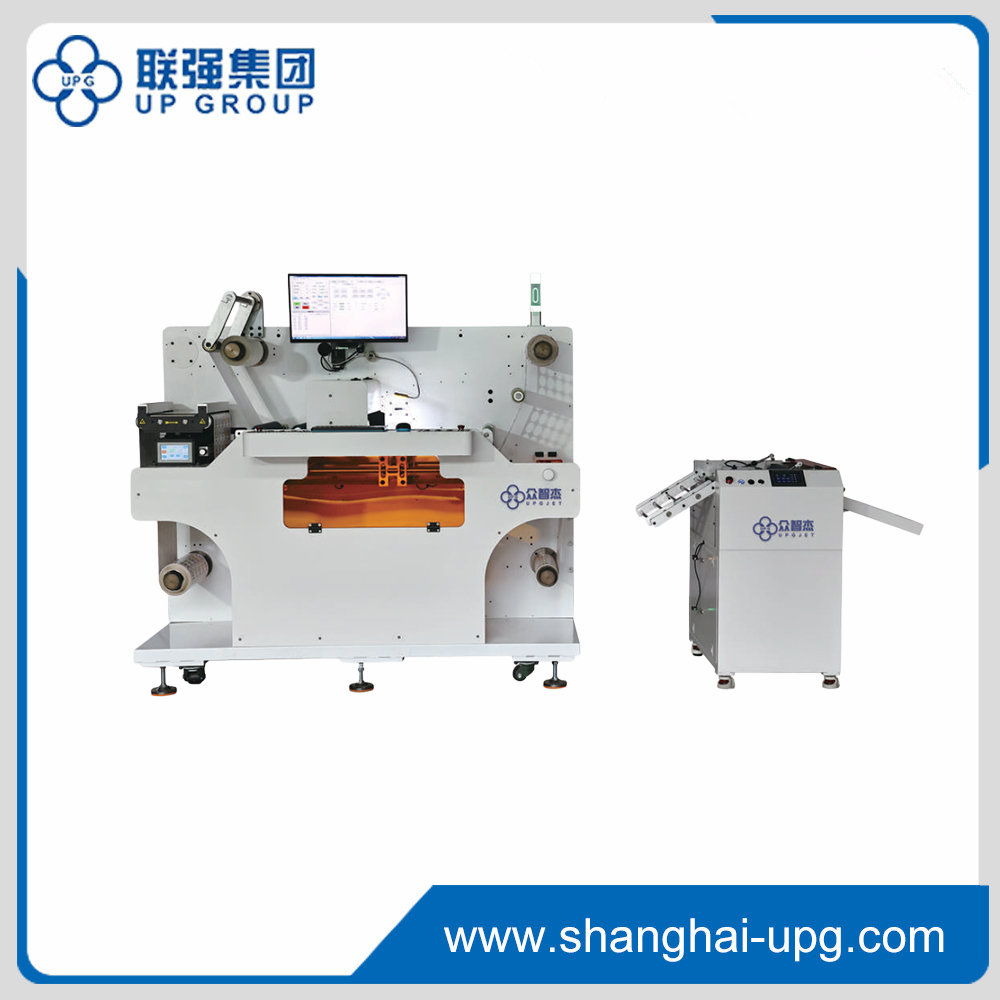

LQ-MD 330S
UPG
Features
1.The overall rigid weight of the equipment leads the peers, and the superior equipment has higher cutting accuracy, better stability and faster speed.
2.The high-precision ball screw splitting motor is not an ordinary nut motor in the same industry. It has the advantages of higher cutting accuracy and longer service life.
3.Adaptive tension buffer control mechanism, the tension is not affected by the width of the material, resulting in unilateral force, and our mechanism is more stable.
4.Modular design control system, easy maintenance and replacement, clear and stable circuit connection.
Features
1.The overall rigid weight of the equipment leads the peers, and the superior equipment has higher cutting accuracy, better stability and faster speed.
2.The high-precision ball screw splitting motor is not an ordinary nut motor in the same industry. It has the advantages of higher cutting accuracy and longer service life.
3.Adaptive tension buffer control mechanism, the tension is not affected by the width of the material, resulting in unilateral force, and our mechanism is more stable.
4.Modular design control system, easy maintenance and replacement, clear and stable circuit connection.
Model | LQ-MD 330 |
Material support width | 60-320mm |
Maximum cut label width | 320mm |
Cutting tag length range | 10-900mm |
Die cutting speed | 15m/min (specifically it is according to die track) |
Nunber of cutting heads | 4-10 |
Number of split knives | 6(selected according to demand) |
Die cutting progress | 0.lmm |
Split speed | 30m/min |
Split dimensions | 20-320mm |
Power | 2.6kw |
Machine size | 1600x1200x1800mm |
Machine weight | 1500kg |
Model | LQ-MD 330 |
Material support width | 60-320mm |
Maximum cut label width | 320mm |
Cutting tag length range | 10-900mm |
Die cutting speed | 15m/min (specifically it is according to die track) |
Nunber of cutting heads | 4-10 |
Number of split knives | 6(selected according to demand) |
Die cutting progress | 0.lmm |
Split speed | 30m/min |
Split dimensions | 20-320mm |
Power | 2.6kw |
Machine size | 1600x1200x1800mm |
Machine weight | 1500kg |
