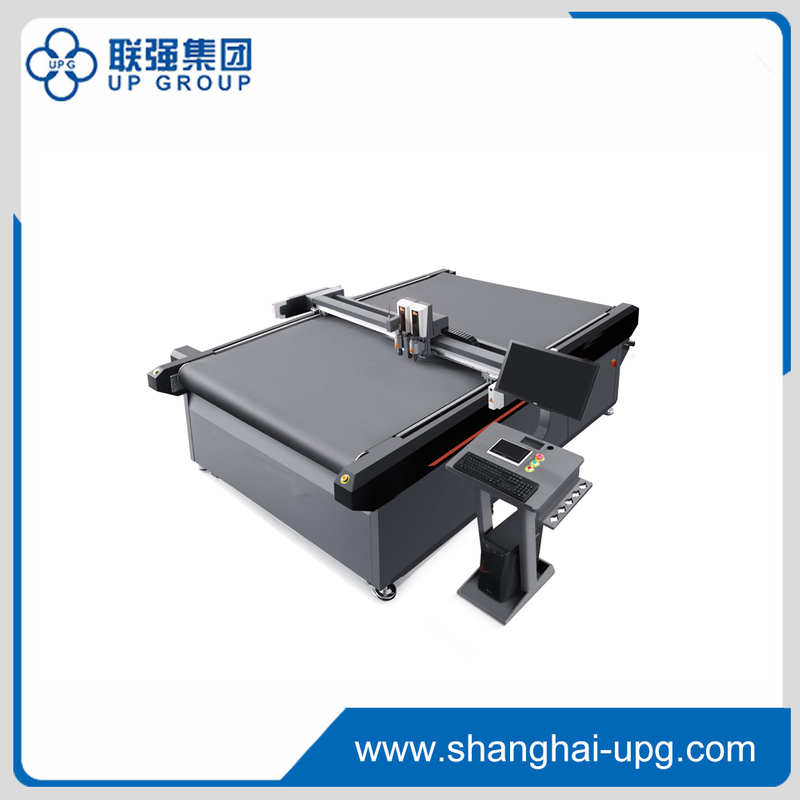

LQ-MD 2516 Digital Cutting Machine

Quantity:
  • LQ-MD 2516
  • UPG
  • LQ-MD 2516

This digital cutting machine work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose. Below are the samples that cut by this machine :


Phototype box, small mass production box (carton box, cardboard box, color box)
Cut contour in any shape for POS, POP
Cut rubber gasket, paper gasket
Cut floor mats
Cut vinyl sticker

· What material can we cut?
Corrugated board, Plastic corrugated board
Grey cardboard, ivory cardboard
KT board, PVC foam board, EVA board, Foam board, Magnetic material
Vinyl Sticker,  Reflecting material
Rubber gasket


· What is the tools equipped with?

Oscillating tools
Creasing wheel
Pen
Cursor position
Foam cut (for option)
Kiss cut (for option)
Drag blade (for option)
Router tool

· The advantages:
Conveyor table and static table for your option;
Camera position system, specially for cutting printed material;
High speed oscillating tool, cutting in high precision;

· Three standard cutting area for your option:
1300mm x 1000mm
1800mm x 1500mm
2500mm x 1600mm
Customized size is acceptable too

· What CAD software can work with our machine?
AutoCAD
AI
Coreldraw
Impack
Cimpack
Engview
Any CAD software with HPGL format.




Max.Cutting Speed1200mm/s
Max.Cutting Thickness50mm
Driving systemDigital Servo Motor, Straight Rail
Operate Panel7 inch color Touch Screen
InterfaceEthernet
Fixing methodVacuum Suction
PowerAC 380V ± 10%, 50HZ
